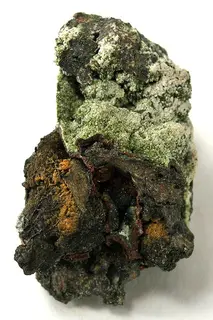

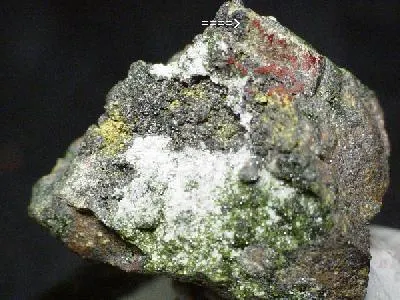

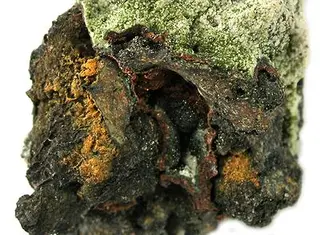

Jamesite

Pb2ZnFe3+2(Fe3+,Zn)4(AsO4)4(OH)8(OH,O)2
IMA status
  • Approved
IMA symbol
Jms
Discovered
1981
Also known as
  • IMA1978-079
  • Jamesiet

Where it forms, where it's found

Geological setting

Oxidized zone of lead ore.

Type locality
Tsumeb Mine (Ongopolo Mine)
  1. Tsumeb
  2. Oshikoto Region
  3. Namibia

-19.2270°, 17.7276°

4recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Reddish brown
Streak
Pale brown
Density
5.084 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 75° · 2V calc = 78°
Refractive index
1.96 – 2.02
Surface relief
Very high
Principal indices
nα 1.960 · nβ 1.995 · nγ 2.020
Pleochroism
Strong

X = Y = pale brown; Z = deep red-brown.

Dispersion
strong
Extinction
Y ∧ a ≃ 5° on (001); Y ∧ a = 15° on (010).
Michel-Lévy diagramhighlighted lineδ = 0.0600
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]600 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation600 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 5.62 Å · b = 9.59 Å · c = 10.27 Å
Cell angles
α = 109.8 ° · β = 90.54 ° · γ = 97.69 °
Ratio a:b:c
1 : 1.706 : 1.827
Z
1
Type-locality form

Tabular crystals, elongated a, up to 0.5 x 0.2 x 0.05 mm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2815.999447.972
24.43%
82PbLeadLead2207.200414.400
22.59%
26FeIronIron655.845335.070
18.27%
30ZnZincZinc565.380326.900
17.82%
33AsArsenicArsenic474.922299.688
16.34%
1HHydrogenHydrogen101.00810.080
0.55%
Total1834.110100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1978-079
  • Jamesiet

In other languages

German
IMA 1978-079 · Jamesit
Italian
Jamesite

Classification

Strunz
10th ed.

8.BK.25

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BKWith medium-sized and large cations, (OH, etc.):RO4 = 2:1, 2.5:1Group
  • 8.BK.25JamesiteSpecies
Dana
8th ed.

41.11.02.01

  • 41Anhydrous Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 41.11MiscellaneousType
  • 41.11.02— unnamed intermediate level —Group
  • 41.11.02.01JamesiteSpecies
CIM

20.5.15

  • 20Arsenates (also arsenates with phosphate, but without other anions)Class
  • 20.5Arsenates of Ti and PbGroup
  • 20.5.15JamesiteSpecies

Group, growth & confusion

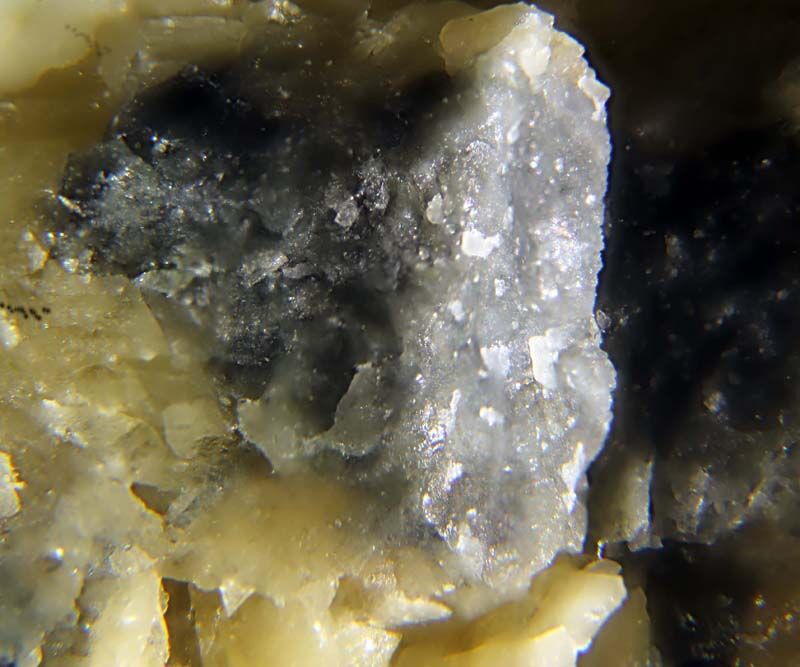

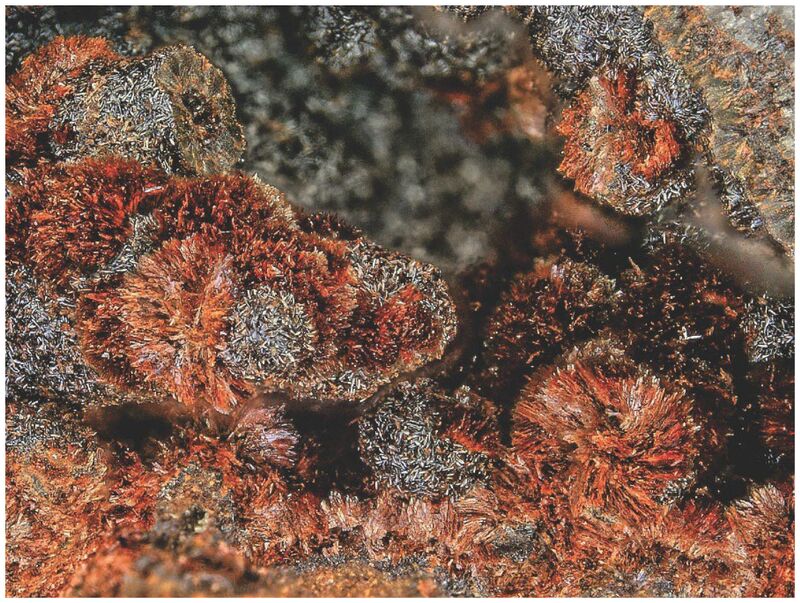

Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 1981Fleischer, Michael, Cabri, Louis J. (1981) New Mineral Names. American Mineralogist, 66 (11-12) 1274-1280
  2. 1981Keller, P., Hess, H., Dunn, P. J. (1981) Jamesite, Pb2Zn2Fe53+O4(AsO4)5, a new mineral from Tsumeb, Namibia. Chemie der Erde, 40. 105-109
  3. 1999Cooper, M.A., Hawthorne, F.C. (1999) Local Pb2+-[] disorder in the crystal structure of jamesite, Pb2ZnFe3+2(Fe3+2.8Zn1.2)(AsO4)4(OH)8[(OH)1.2O0.8], and revision of the chemical formula. The Canadian Mineralogist: 37: 53-60.
  4. 2000Jambor, J.L., Roberts, A.C. (2000) New mineral names. American Mineralogist, 85(1), 263-266.
  5. 2005(2005) Jamesite. Handbook of Mineralogy. Mineralogical Society of America
