Lulzacite

Sr2Fe2+3Al4(PO4)4(OH)10
IMA status
  • Approved
IMA symbol
Lul
Also known as
  • IMA1998-039
  • Lulzaciet

Where it forms, where it's found

Geological setting

In quartz veinlets, that occur at the contact between Ordovician quartzite and limestone.

Type locality
Bois-de-la-Roche quarry
  1. Saint-Aubin-des-Châteaux
  2. Châteaubriant-Ancenis
  3. Loire-Atlantique
  4. Pays de la Loire
  5. France

47.7150°, -1.4886°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Colour
Greyish-green
Cleavage
None Observed

None

Density
3.55 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 45 – 65° · 2V calc = 68°
Refractive index
1.654 – 1.684
Surface relief
High
Principal indices
nα 1.654 · nβ 1.674 · nγ 1.684
Pleochroism
Visible

brown-yellow to pale blue-violet

Dispersion
r < v distinct
Michel-Lévy diagramhighlighted lineδ = 0.0300
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]300 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation300 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 5.457 Å · b = 9.131 Å · c = 9.769 Å
Cell angles
α = 108.47 ° · β = 91.72 ° · γ = 97.44 °
Ratio a:b:c
1 : 1.673 : 1.790
Unit cell volume
456.5 ų
Z
1
Type-locality form

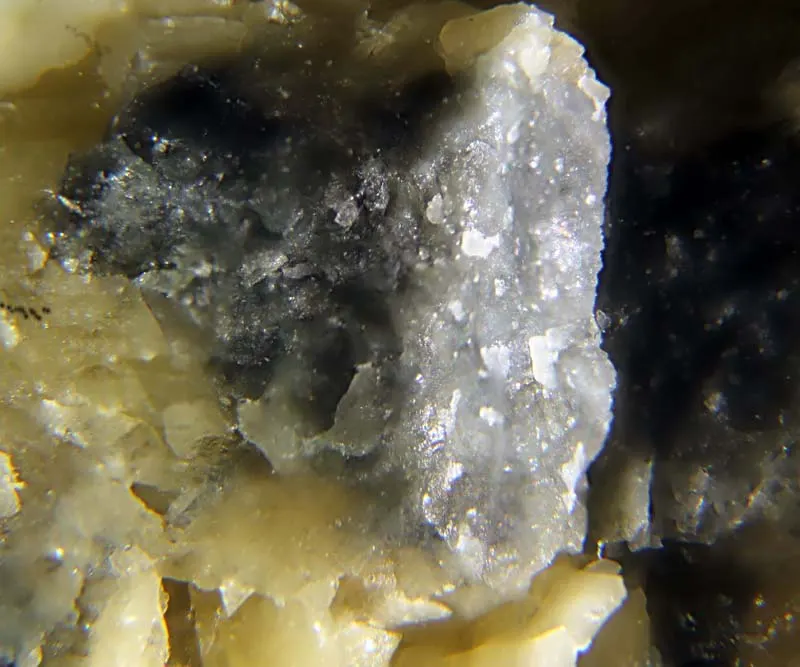

Grayish green aggregates up to several centimeters long. Grains are typically anhedral, rarely euhedral to 4 mm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2615.999415.974
41.57%
38SrStrontiumStrontium287.620175.240
17.51%
26FeIronIron355.845167.535
16.74%
15PPhosphorusPhosphorus430.974123.896
12.38%
13AlAluminiumAluminium426.982107.928
10.79%
1HHydrogenHydrogen101.00810.080
1.01%
Total1000.653100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1998-039
  • Lulzaciet

In other languages

French
lulzacite
German
Lulzacit
Italian
Lulzacite

Classification

Strunz
10th ed.

8.BK.25

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BKWith medium-sized and large cations, (OH, etc.):RO4 = 2:1, 2.5:1Group
  • 8.BK.25LulzaciteSpecies

Group, growth & confusion

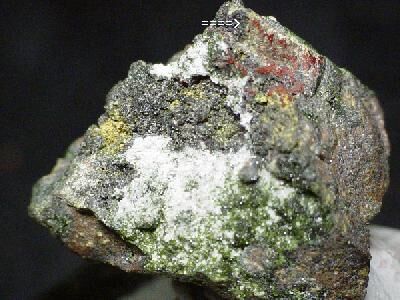

Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 2000Moëlo, Yves, Lasnier, Bernard, Palvadeau, Pierre, Léone, Philippe, Fontan, François (2000) La lulzacite, Sr2Fe2+(Fe2+,Mg)2Al4(PO4)4(OH)10, un nouveau phosphate de strontium (Saint-Aubin-des-Châteaux, Loire-Atlantique, France) Comptes Rendus de l'Académie des Sciences - Series IIA - Earth and Planetary Science, 330 (5) 317-324 doi:10.1016/s1251-8050(00)00152-xDOI: 10.1016/s1251-8050(00)00152-x
  2. 2000Leone, Philippe, Palvadeau, Pierre, Moëlo, Yves (2000) Structure cristalline d'un nouvel hydroxyphosphate naturel de strontium, fer et aluminium (lulzacite), Sr2Fe(Fe0,63Mg0,37)2Al4(PO4)4(OH)10. Comptes Rendus de l'Académie des Sciences - Series IIC - Chemistry, 3 (4) 301-308 doi:10.1016/s1387-1609(00)00117-1DOI: 10.1016/s1387-1609(00)00117-1
  3. 2014Frost, Ray L., López, Andrés, Belotti, Fernanda M., Xi, Yunfei, Scholz, Ricardo (2014) A vibrational spectroscopic study of the phosphate mineral lulzacite Sr2Fe2+(Fe2+,Mg)2Al4(PO4)4(OH)10. Spectrochimica Acta Part A: Molecular and Biomolecular Spectroscopy, 127. 243-247 doi:10.1016/j.saa.2014.02.041DOI: 10.1016/j.saa.2014.02.041
  4. 2021(2021) Lulzacite. Handbook of Mineralogy. Mineralogical Society of America
