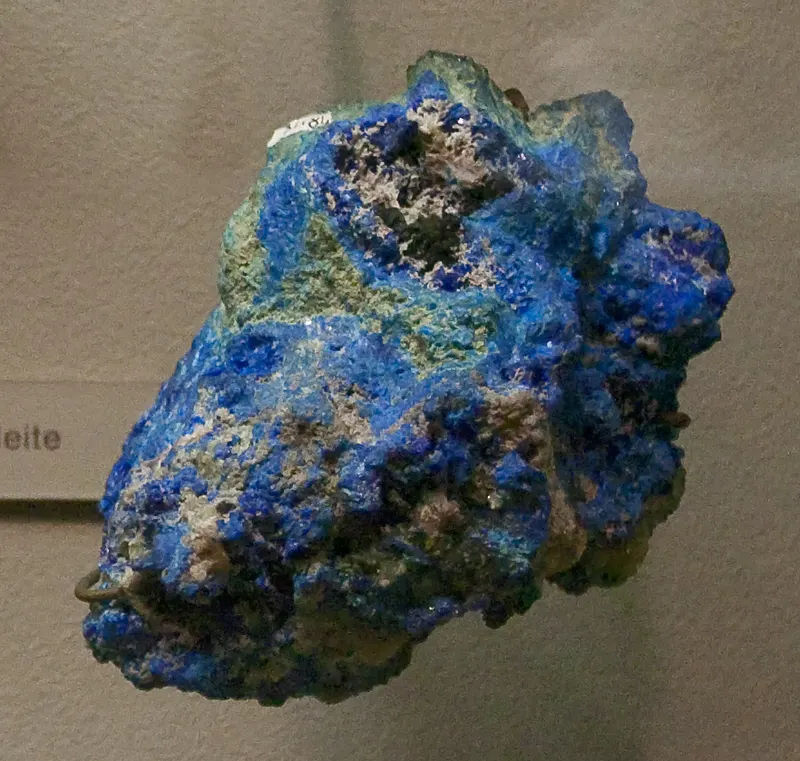

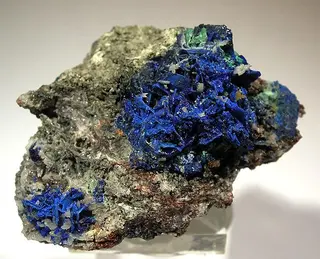

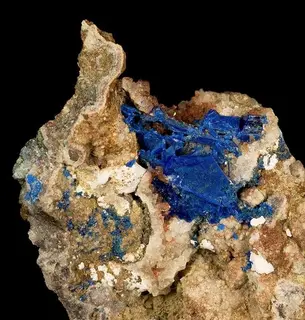

Diaboleite

CuPb2Cl2(OH)4
IMA status
  • Approved
  • Grandfathered
IMA symbol
Dbol
Discovered
1923
Also known as
  • Diaboleiet

Where it forms, where it's found

Geological setting

Oxidized iron and manganese ores.

Type locality
Higher Pitts Mine
  1. Priddy
  2. Mendip
  3. Somerset
  4. England
  5. UK

51.2387°, -2.6676°

55recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Adamantine
Transparency
Transparent
Colour
Blue
Streak
Blue
Tenacity
brittle
Cleavage
Perfect

On (001), not easy.

Fracture
Conchoidal
Density
5.41 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.85 – 1.98
Surface relief
Very high
Principal indices
nω 1.98 · nε 1.85
Michel-Lévy diagramhighlighted lineδ = 0.1300
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1300 nm3rd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1300 nm
Order3rd order
XPL colour

Crystallography

Crystal system
Tetragonal
Space group
#163
Cell parameters
a = 5.86 Å · c = 5.49 Å
Morphology

Crystals tabular (001), with a square outline. The crystals are hemimorphic; the large base is negative; the positive pedion is lacking or is very small with a somewhat curved surface. Subparallel groups of thin plates. Rarely tetragonal prisms.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead2207.200414.400
67.18%
17ClChlorineChlorine235.45070.900
11.49%
8OOxygenOxygen415.99963.996
10.38%
29CuCopperCopper163.54663.546
10.30%
1HHydrogenHydrogen41.0084.032
0.65%
Total616.874100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Diaboleiet

In other languages

French
diaboléite
German
Diaboleit
Spanish
Diaboleita
Italian
Diaboleite
Chinese
水氯鉛銅石 · 羟氯铜铅矿
Russian
Диаболеит · Диаболейт

Classification

Strunz
10th ed.

3.DB.05

  • 3HalidesClass
  • 3.DOxyhalides, hydroxyhalides and related double halidesDivision
  • 3.DBWith Pb, Cu, etc.Group
  • 3.DB.05DiaboleiteSpecies
Dana
8th ed.

10.06.01.01

  • 10Oxyhalides and HydroxyhalidesClass
  • 10.06AmBn(O,OH)pXqType
  • 10.06.01— unnamed intermediate level —Group
  • 10.06.01.01DiaboleiteSpecies
CIM

8.8.13

  • 8Halides - Fluorides, Chlorides, Bromides and Iodides; also Fluoborates and FluosilicatesClass
  • 8.8Halides of PbGroup
  • 8.8.13DiaboleiteSpecies

Group, growth & confusion

Often grow together
3 minerals

Literature, links & citation

Citations
  1. 1923Spencer, L. J. (1923) New lead-copper minerals from the Mendip Hills (Somerset) Mineralogical Magazine and Journal of the Mineralogical Society, 20 (102) 67-92 doi:10.1180/minmag.1923.020.102.01 DOI: 10.1180/minmag.1923.020.102.01
  2. 1924Wherry, E.T. (1924) New minerals: new species. American Mineralogist: 9: 96-97.
  3. 1941Palache, Charles (1941) Diaboleite from Mammoth Mine, Tiger, Arizona. American Mineralogist, 26 (10) 605-612
  4. 1950Bystrom, A., Wilhelmi, K.A. (1950) The crystal structure of diaboleite, Pb2Cu(OH)4Cl2. Arkiv för kemi: 2(4): 397-404.
  5. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
