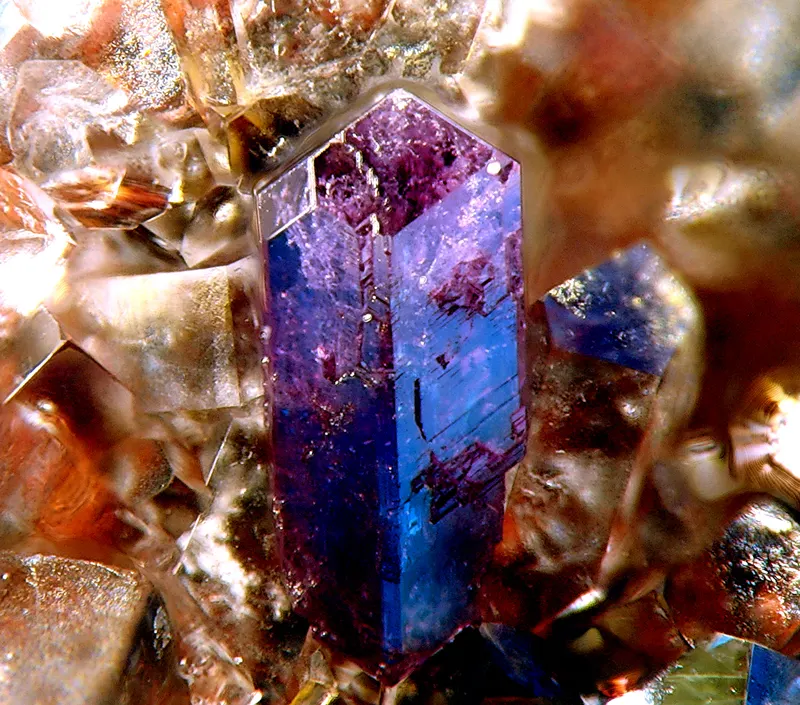

Yedlinite

Pb6Cr(Cl,OH)6(OH,O)8
IMA status
  • Approved
IMA symbol
Yed
IMA approved
1974
Also known as
  • IMA1974-001
  • Yedliniet

Where it forms, where it's found

Geological setting

oxidized polymatallic hydrothermal ore deposit

Type locality
Mammoth-Saint Anthony Mine
  1. St. Anthony deposit
  2. Tiger
  3. Mammoth Mining District
  4. Pinal County
  5. Arizona
  6. USA

32.7064°, -110.6831°

1recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Red-violet

may be zoned

Streak
White
Tenacity
sectile
Cleavage
Distinct/Good

(1120)

Fracture
Irregular/Uneven
Density
5.85 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
2.059 – 2.125
Surface relief
Very high
Principal indices
nω 2.125 · nε 2.059
Birefringence
0.066
UV response
Not fluorescent
Michel-Lévy diagramhighlighted lineδ = 0.0660
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]660 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation660 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#80
Cell parameters
a = 12.868(2) Å · c = 9.821(2) Å
Z
3
Morphology

dominant (1120) and (1101), (001),(1010) and (2021)

Type-locality form

Prismatic crystals up to one millimeter long.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead6207.2001243.200
66.34%
8OOxygenOxygen2215.999351.978
18.78%
17ClChlorineChlorine635.450212.700
11.35%
24CrChromiumChromium151.99651.996
2.78%
1HHydrogenHydrogen141.00814.112
0.75%
Total1873.986100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1974-001
  • Yedliniet

In other languages

German
IMA 1974-001 · Yedlinit
Spanish
Yedlinita
Italian
Yedlinite
Chinese
氯铅铬矿
Russian
Йедлинит

Classification

Strunz
10th ed.

3.DB.50

  • 3HalidesClass
  • 3.DOxyhalides, hydroxyhalides and related double halidesDivision
  • 3.DBWith Pb, Cu, etc.Group
  • 3.DB.50YedliniteSpecies
Dana
8th ed.

10.06.03.01

  • 10Oxyhalides and HydroxyhalidesClass
  • 10.06AmBn(O,OH)pXqType
  • 10.06.03— unnamed intermediate level —Group
  • 10.06.03.01YedliniteSpecies
CIM

8.8.20

  • 8Halides - Fluorides, Chlorides, Bromides and Iodides; also Fluoborates and FluosilicatesClass
  • 8.8Halides of PbGroup
  • 8.8.20YedliniteSpecies

Group, growth & confusion

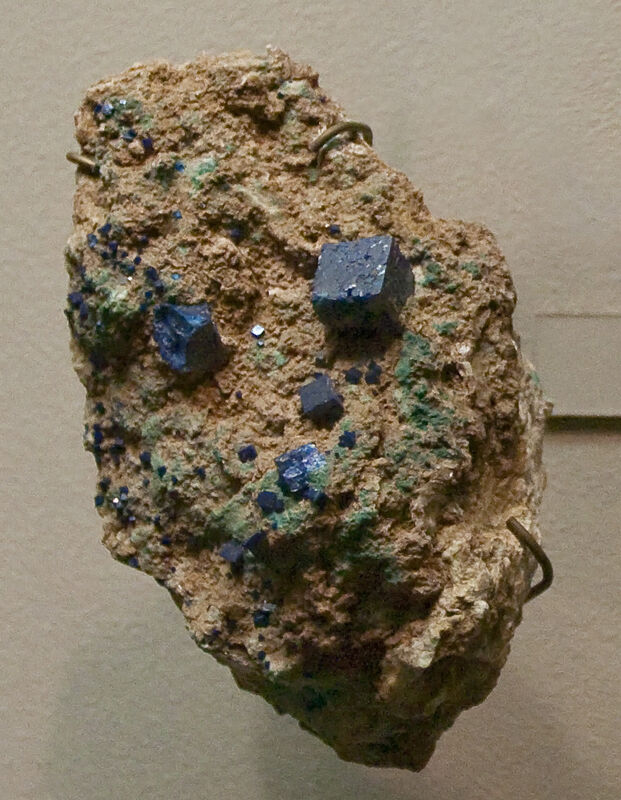

Often grow together
4 minerals

Literature, links & citation

Citations
  1. 1974McLean, W. John, Bideaux, Richard A., Thomssen, and Richard W. (1974) Yedlinite, a new mineral from the Mammoth Mine, Tiger, Arizona. American Mineralogist, 59 (11-12) 1157-1159
  2. 1974Wood, Michael M., McLean, W. John, Laughon, and Robert B. (1974) The crystal structure and composition of yedlinite. American Mineralogist, 59 (11-12) 1160-1165
  3. 2005(2005) Yedlinite. Handbook of Mineralogy. Mineralogical Society of America
  4. 2006McCarthy, A. (2006) Reexamination of yedlinite, Pb6(Cl,OH)6Cr3+(OH,O)8, using single-crystal X-ray diffraction and Raman spectroscopy, and redetermination of the chemical formula. International Mineralogical Association 19th General Meeting, Kobe, Japan, July 23-28, 2006; Conference Abstract Volume.
