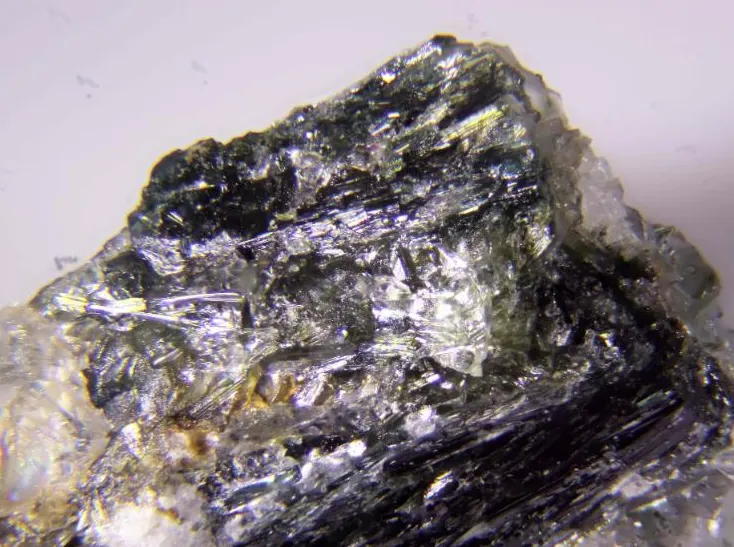

Eckermannite

NaNa2(Mg4Al)Si8O22(OH)2
IMA status
  • Approved
IMA symbol
Eck
Discovered
1942
Also known as
  • Eckermanniet
  • IMA2013-136

Where it forms, where it's found

Type locality
Hpakant-Tawmaw Jade Tract
  1. Hpakant Township (Hpakan
  2. Phakant
  3. Phakan)
  4. Mohnyin District
  5. Kachin State
  6. Myanmar
46recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Density
3.02 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
1.605 – 1.634
Surface relief
Moderate
Principal indices
nα 1.605 · nβ 1.630 · nγ 1.634
Dispersion
r < v moderate
Luminescence
Nonfluorescent
Michel-Lévy diagramhighlighted lineδ = 0.0290
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]290 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation290 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 9.8087(7) Å · b = 17.845(1) Å · c = 5.2905(4) Å
Cell angles
β = 103.660(1) °
Ratio a:b:c
1 : 1.819 : 0.539
Unit cell volume
899.8 ų
Z
2
Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2415.999383.976
47.77%
14SiSiliconSilicon828.085224.680
27.95%
12MgMagnesiumMagnesium424.30597.220
12.09%
11NaSodiumSodium322.99068.970
8.58%
13AlAluminiumAluminium126.98226.982
3.36%
1HHydrogenHydrogen21.0082.016
0.25%
Total803.844100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Eckermanniet
  • IMA2013-136

In other languages

German
Eckermannit · IMA 2013-136
Italian
eckermannite
Chinese
镁铝钠闪石

Classification

Strunz
10th ed.

9.DE.25

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DEInosilicates with 2-periodic double chains, Si4O11; ClinoamphibolesGroup
  • 9.DE.25EckermanniteSpecies
Dana
8th ed.

66.01.3c.06

  • 66Inosilicates Double-width, Unbranched Chains, (w=2)Class
  • 66.01Amphiboles - Mg-Fe-Mn-Li subgroupType
  • 66.01.3c— unnamed intermediate level —Group
  • 66.01.3c.06EckermanniteSpecies

Group, growth & confusion

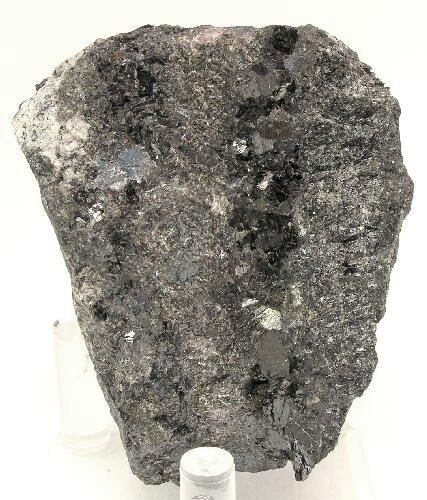

In the same group
3 members

Literature, links & citation

Citations
  1. 1942Adamson, Olge J. (1942) Eckermannite, a new alkali amphibole. Geologiska Föreningen i Stockholm Förhandlingar, 64 (3) 329-334 doi:10.1080/11035894209446082DOI: 10.1080/11035894209446082
  2. 1946Sundius, N. (1946) The composition of Eckermannite and its position in the amphibole group. Sveriges Geologiska Undersökning: Serie C 475.
  3. 1978Leake, Bernard E. (1978) Nomenclature of amphiboles. American Mineralogist, 63 (11-12) 1023-1052
  4. 1997Leake, B. E., Woolley, A. R., Arps, C. E. S., Birch, W. D., Gilbert, M. C., Grice, J. D., Hawthorne, F. C., Kato, A., Kisch, H. J., Krivovochev, V. G., Linthout, K., Laird, J., Mandarino, J. A., Maresch, W. V., Nickel, E.H., Rock, N. M. S., Schumacher, J. C., Smith, D. C., Stephenson, N. C. N., Ungaretti, L., Whittaker, E. J. W., Youzhi, Gou (1997) Nomenclature of amphiboles: report of the Subcommittee on Amphiboles of the International Mineralogical Association, Commission on New Minerals and Mineral Names. The Canadian Mineralogist, 35 (1) 219-246
  5. 2003Leake, B. E., Woolley, A. R., Birch, W. D., Burke, E. A.J., Ferraris, G., Grice, J. D., Hawthorne, F. C., Kisch, H. J., Krivovichev, V. G., Schumacher, J. C., Stephenson, N. C.N., Whittaker, E. J.W. (2003) Nomenclature of amphiboles: Additions and revisions to the International Mineralogical Association's 1997 recommendations. The Canadian Mineralogist, 41 (6) 1355-1362 doi:10.2113/gscanmin.41.6.1355 DOI: 10.2113/gscanmin.41.6.1355
