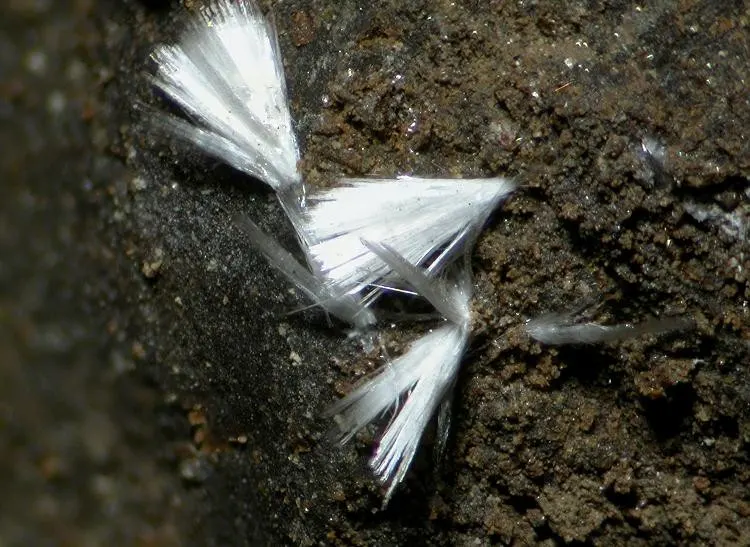

Ferrierite-Na

(Na,K)5(Si31Al5)O72 · 18H2O
IMA status
  • Approved
IMA symbol
Frr-Na
Also known as
  • Ferrieriet-Na

Where it forms, where it's found

Type locality
Altoona-Pillar Rock Road roadcuts
  1. Altoona
  2. Wahkiakum County
  3. Washington
  4. USA

46.2669°, -123.6550°

6recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103 – 3.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous · Silky

Optical

Optical type
Biaxial (+/-)
Refractive index
1.473 – 1.492
Surface relief
Low
Principal indices
nα 1.473 – 1.489 · nβ 1.474 – 1.489 · nγ 1.477 – 1.492
Dispersion
weak
Michel-Lévy diagramhighlighted lineδ = 0.0035
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]35 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation35 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 18.886(9) Å · b = 14.182(6) Å · c = 7.470(5) Å
Cell angles
β = 90.0(1) °
Ratio a:b:c
1 : 0.751 : 0.396
Comment

Space group P21/n; pseudo-orthorhombic. Data for specimen from Altoona, Washington.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen9015.9991439.910
51.57%
14SiSiliconSilicon3128.085870.635
31.18%
19KPotassiumPotassium539.098195.490
7.00%
13AlAluminiumAluminium526.982134.910
4.83%
11NaSodiumSodium522.990114.950
4.12%
1HHydrogenHydrogen361.00836.288
1.30%
Total2792.183100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Ferrieriet-Na

In other languages

German
Ferrierit-Na
Italian
ferrierite-Na
Chinese
钠碱沸石

Classification

Strunz
10th ed.

9.GD.50

  • 9SilicatesClass
  • 9.GTektosilicates with zeolitic H2O; zeolite familyDivision
  • 9.GDChains of 6-membered rings – tabular zeolitesGroup
  • 9.GD.50Ferrierite-NaSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 1969Wise, W. S., Nokleberg, W. J., Kokinos, M. (1969) Clinoptilolite and ferrierite from Agoura, California. American Mineralogist, 54 (5-6). 887-895
  2. 1985Gramlich-Meier, R., Gramlich, V., and Meier, W.M. (1985): The crystal structure of the monoclinic variety of ferrierite. American Mineralogist, 70, 619-623.
  3. 1997Coombs, Douglas S., Alberti, Alberto, Armbruster, Thomas, Artioli, Gilberto, Colella, Carmine, Galli, Ermanno, Grice, Joel D., Liebau, Friedrich, Mandarino, Joseph A., Minato, Hideo, et al. (1997) Recommended nomenclature for zeolite minerals; report of the Subcommittee on Zeolites of the International Mineralogical Association, Commission on New Minerals and Mineral Names. The Canadian Mineralogist, 35 (6). 1571-1606
  4. 2001(2001) Ferrierite-Na. Handbook of Mineralogy. Mineralogical Society of America
