Fluorellestadite

Ca5(SiO4)1.5(SO4)1.5F
IMA status
  • Approved
IMA symbol
Fel
Discovered
1982
IMA approved
1987
Also known as
  • Ellestadite-(F)
  • Fluorellestadiet
  • IMA1987-002
  • +2 more

Where it forms, where it's found

Geological setting

In burned fragments of petrified wood in coal dumps

Type locality
Crestmore quarries
  1. Crestmore
  2. Jurupa Valley
  3. Riverside County
  4. California
  5. USA

34.0248°, -117.3836°

37recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent

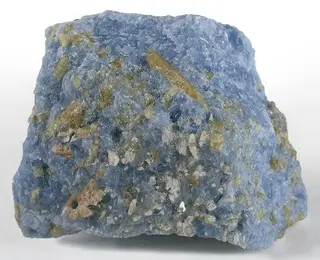

Colour
Blue to pale bluish · light rose-red · yellow

At the TL thin needles are colorless

Streak
White streak with a weak bluish tint
Tenacity
very brittle
Cleavage
Imperfect/Fair

On (0001), imperfect.

Fracture
Conchoidal
Density
3.03 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.65 – 1.655
Surface relief
High
Principal indices
nω 1.655 · nε 1.650
Birefringence
0.005
Extinction
Parallel
UV response
No luminescence in ultraviolet light (360 nm)
Michel-Lévy diagramhighlighted lineδ = 0.0050
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]50 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation50 nm
Order1st order
XPL colour

Crystallography

Crystal system
Hexagonal
Space group
#108
Cell parameters
a = 9.53 Å · c = 6.91 Å

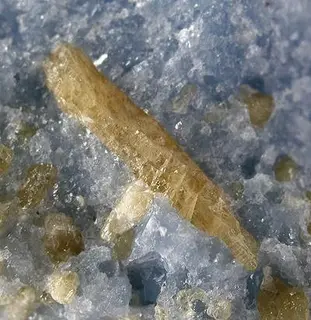

Morphology

Needles, as hexagonal prismatic, poorly terminated crystals up to 3 mm long, and as fine-grained aggregates.

Type-locality form

Needles, as hexagonal prismatic, poorly terminated crystals up to 3 mm long, and as fine-grained aggregates.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
20CaCalciumCalcium540.078200.390
39.95%
8OOxygenOxygen1215.999191.988
38.27%
16SSulfurSulfur1.532.06048.090
9.59%
14SiSiliconSilicon1.528.08542.127
8.40%
9FFluorineFluorine118.99818.998
3.79%
Total501.594100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Al
  • Fe
  • Mn
  • Mg
  • Na
  • K

Synonyms

  • Ellestadite-(F)
  • Fluorellestadiet
  • IMA1987-002
  • Wilkeit
  • Wilkeita

In other languages

French
fluorellestadite
German
Fluorellestadit · IMA 1987-002
Italian
Fluorellestadite
Portuguese
Fluorellestadita · IMA1987-002
Chinese
氟硅磷灰石

Classification

Strunz
10th ed.

9.AH.25

  • 9SilicatesClass
  • 9.ANesosilicatesDivision
  • 9.AHNesosilicates with CO3, SO4, PO4, etc.Group
  • 9.AH.25FluorellestaditeSpecies
Dana
8th ed.

52.04.09.03

  • 52Nesosilicates Insular Sio4 Groups and O, Oh, F, H2oClass
  • 52.04Insular SiO4 Groups and O, OH, F, and H2O with cations in [6] and/or >[6] coordinationType
  • 52.04.09Silicate apatitesGroup
  • 52.04.09.03FluorellestaditeSpecies
CIM

17.10.22

  • 17Silicates Containing other AnionsClass
  • 17.10Silicates with sulphate, molybdate or tungstateGroup
  • 17.10.22FluorellestaditeSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 1914Eakle, A.S., Rogers, A.F. (1914) Wilkeite, a new mineral of the apatite group, and okenite, its alteration product, from southern California. American Journal of Science, 4th. Series: 37: 262-267. (as Wilkeite)
  2. 1937McConnell, Duncan (1937) The substitution of SiO4- and SO4-groups for PO4-groups in the apatite structure; ellestadite, the end-member. American Mineralogist, 22 (9). 977-986
  3. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
  4. 1987Chesnokov, B. V., Bazhenova, L. F, Bushmakin, A. F. (1987) Fluorellestadite Ca10[(SO4),(SiO4)]6F2—a new mineral. Zapiski Vsesoyuznogo Mineralogicheskogo Obshchestva: 116 (6): 743-746
  5. 1989Jambor, John L., Puziewicz, Jacek (1989) New Mineral Names. American Mineralogist, 74 (3-4) 500-504
