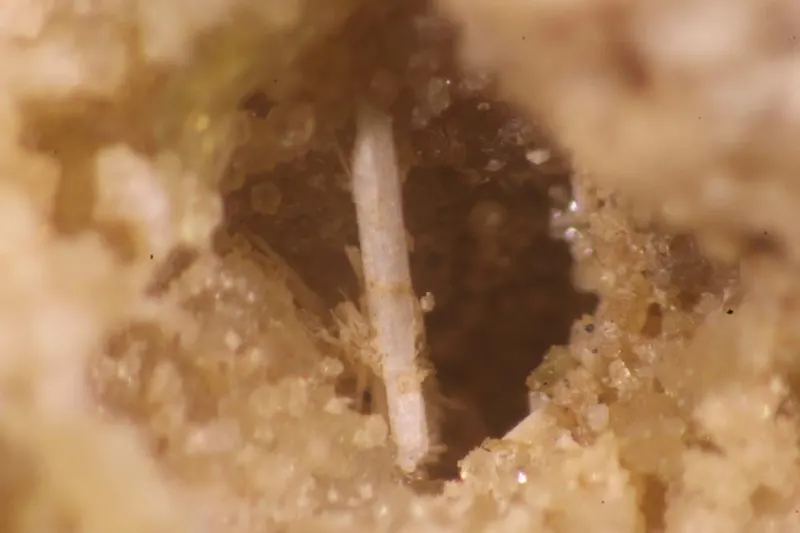

Franzinite

(Na,K)30Ca10(Si30Al30)O120(SO4)10 · 2H2O
IMA status
  • Approved
IMA symbol
Frz
Discovered
1976
IMA approved
1976
Also known as
  • Franziniet
  • IMA1976-020

Where it forms, where it's found

Type locality
Case Collina
  1. Pitigliano
  2. Grosseto Province
  3. Tuscany
  4. Italy

42.6425°, 11.7303°

7recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent · Opaque
Colour
Colourless · pearl white
Streak
White
Cleavage
Distinct/Good

(0001)

Density
2.46 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.51 – 1.512
Surface relief
Moderate
Principal indices
nω 1.510 · nε 1.512
Michel-Lévy diagramhighlighted lineδ = 0.0020
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]20 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation20 nm
Order1st order
XPL colour

Crystallography

Crystal system
Hexagonal
Cell parameters
a = 12.88 Å · c = 26.58 Å
Comment

Point Group: _3 2/m; 3m; or 32:; Space Group: P_3m1; P3m1; P31m; or P321

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen16215.9992591.838
37.94%
19KPotassiumPotassium3039.0981172.940
17.17%
14SiSiliconSilicon3028.085842.550
12.33%
13AlAluminiumAluminium3026.982809.460
11.85%
11NaSodiumSodium3022.990689.700
10.09%
20CaCalciumCalcium1040.078400.780
5.87%
16SSulfurSulfur1032.060320.600
4.69%
1HHydrogenHydrogen41.0084.032
0.06%
Total6831.900100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Mg
  • K

Synonyms

  • Franziniet
  • IMA1976-020

In other languages

German
Franzinit · IMA 1976-020
Italian
Franzinite
Chinese
弗钙霞石

Classification

Strunz
10th ed.

9.FB.05

  • 9SilicatesClass
  • 9.FTektosilicates without zeolitic H2ODivision
  • 9.FBTektosilicates with additional anionsGroup
  • 9.FB.05FranziniteSpecies
Dana
8th ed.

76.02.05.06

  • 76Tectosilicates Al-si FrameworkClass
  • 76.02Al-Si Framework Feldspathoids and related speciesType
  • 76.02.05Cancrinite groupGroup
  • 76.02.05.06FranziniteSpecies
CIM

17.10.13

  • 17Silicates Containing other AnionsClass
  • 17.10Silicates with sulphate, molybdate or tungstateGroup
  • 17.10.13FranziniteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1977Fleischer, Michael, Cabri, Louis J., Pabst, and Adolf (1977) New mineral names. American Mineralogist, 62 (11-12) 1259-1262
  2. 1977Merlino, S. and Orlandi, P. (1977) Franzinite, a new mineral phase from Pitigliano (Italy). Neues Jahrbuch für Mineralogie, Monatshefte: 1977: 163-167.
  3. 1979Leoni, L., Mellini, M., Merlino, S., and Orlandi, P. (1979) Cancrinite-like minerals: new data and crystal chemical considerations. Rendiconti della Società Italiana di Mineralogia e Petrologia: 35: 713-719.
  4. 1979Rinaldi, R., Wenk, H. R. (1979) Stacking variations in cancrinite minerals. Acta Crystallographica Section A: Crystal Physics, Diffraction, Theoretical and General Crystallography, 35 (5). 825-828 doi:10.1107/s0567739479001868DOI: 10.1107/s0567739479001868
  5. 1984Hassan, I., Grundy, H. D. (1984) The crystal structures of sodalite-group minerals. Acta Crystallographica Section B Structural Science, 40 (1) 6-13 doi:10.1107/s0108768184001683DOI: 10.1107/s0108768184001683
