Fredrikssonite

Mg2Mn3+O2(BO3)
IMA status
  • Approved
IMA symbol
Fdk
Discovered
1983
IMA approved
1983
Also known as
  • Fredrikssoniet
  • IMA1983-040

Where it forms, where it's found

Geological setting

Equigranular metamorphic rock consisting of manganoan calcite and hausmannite.

Type locality
Långban Mine
  1. Långban Ore District
  2. Filipstad
  3. Värmland County
  4. Sweden

59.8554°, 14.2648°

4recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent · Opaque
Colour
Reddish-brown
Streak
Pale brown to yellow
Tenacity
brittle
Cleavage
Poor/Indistinct

One, poor, and a second, very poor

Fracture
Irregular/Uneven
Density
3.84 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 51° · 2V calc = 62°
Refractive index
1.82 – 1.99
Surface relief
Very high
Principal indices
nα 1.82 · nβ 1.86 · nγ 1.99
Pleochroism
Strong

Pronounced; X = golden brown; Z = dark reddish brown to black.

Dispersion
r > v, strong.
Extinction
Z = elongation of cleavage fragments = c (by analogy to ludwigite).
Notes

Absorption: Z > X.

Michel-Lévy diagramhighlighted lineδ = 0.1700
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1700 nm4th order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1700 nm
Order4th order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
Pbam
Cell parameters
a = 9.18 Å · b = 12.55 Å · c = 2.95 Å
Ratio a:b:c
1 : 1.367 : 0.321
Z
4
Morphology

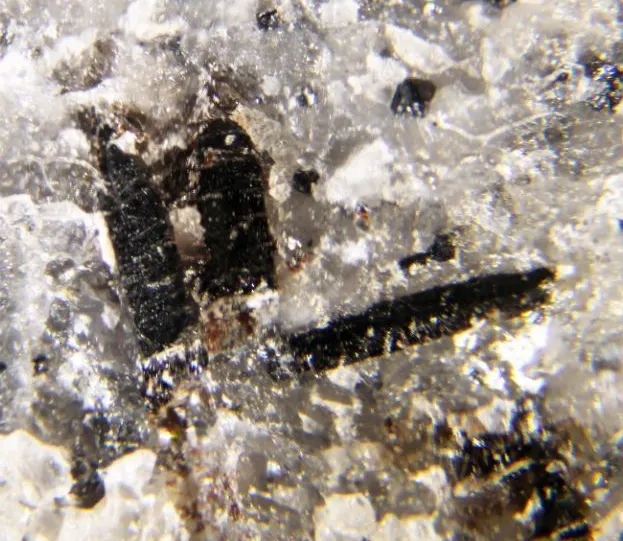

Crystals are elongated on [001], with a diamond-shaped cross-section. Aggregates are composed of crystals in a sub-parallel orientation and also randomly oriented crystals in radiating clusters.

Type-locality form

Crystals are elongated on [001], with a diamond-shaped cross-section, to 0.1 x 2.0 mm in size. They form aggregates in a sub-parallel orientation. Also randomly oriented in radiating clusters of 1-2 mm crystals. The transparency seems is an indicator of this species vs its polymorphs.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen515.99979.995
41.16%
25MnManganeseManganese154.93854.938
28.27%
12MgMagnesiumMagnesium224.30548.610
25.01%
5BBoronBoron110.81010.810
5.56%
Total194.353100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Fredrikssoniet
  • IMA1983-040

In other languages

German
Fredrikssonit · IMA 1983-040
Italian
Fredrikssonite
Chinese
弗硼锰镁石

Classification

Strunz
10th ed.

6.AB.30

  • 6BoratesClass
  • 6.AMonoboratesDivision
  • 6.ABBO3, with additional anions; 1(D) + OH, etc.Group
  • 6.AB.30FredrikssoniteSpecies
Dana
8th ed.

24.02.01.06

  • 24Anhydrous BoratesClass
  • 24.02A2BO2[XO3]Type
  • 24.02.01Ludwigite Group (Space Group: Pbam)Group
  • 24.02.01.06FredrikssoniteSpecies
CIM

9.8.3

  • 9BoratesClass
  • 9.8Borates of FeGroup
  • 9.8.3FredrikssoniteSpecies

Group, growth & confusion

In the same group
6 members

Literature, links & citation

Citations
  1. 1983Dunn, Pete J., Peacor, Donald R., Simmons, William B., Newbury, Dale (1983) Fredrikssonite, a new member of the pinakiolite group, from Långban, Sweden. Geologiska Föreningen i Stockholm Förhandlingar, 105 (4) 335-340 doi:10.1080/11035898309454571DOI: 10.1080/11035898309454571
  2. 1986Dunn, Pete J., Chao, George Y., Fitzpatrick, Joan J., Langley, Richard H., Fleischer, Michael, Zilczer, Janet A. (1986) New Mineral Names. American Mineralogist, 71 (1-2). 227-232
  3. 1994Burns, P.C., Cooper, M.A., Hawthorne, F.C. (1994) Jahn–Teller-distorted Mn3+O6 octahedra in fredrikssonite, the fourth polymorph of Mg2Mn3+(BO3)O2. The Canadian Mineralogist 32, 397-403.
  4. 1996Grew, Edward S.; Anovitz, Lawrence M. - Eds. (1996) Boron - Mineralogy, Petrology and Geochemistry. Reviews in Mineralogy Vol. 33. Mineralogical Society of America p.862
  5. 1998Cooper, M.A, Hawthorne, F.C. (1998) The crystal structure of blatterite, Sb5+3(Mn3+,Fe3+)9(Mn2+,Mg)35(BO3)16O32, and structural hierarchy in Mn3+-bearing zigzag borates. The Canadian Mineralogist, 36 (5). 1171-1193
