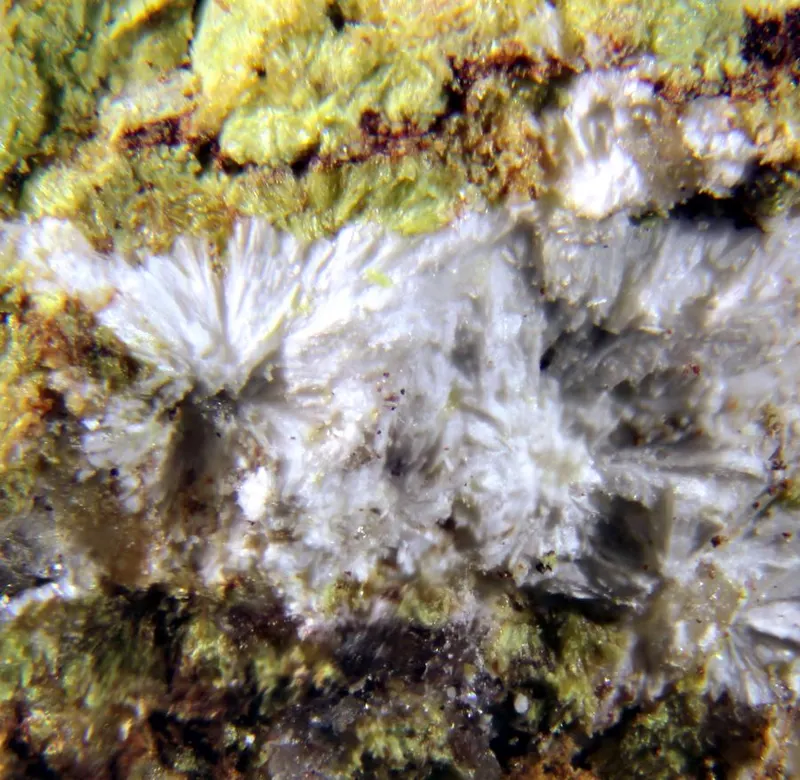

Gaitite

Ca2Zn(AsO4)2 · 2H2O
IMA status
  • Approved
IMA symbol
Gt
Discovered
1978
IMA approved
1978
Also known as
  • Gaitiet
  • IMA1978-047

Where it forms, where it's found

Type locality
Tsumeb Mine (Ongopolo Mine)
  1. Tsumeb
  2. Oshikoto Region
  3. Namibia

-19.2270°, 17.7276°

7recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
White to colorless
Streak
White
Cleavage
Distinct/Good

(010), (001), and (011), probable, equally good.

Density
3.81 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 88° · 2V calc = 90°
Refractive index
1.713 – 1.748
Surface relief
High
Principal indices
nα 1.713 · nβ 1.73 · nγ 1.748
Dispersion
weak
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.0350
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]350 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation350 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 5.9 Å · b = 7.61 Å · c = 5.57 Å
Cell angles
α = 111.67 ° · β = 70.83 ° · γ = 119.42 °
Ratio a:b:c
1 : 1.290 : 0.944
Z
1
Type-locality form

Polycrystalline coatings; only a few small crystals were found, with the largest dimension of about 1 mm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1015.999159.990
34.82%
33AsArsenicArsenic274.922149.844
32.62%
20CaCalciumCalcium240.07880.156
17.45%
30ZnZincZinc165.38065.380
14.23%
1HHydrogenHydrogen41.0084.032
0.88%
Total459.402100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Gaitiet
  • IMA1978-047

In other languages

German
Gaitit · IMA 1978-047
Spanish
Gaitita
Italian
Gaitite
Chinese
羟砷锌钙石

Classification

Strunz
10th ed.

8.CG.05

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CGWith large and medium-sized cations, RO4:H2O = 1:1Group
  • 8.CG.05GaititeSpecies
Dana
8th ed.

40.02.02.06

  • 40Hydrated Normal Phosphates, Arsenates and VanadatesClass
  • 40.02AB2(XO4)2·xH2OType
  • 40.02.02Fairfieldite Subgroup (Triclinic: P-1¯)Group
  • 40.02.02.06GaititeSpecies
CIM

20.3.11

  • 20Arsenates (also arsenates with phosphate, but without other anions)Class
  • 20.3Arsenates of Zn, Cd or HgGroup
  • 20.3.11GaititeSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1980Sturman, B. Darko, Dunn, Pete J. (1980) Gaitite, H2Ca2Zn(AsO4)2(OH)2, a new mineral from Tsumeb, Namibia. The Canadian Mineralogist, 18 (2) 197-200
  2. 1981Keller, P., Hess, H., Riffel, H. (1981) Die Kristallstruktur von zwei neuen Calcium-Zink-Arsenat-Mineralien von Tsumeb/Namibia. Zeitschrift für Krystallographie und Mineralogie 156, 70-71 (in German).
  3. 2013(2013) Gaitite. Handbook of Mineralogy. Mineralogical Society of America
  4. 2024Biagioni, C., Mugnaioli, E., Lorenzon, S., Mauro, D., Musetti, S., Sejkora, J., Belmonte, D., Demitri, N., Dolníček, Z. (2024) Nannoniite, IMA 2024-010, in IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) – Newsletter 80. European Journal of Mineralogy, 36 (4). 599-604 doi:10.5194/ejm-36-599-2024DOI: 10.5194/ejm-36-599-2024
