Genthelvite

Be3Zn4(SiO4)3S
IMA status
  • Approved
  • Grandfathered
IMA symbol
Ghv
Discovered
1944
Also known as
  • Genthelviet
  • Genthelvit

Where it forms, where it's found

Geological setting

Found in granite and syenite pegmatites

In miarolitic cavities in granitic pegmatites; accessory mineral in alkaline granites and syenites, greisens, and skarns.

Type locality
West Cheyenne Canyon
  1. Cheyenne Mining District (St. Peters Dome Mining District)
  2. El Paso County
  3. Colorado
  4. USA
69recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789106 – 6.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colourless · white · yellow · green · pink to red · darkens to brown and black on weathering
Tenacity
brittle
Cleavage
Poor/Indistinct

on (111) and (111)

Fracture
Irregular/Uneven
Density
3.44 g/cm³

Optical

Optical type
Isotropic
Refractive index
1.738 – 1.752
Surface relief
High
Principal indices
nα 1.738 – 1.752
UV response
Strong green fluorescence in long- and short-wave ultraviolet; short-lived phosphorescence.
Isotropy testPPL ↔ XPL diagnostic
PPL intrinsic colour; no change on stage rotation
XPL extinct at every orientation

Crystallography

Crystal system
Isometric
Space group
#212
Cell parameters
a = 8.12(2) Å
Z
2
Morphology

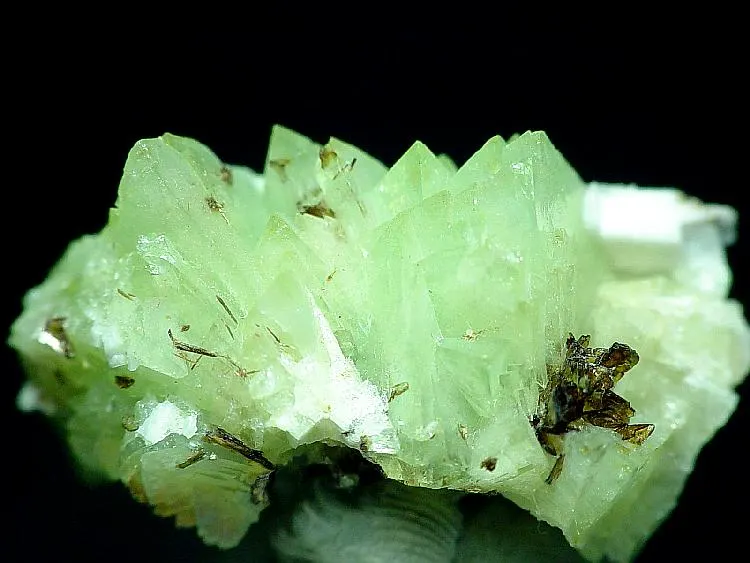

Crystals commonly tetrahedral and tristetrahedra, up to 5 cm in diameter; also as large rounded grains to 25cm

Epitaxy

Genthelvite on danalite cores from Cheyenne Canyon, Colorado (Zito and Hanson, 2017).

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
30ZnZincZinc465.380261.520
43.81%
8OOxygenOxygen1215.999191.988
32.17%
14SiSiliconSilicon328.08584.255
14.12%
16SSulfurSulfur132.06032.060
5.37%
4BeBerylliumBeryllium39.01227.036
4.53%
Total596.859100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Al
  • Fe
  • Mn
  • Cu

Synonyms

  • Genthelviet
  • Genthelvit

In other languages

German
Genthelvin
Italian
Genthelvite

Classification

Strunz
10th ed.

9.FB.10

  • 9SilicatesClass
  • 9.FTektosilicates without zeolitic H2ODivision
  • 9.FBTektosilicates with additional anionsGroup
  • 9.FB.10GenthelviteSpecies
Dana
8th ed.

76.02.04.03

  • 76Tectosilicates Al-si FrameworkClass
  • 76.02Al-Si Framework Feldspathoids and related speciesType
  • 76.02.04Helvite groupGroup
  • 76.02.04.03GenthelviteSpecies
CIM

17.9.3

  • 17Silicates Containing other AnionsClass
  • 17.9Silicates with sulphide or sulphiteGroup
  • 17.9.3GenthelviteSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 1892Genth, F.A. (1892) Contributions to mineralogy; No. 54. American Journal of Science: 44: 385.
  2. 1944Glass, Jewell J., Jahns, Richard H., Stevens, and Rollin E (1944) Helvite and danalite from New Mexico and the helvite group. American Mineralogist, 29 (5-6) 163-191
  3. 1953Glass, Jewell J., Adams, John W. (1953) Notes and news: Genthelvite crystal from El Paso County, Colorado. American Mineralogist, 38 (9-10) 858-859
  4. 1957Scott, Glenn R. (1957) Genthelvite from Cookstove Mountain, El Paso County, Colorado. American Mineralogist, 42 (5-6) 425-429
  5. 1957Eskova, E.M. (1957) Genthelvite from alkaline pegmatites. Doklady Akademii Nauk SSSR: 116(3): 481-483.
