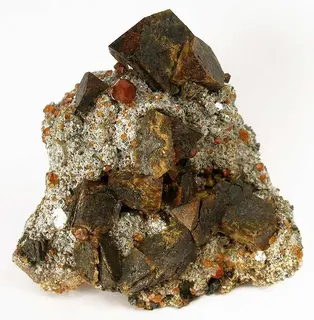

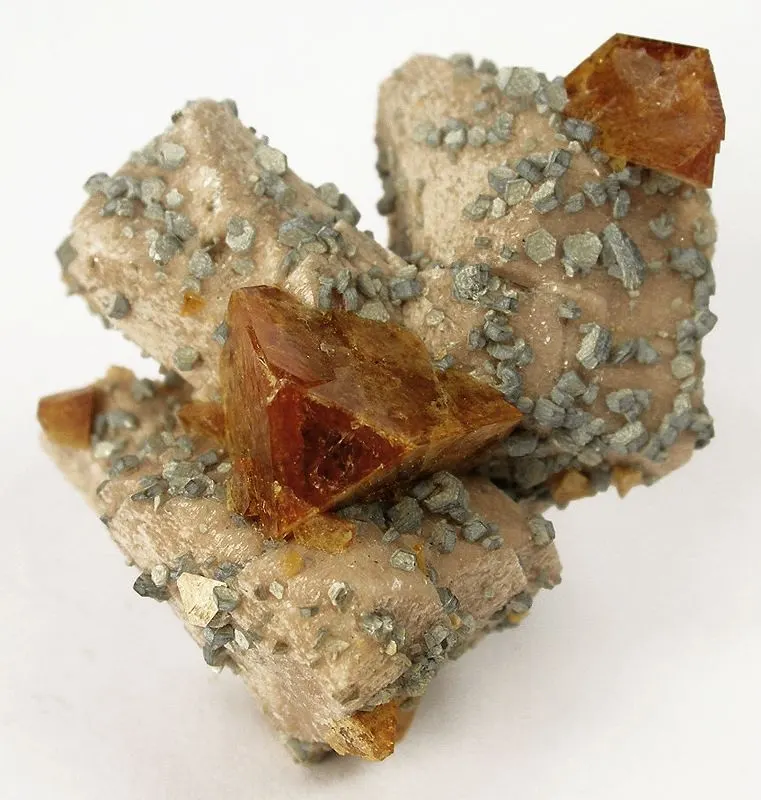

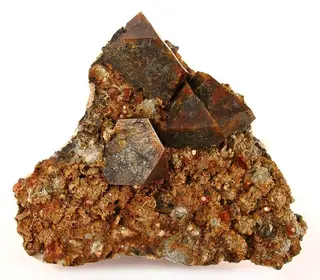

Helvine

Be3Mn2+4(SiO4)3S
IMA status
  • Approved
  • Grandfathered
IMA symbol
Hlv
Discovered
1804
Also known as

Where it forms, where it's found

Geological setting

Granites, pegmatites, gneisses, contact zones, skarns.

Type locality
St. Richard Mine
  1. Breitenbrunn
  2. Breitenbrunn
  3. Erzgebirgskreis
  4. Saxony
  5. Germany

50.4743°, 12.7896°

241recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789106 – 6.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Golden yellow · brown · red · gray-yellow · yellow-green
Streak
White
Tenacity
brittle
Cleavage
Distinct/Good

Distinct on (111) (111)

Fracture
Irregular/Uneven · Conchoidal
Density
3.2 g/cm³

Optical

Optical type
Isotropic
Surface relief
High
Principal indices
n 1.728 – 1.749
Isotropy testPPL ↔ XPL diagnostic
PPL intrinsic colour; no change on stage rotation
XPL extinct at every orientation
Single index
n = 1.739

Crystallography

Crystal system
Isometric
Space group
#212
Cell parameters
a = 8.29 Å
Z
2
Morphology

Tetrahedra, dodecahedra, octahedra

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
25MnManganeseManganese454.938219.752
39.59%
8OOxygenOxygen1215.999191.988
34.59%
14SiSiliconSilicon328.08584.255
15.18%
16SSulfurSulfur132.06032.060
5.77%
4BeBerylliumBeryllium39.01227.036
4.87%
Total555.091100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Al
  • Fe
  • Zn
  • Ca

Synonyms

  • Helvien
  • Helvit
  • Helvita
  • Moonlight Garnet
  • Tetrahedral Garnet

In other languages

French
Helvite
German
Helvin
Spanish
helvina
Italian
Helvine · Helvite
Russian
Гельвин

Classification

Strunz
10th ed.

9.FB.10

  • 9SilicatesClass
  • 9.FTektosilicates without zeolitic H2ODivision
  • 9.FBTektosilicates with additional anionsGroup
  • 9.FB.10HelvineSpecies
Dana
8th ed.

76.02.04.01

  • 76Tectosilicates Al-si FrameworkClass
  • 76.02Al-Si Framework Feldspathoids and related speciesType
  • 76.02.04Helvite groupGroup
  • 76.02.04.01HelvineSpecies
CIM

17.9.4

  • 17Silicates Containing other AnionsClass
  • 17.9Silicates with sulphide or sulphiteGroup
  • 17.9.4HelvineSpecies

Group, growth & confusion

In the same group
3 members
Often grow together
2 minerals

Literature, links & citation

Citations
  1. Freyberg, Craz & Gerlach, p. 126-129.
  2. 1804Mohs, F. (1804) Des Herrn JAC. FRIED. VON DER NULL Mineralienkabinett, nach einem, durchaus auf äussere Kennzeichen gegründeten Systeme geordnet, beschrieben, und durch Hinzuthuung vieler, dem gegenwärtigen Zustande der Mineralogie angemessener, erläuternder Anmerkungen und nöthiger Berichtigungen, als Handbuch der Oryctognosie brauchbar gemacht. Wien. Vol. 1, p. 92-93.
  3. 1817Freiesleben, J.C. (1817): Helvin.- Geognostische Arbeiten, Band 6.
  4. 1817Werner, Abraham Gottlob (1817) Letztes Mineral-System - Aus dessen Nachlasse auf oberbergamtliche Anordnung herausgegeben und mit Erläuterungen versehen.
  5. 1882Lewis, H.C. (1882) An American Locality for Helvite. Proceedings of the Academy of Natural Sciences of Philadelphia: 100-102.
