Giessenite

(Cu,Fe)2Pb26.4(Bi,Sb)19.6S57
IMA status
  • Approved
IMA symbol
Gie
Discovered
1963
Also known as
  • Giesseniet
  • IMA1963-004

Where it forms, where it's found

Geological setting

Hydrothermal

Type locality
Turtschi
  1. Giessen
  2. Binn
  3. Goms
  4. Valais
  5. Switzerland

46.3669°, 8.1942°

28recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Metallic
Transparency
Opaque
Colour
Greyish-black
Streak
Grayish black
Density
7.45 g/cm³

Optical

Optical colour
White

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 34.62(3) Å · b = 38.18(5) Å · c = 4.080(8) Å
Cell angles
β = 90.33(5) °
Ratio a:b:c
1 : 1.103 : 0.118
Z
2
Morphology

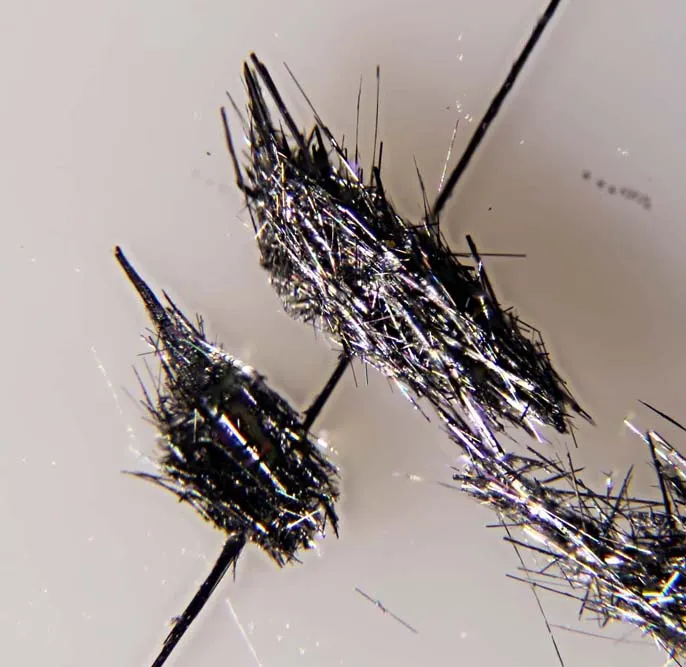

Fine needles to 1.5 mm.

Twinning

Intimately on (100)

Comment

Space group P21/n. Pseudo-orthorhombic. Cell also given as a = 34.51(3), b = 38.18(5), c = 4.080(8), β = 90.33(5)°.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead26.4207.2005470.080
39.02%
83BiBismuthBismuth19.6208.9804096.008
29.22%
51SbAntimonyAntimony19.6121.7602386.496
17.02%
16SSulfurSulfur5732.0601827.420
13.03%
29CuCopperCopper263.546127.092
0.91%
26FeIronIron255.845111.690
0.80%
Total14018.786100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe

Synonyms

  • Giesseniet
  • IMA1963-004

In other languages

German
Giessenit · IMA 1963-004
Italian
Giessenite

Classification

Strunz
10th ed.

2.HB.10b

  • 2Sulfides and SulfosaltsClass
  • 2.HSulfosalts of SnS archetypeDivision
  • 2.HBWith Cu, Ag, Fe, Sn and PbGroup
  • 2.HB.10bGiesseniteSpecies
Dana
8th ed.

03.05.12.02

  • 03SulfosaltsClass
  • 03.052.5 < ø < 3Type
  • 03.05.12— unnamed intermediate level —Group
  • 03.05.12.02GiesseniteSpecies
CIM

5.6.27

  • 5Sulphosalts - Sulpharsenites and Sulphobismuthites (those containing Sn, Ge,or V are in Section 6)Class
  • 5.6Sulpharsenites etc. of Pb aloneGroup
  • 5.6.27GiesseniteSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 1963Graeser, S. (1963) Giessenit - ein neues Pb-Bi-sulfosalz aus dem dolomit des Binnatales. Schweizerische Mineralogische und Petrographische Mitteilungen: 43: 471-478.
  2. 1965Fleischer, Michael (1965) New Mineral Names. American Mineralogist, 50 (1-2) 261-268
  3. 1973Karup-Møller, S (1973) A giessenite-cosalite-galena-bearing mineral suite from the Bjørkåsen sulphide deposit at Ofoten in northern Norway. Norsk Geologisk Tidsskrift [Norwegian Journal of Geology], 53 (1) 41-64
  4. 1984Armbruster, Thomas; Oberhänsli, Roland (1984) Antimon-reicher Giessenit vom Zervreilasee (Vals, Graubünden) [Antimony-rich Giessenite from Lake Zervreila (Vals, Graubünden)]. Schweizerische mineralogische und petrographische Mitteilungen, 64 (1-2). 21-26
  5. 1986Graeser, S., Harris, D.C. (1986) Giessenite from Giessen near Binn, Switzerland: new data. The Canadian Mineralogist: 24: 19-20.
