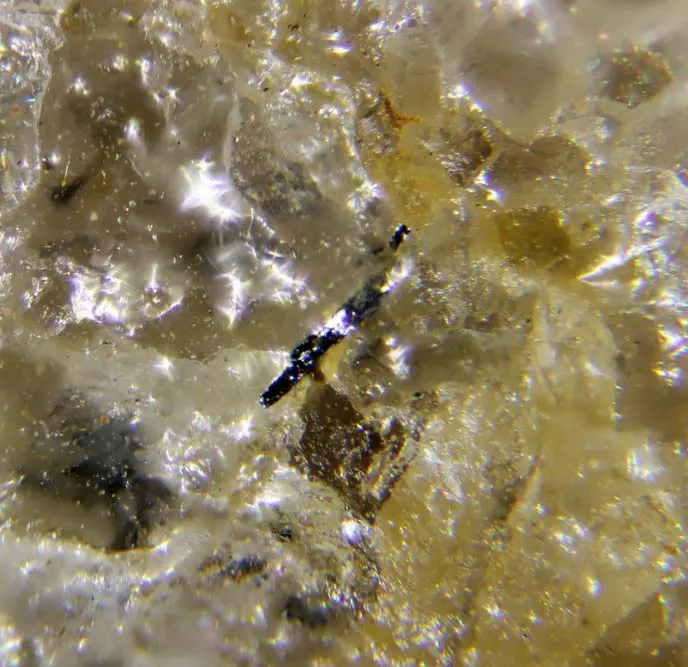

Tintinaite

Pb10Cu2Sb16S35
IMA status
  • Approved
IMA symbol
Tti
IMA approved
1967
Also known as
  • IMA1967-010
  • Tintinaiet

Where it forms, where it's found

Type locality
Deer Park Mine
  1. Rossland
  2. Trail Creek Mining Division
  3. British Columbia
  4. Canada

49.1500°, -117.9833°

40recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102.5 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Lead- to steel-gray
Streak
Black
Cleavage
Distinct/Good

distinct on {010)

Density
5.48 g/cm³

Optical

Optical colour
Gray
Tropism
Anisotropic
Reflectance R%
(39.3,44.5) 400, (39.0,44.3) 420, (38.8,44.0) 440, (38.5,43.7) 460, (38.4,43.7) 470, (38.2,43.6) 480, (38.1,43.8) 500, (38.0,43.8) 520, (37.9,43.6) 540, (37.9,43.5) 546, (37.9,43.3) 560, (37.3,42.6) 580, (37.0,42.2) 589, (36.7,41.8) 600, (36.0,41.0) 620, (35.6,40.8) 640, (35.6,40.6) 650, (35.5,40.3) 660, (34.9,39.7) 680, (34.2,38.5) 700
Notes

Refelctivity for material from Shexingping mine, Cheng County, Hunan, China.

Reflected-light panel
37.2 %anisotropic · dual curve
Specimen sRGB 215, 153, 86
White reference100 % reflector under same lamp
R₁ R₂
Mode
Reflected colour
Gray

Crystallography

Crystal system
Orthorhombic
Space group
#73
Cell parameters
a = 22.23 Å · b = 34.15 Å · c = 4.04 Å
Ratio a:b:c
1 : 1.536 : 0.182
Z
2

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead10207.2002072.000
39.32%
51SbAntimonyAntimony16121.7601948.160
36.97%
16SSulfurSulfur3532.0601122.100
21.30%
29CuCopperCopper263.546127.092
2.41%
Total5269.352100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ag
  • Bi
  • As

Synonyms

  • IMA1967-010
  • Tintinaiet

In other languages

German
IMA 1967-010 · Tintinait
Italian
Tintinaite

Classification

Strunz
10th ed.

2.HB.10a

  • 2Sulfides and SulfosaltsClass
  • 2.HSulfosalts of SnS archetypeDivision
  • 2.HBWith Cu, Ag, Fe, Sn and PbGroup
  • 2.HB.10aTintinaiteSpecies
Dana
8th ed.

03.06.19.02

  • 03SulfosaltsClass
  • 03.062 < ø < 2.49Type
  • 03.06.19— unnamed intermediate level —Group
  • 03.06.19.02TintinaiteSpecies
CIM

5.7.12

  • 5Sulphosalts - Sulpharsenites and Sulphobismuthites (those containing Sn, Ge,or V are in Section 6)Class
  • 5.7Sulpharsenites etc. of Pb and other metalsGroup
  • 5.7.12TintinaiteSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 1968Harris, D. C., Jambor, J. L., Lachance, G. R., Thorpe, R. I. (1968) Tintinaite, the antimony analogue of kobellite. The Canadian Mineralogist, 9 (3) 371-382
  2. 1984Moëlo, Y., Jambor, J.L. & Harris, D.C. (1984): Tintinaïte et sulfosels associés de Tintina (Yukon): Tintinaïte et sulfosels associés de Tintina (Yukon): la cristallochimie de la série de la kobellite. The Canadian Mineralogist, 22, 219-226.
  3. 1986Zakrzewski, M. A., Makovicky, E. (1986) Izoklakeite from Vena, Sweden, and the kobellite homologous series. The Canadian Mineralogist, 24 (1) 7-18
  4. 1995Moëlo, Y., Roger, G., Maurel-Palacin, D., Marcoux, E., Laroussi, A. (1995) Chemistry of some Pb-(Cu, Fe)-(Sb, Bi sulfosalts from France and Portugal. Implications for the crystal chemistry of lead sulfosalts in the Cu-poor part of the Pb2S2-Cu2S-Sb2S3-Bi2-Bi2S3 system. Mineralogy and Petrology, 53 (4) 229-250 doi:10.1007/bf01160149DOI: 10.1007/bf01160149
  5. 1997Pruseth, K. L., Mishra, B., Bernhardt, H. J. (1997) Phase relations in the Cu2S-PbS-Sb2S3 system; an experimental appraisal and application to natural polymetallic sulfide ores. Economic Geology, 92 (6). 720-732 doi:10.2113/gsecongeo.92.6.720DOI: 10.2113/gsecongeo.92.6.720
