Gobelinite

CoCu4(SO4)2(OH)6 · 6H2O
IMA status
  • Approved
IMA symbol
Gob
IMA approved
2018
Also known as
  • Gobeliniet
  • IMA2018-167
  • Unnamed (Co-analogue of Ktenasite)

Where it forms, where it's found

Geological setting

Weathering zone of Co-bearing ore deposits.

Type locality
North mine
  1. Cap Garonne Mine
  2. Le Pradet
  3. Toulon
  4. Var
  5. Provence-Alpes-Côte d'Azur
  6. France

43.0815°, 6.0353°

4recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Pale green · bluish green · greyish green
Streak
White (with a pale-green cast)
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
2.95 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 58° · 2V calc = 57.5°
Refractive index
1.576 – 1.63
Surface relief
Moderate
Principal indices
nα 1.576 · nβ 1.617 · nγ 1.630
Pleochroism
Strong

X = colourless, Y = green and Z = pale green.

Dispersion
Weak, r>v
Extinction
X = β, Y = γ, Z ≈ α
Notes

Data for Cap Garonne material.

Michel-Lévy diagramhighlighted lineδ = 0.0540
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]540 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation540 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#15
Cell parameters
a = 5.599(1) Å · b = 6.084(1) Å · c = 23.676(5) Å
Cell angles
β = 95.22(3) °
Ratio a:b:c
1 : 1.087 : 4.229
Morphology

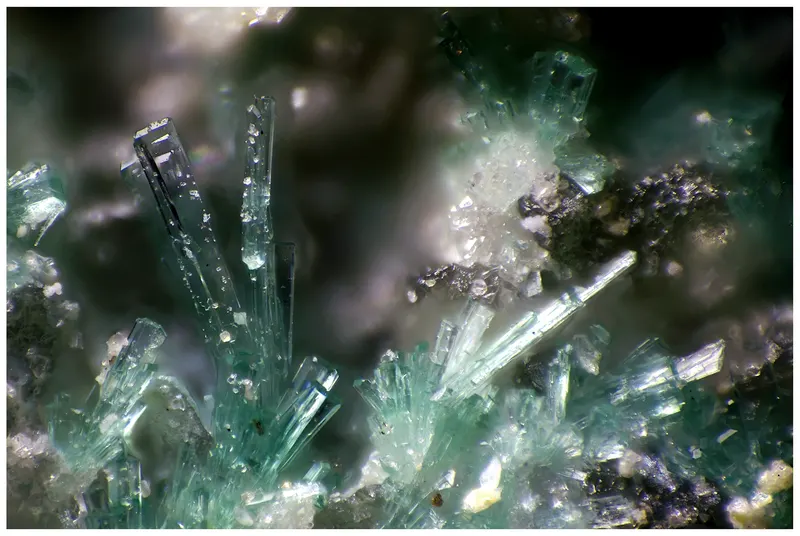

Blocky to thin, lath-like crystals.

Type-locality form

Aggregates of subparallel, blocky to thin, lath-like crystals.

Comment

Cap Garonne material (data at 100 K); German material has: a = 5.611(1), b = 6.103(1), c = 23.808(5) Å, β = 95.18(3)° and V = 811.9(3) Å3 (at 298 K).

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2015.999319.980
44.73%
29CuCopperCopper463.546254.184
35.53%
16SSulfurSulfur232.06064.120
8.96%
27CoCobaltCobalt158.93358.933
8.24%
1HHydrogenHydrogen181.00818.144
2.54%
Total715.361100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Gobeliniet
  • IMA2018-167
  • Unnamed (Co-analogue of Ktenasite)

In other languages

German
Gobelinit · IMA 2018-167

Classification

Strunz
10th ed.

7.DD.10

  • 7SulfatesClass
  • 7.DSulfates (selenates, etc.) with additional anions, with H2ODivision
  • 7.DDWith only medium-sized cations; sheets of edge-sharing octahedraGroup
  • 7.DD.10GobeliniteSpecies

Group, growth & confusion

In the same group
3 members
Often grow together
1 mineral
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1990Sarp, H., Perroud, P. & Camerola, M. (1990): Cobalt nickel-kténasite de la mine de Cap Garonne (Var), France, nouvelle variété de kténasite. Schweizerische mineralogische und petrographische Mitteilungen: 70, 333-335. (in French).
  2. 1998Henrich, Johannes Markus (1998) Die Königin der Eisensteingruben. Die Grube Eisenzecher Zug bei Eiserfeld im Siegerland – ein Fundort begehrter Mineralien [The Queen of the Ironstone Mines. The Eisenzecher Zug pit near Eiserfeld in Siegerland – a place where coveted minerals were found]. Mineralien-Welt, 9 (5). 16-35
  3. 2008Henrich, M. (2008) Sekundäre Kupfermineralien von der Grube Eisenzecher Zug im Siegerland. Lapis, 33 (5) 45
  4. 2008Henrich, M. (2008) Neues von der Grube Eisenzecher Zug, Eiserfeld [News from the Eisenzecher Zug pit, Eiserfeld]. Mineralien-Welt, 19 (5). 16-25
  5. 2013Golze, Rolf; Henrich, Markus; Hucko, Stefan; Stötzel, Norbert (2013) Siegerland & Westerwald: Bergbaugeschichte—Mineralienschätze [Siegerland & Westerwald: Mining History—Mineral Treasures—Localities]. Edition Krüger-Stiftung, Bode Verlag. p.1-800.
