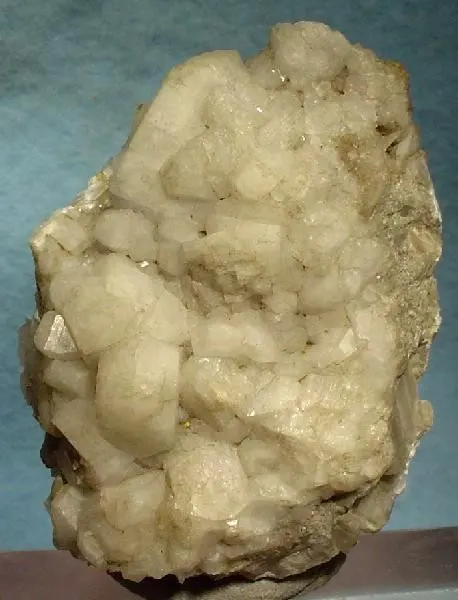

Harmotome

Ba2(Si12Al4)O32 · 12H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Hrm
Discovered
1801
Also known as
  • Andréasbergolita
  • Andréasbergolite
  • Andreasbergolith
  • +9 more

Where it forms, where it's found

Geological setting

Cavities in basalts, phonolites, trachytes, gneisses and some hydrothermal veins.

Type locality
St Andreasberg
  1. Braunlage
  2. Goslar District
  3. Lower Saxony
  4. Germany
300recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104 – 5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colorless · white · grey · pink · yellow · brown
Streak
White
Tenacity
brittle
Cleavage
Distinct/Good

Distinct on (010), poor on (001)

Fracture
Irregular/Uneven · Sub-Conchoidal
Density
2.41 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 43° · 2V calc = 80°
Refractive index
1.503 – 1.514
Surface relief
Moderate
Principal indices
nα 1.503 – 1.508 · nβ 1.505 – 1.509 · nγ 1.508 – 1.514
Dispersion
weak
Michel-Lévy diagramhighlighted lineδ = 0.0055
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]55 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation55 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#15
Cell parameters
a = 9.8688(21) Å · b = 14.1295(7) Å · c = 8.7092(9) Å
Cell angles
β = 124.74 °
Ratio a:b:c
1 : 1.432 : 0.882
Z
2
Morphology

Crystals elongate or tabular, frequently twinned (with cruciform habit).

Twinning

Repeated on (001) (021) (110)

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen4415.999703.956
48.62%
14SiSiliconSilicon1228.085337.020
23.28%
56BaBariumBarium2137.327274.654
18.97%
13AlAluminiumAluminium426.982107.928
7.46%
1HHydrogenHydrogen241.00824.192
1.67%
Total1447.750100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Na
  • Ca

Synonyms

  • Andréasbergolita
  • Andréasbergolite
  • Andreasbergolith
  • Andreolit
  • Andreolita
  • Andreolite
  • Andréolithe
  • Barytes Harmotome
  • Barytkreuzstein
  • Ercinit
  • Ercinita
  • Kreuzzeolith

In other languages

French
harmotome
German
Andreasbergolith · Andreolit · Barytkreuzstein · Ercinit · Harmotom · Kreuzzeolith · Morvenit
Spanish
Harmotoma
Italian
armotomo
Arabic
هارموتوم

Classification

Strunz
10th ed.

9.GC.10

  • 9SilicatesClass
  • 9.GTektosilicates with zeolitic H2O; zeolite familyDivision
  • 9.GCChains of doubly-connected 4-membered ringsGroup
  • 9.GC.10HarmotomeSpecies
Dana
8th ed.

77.01.03.05

  • 77Tectosilicates ZeolitesClass
  • 77.01Zeolite group - True zeolitesType
  • 77.01.03Gismondine and related speciesGroup
  • 77.01.03.05HarmotomeSpecies
CIM

16.12.9

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.12Aluminosilicates of Sr, Ba and ZnGroup
  • 16.12.9HarmotomeSpecies

Group, growth & confusion

In the same group
3 members
Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1797Klaproth, M. H. (1797) XXXVII. Untersuchung des Kreuzsteins vom Harz. In Beiträge zur chemischen Kenntniss der Mineralkörper Vol. 2. Rottmann. p.80-83.
  2. 1801Haüy, René Just (1801) Traité de Minéralogie (1st ed.) Vol. 3. Chez Louis, Paris.
  3. 1868Dana, James D., Brush, George Jarvis (1868) A System of Mineralogy (5th ed.). p.882
  4. 1937Sekanina, J., Wyart, J. (1937) Sur l'harmotome. Bulletin de Minéralogie, 60(1), 139-145.
  5. 1946Russell, Arthur (1946) An account of the Struy lead mines, Inverness-shire, and of wulfenite, harmotome, and other minerals which occur there. Mineralogical Magazine and Journal of the Mineralogical Society, 27 (192) 147-154 doi:10.1180/minmag.1946.027.192.01 DOI: 10.1180/minmag.1946.027.192.01
