Santaclaraite

CaMn2+4Si5O14(OH)2 · H2O
IMA status
  • Approved
IMA symbol
Scl
Discovered
1975
IMA approved
1979
Also known as
  • IMA1979-005
  • Santaclaraiet

Where it forms, where it's found

Geological setting

Manganese mine

Type locality
Pennsylvania Mine
  1. Sugarloaf Mountain
  2. Black Wonder Mining District
  3. Santa Clara County
  4. California
  5. USA

37.3364°, -121.4917°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Pink to reddish-orange · brown
Streak
Very pale pink
Cleavage
Distinct/Good

(100) (010) good

Density
3.31 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 81° · 2V calc = 82°
Refractive index
1.681 – 1.708
Surface relief
High
Principal indices
nα 1.681 · nβ 1.696 · nγ 1.708
Pleochroism
Weak

X= very pale red Y= pale red Z= pale reddish brown

Dispersion
Calculated
UV response
none
Michel-Lévy diagramhighlighted lineδ = 0.0270
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]270 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation270 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 9.738(2) Å · b = 9.970(1) Å · c = 7.603(1) Å
Cell angles
α = 109.77(1) ° · β = 93.95(1) ° · γ = 104.97(2) °
Ratio a:b:c
1 : 1.024 : 0.781
Z
2
Morphology

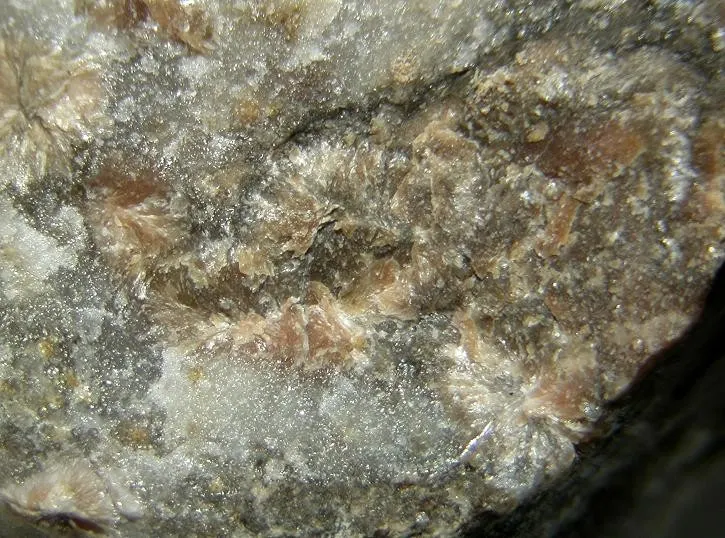

Radiating lamellar aggregates.

Twinning

On (100).

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1715.999271.983
40.22%
25MnManganeseManganese454.938219.752
32.49%
14SiSiliconSilicon528.085140.425
20.76%
20CaCalciumCalcium140.07840.078
5.93%
1HHydrogenHydrogen41.0084.032
0.60%
Total676.270100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Al
  • Fe
  • Ni
  • Co
  • Mg
  • Na

Synonyms

  • IMA1979-005
  • Santaclaraiet

In other languages

German
IMA 1979-005 · Santaclarait
Italian
Santaclaraite

Classification

Strunz
10th ed.

9.DK.10

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DKInosilicates with 5-periodic single chainsGroup
  • 9.DK.10SantaclaraiteSpecies
Dana
8th ed.

65.04.02.01

  • 65Inosilicates Single-width, Unbranched Chains, (w=1)Class
  • 65.04Single-Width Unbranched Chains, W=1 with chains P=5Type
  • 65.04.02— unnamed intermediate level —Group
  • 65.04.02.01SantaclaraiteSpecies
CIM

14.18.16

  • 14Silicates not Containing AluminumClass
  • 14.18Silicates of Mn and Na, K, Mg, Ca or FeGroup
  • 14.18.16SantaclaraiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1978Ohashi, Y., Erd, R.C. (1978) A new pyroxenoid Mn4CaSi5•2H2O: its structure and relationship to rhodonite, nambulite and marsturite. (abstract) Geological Society of America Abstract with Program: 10: 465.
  2. 1980Liebau, Friedrich (1980) The role of cationic hydrogen in pyroxenoid crystal chemistry. American Mineralogist, 65 (9-10) 981-985
  3. 1981Ohashi, Yoshikazu, Finger, Larry W. (1981) The crystal structure of santaclaraite, CaMn4[Si5O14(OH)](OH)·H2O: the role of hydrogen atoms in the pyroxenoid structure. American Mineralogist, 66 (1-2) 154-168
  4. 1981Holdaway, M.J. (1981) ERRATA. American Mineralogist, 66 (11-12). 1281
  5. 1984Erd, Richard C., Ohashi, Yoshikazu (1984) Santaclaraite, a new calcium-manganese silicate hydrate from California. American Mineralogist, 69 (1-2) 200-206
