Hechtsbergite

Bi2O(VO4)(OH)
IMA status
  • Approved
IMA symbol
Heb
Also known as
  • Hechtsbergiet
  • IMA1995-050

Where it forms, where it's found

Geological setting

Gneiss

Type locality
Hechtsberg quarry
  1. Hausach
  2. Hausach
  3. Ortenaukreis
  4. Freiburg Region
  5. Baden-Württemberg
  6. Germany

48.2797°, 8.1348°

6recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Adamantine
Transparency
Transparent · Translucent
Colour
Brown
Streak
Yellow
Fracture
Conchoidal
Density
6.87 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 50°
Refractive index
2.26 – 2.3
Surface relief
Very high
Principal indices
nα 2.26 · nβ 2.27 · nγ 2.30
Dispersion
relatively strong
UV response
Not fluorescent
Michel-Lévy diagramhighlighted lineδ = 0.0400
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]400 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation400 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/c
Cell parameters
a = 6.971(1) Å · b = 7.535(1) Å · c = 10.881(1) Å
Cell angles
β = 107.00(1) °
Ratio a:b:c
1 : 1.081 : 1.561
Z
4
Morphology

Mainly (111), with subordinate (112), (113), (101), (102), and (302).

Type-locality form

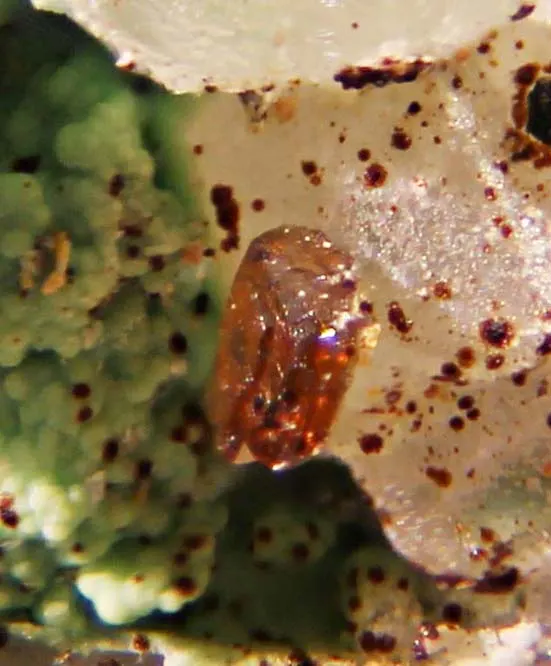

Euhedral brown crystals and aggregates to 0.2 mm.

Comment

Single-crystal data.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
83BiBismuthBismuth2208.980417.960
73.86%
8OOxygenOxygen615.99995.994
16.96%
23VVanadiumVanadium150.94250.942
9.00%
1HHydrogenHydrogen11.0081.008
0.18%
Total565.904100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Hechtsbergiet
  • IMA1995-050

In other languages

German
Hechtsbergit · IMA 1995-050
Italian
Hechtsbergite

Classification

Strunz
10th ed.

8.BO.15

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BOWith only large cations, (OH, etc.):RO4 about 1:1Group
  • 8.BO.15HechtsbergiteSpecies

Group, growth & confusion

In the same group
2 members

Literature, links & citation

Citations
  1. 1997Krause, W., Bernhardt, H.-J., Blaß, G., Effenberger, H., Graf, H.-W. (1997) Hechtsbergite, Bi2O(OH)(VO4), a new mineral from the Black Forest, Germany. Neues Jahrbuch für Mineralogie - Monatshefte, 1997 (6) 271-287 doi:10.1127/njmm/1997/1997/271DOI: 10.1127/njmm/1997/1997/271
  2. 1998Mandarino, Joseph A. (1998) Abstracts of New Mineral Descriptions. The Mineralogical Record, 29 (5) 467-479
  3. 1998Jambor, John L., Roberts, Andrew C. (1998) New mineral names. American Mineralogist, 83 (3-4) 400-403
  4. 1998Blass, Günter, Graf, Hans-Werner, Krause, Werner (1998) Hechtsbergit, ein neues Bi-V-Mineral aus dem Schwarzwald. Mineralien-Welt, 9 (1). 55
  5. 2005(2005) Hechtsbergite. Handbook of Mineralogy. Mineralogical Society of America
