Smrkovecite

Bi2O(OH)(PO4)
IMA status
  • Approved
IMA symbol
Skc
IMA approved
1993
Also known as
  • IMA1993-040
  • Smrkoveciet

Where it forms, where it's found

Geological setting

Cavities in quartz.

Type locality
Smrkovec
  1. Březová
  2. Sokolov District
  3. Karlovy Vary Region
  4. Czech Republic

49.9728°, 12.8380°

3recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104 – 5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous · Adamantine
Colour
White · light yellow
Cleavage
Poor/Indistinct

Indistinct on (010)

Fracture
Sub-Conchoidal
Density
4.75 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 58 – 61° · 2V calc = 62°
Refractive index
2.05 – 2.09
Surface relief
Very high
Principal indices
nα 2.05 · nβ 2.06 · nγ 2.09
Dispersion
r < v strong
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.0400
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]400 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation400 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/c
Cell parameters
a = 6.954 Å · b = 7.494(4) Å · c = 10.869(6) Å
Cell angles
β = 107.00(6) °
Ratio a:b:c
1 : 1.078 : 1.563
Z
4
Type-locality form

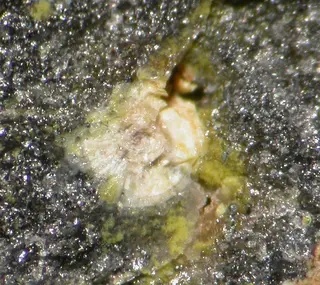

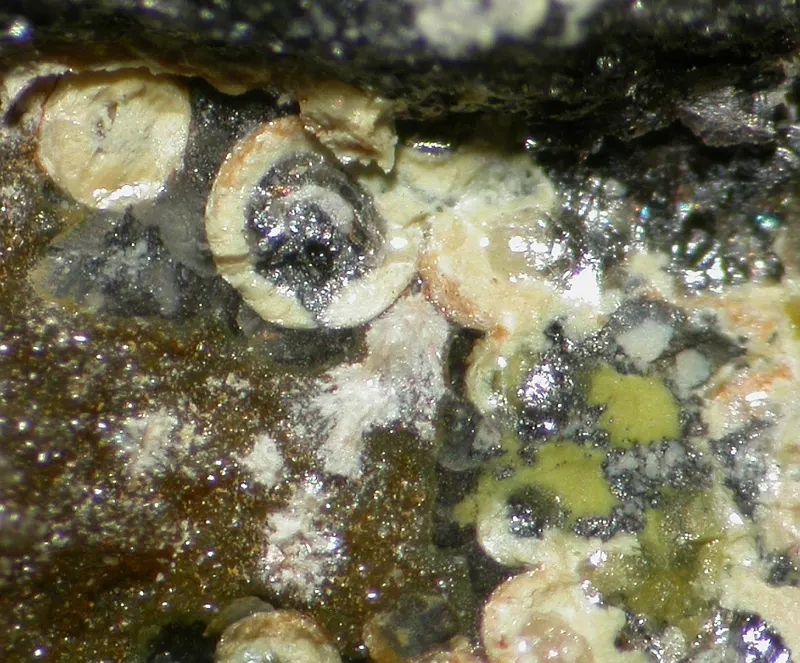

Crusts and mamillary to spherical aggregates to 0.2 mm, and as intergrown crystals to 0.1 mm.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
83BiBismuthBismuth2208.980417.960
76.56%
8OOxygenOxygen615.99995.994
17.58%
15PPhosphorusPhosphorus130.97430.974
5.67%
1HHydrogenHydrogen11.0081.008
0.19%
Total545.936100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1993-040
  • Smrkoveciet

In other languages

German
IMA 1993-040 · Smrkovecit
Italian
Smrkovecite

Classification

Strunz
10th ed.

8.BO.15

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BOWith only large cations, (OH, etc.):RO4 about 1:1Group
  • 8.BO.15SmrkoveciteSpecies

Group, growth & confusion

In the same group
2 members

Literature, links & citation

Citations
  1. 1996Jambor, J.L., Kovalenker, V.A., Puziewics, J., Roberts, A.C. (1996) New mineral names. American Mineralogist: 81: 1282-1286.
  2. 1996Řídkošil, T., Sejkora, J., Šrein, Vl. (1996) Smrkovecite, monoclinic Bi2O(OH)(PO4), a new mineral of the atelestite group. Neues Jahrbuch für Mineralogie - Monatshefte, 1996. 97-102
  3. 1997Mandarino, Joseph A. (1997) Abstracts of New Mineral Descriptions. The Mineralogical Record, 28 (2) 141-145
  4. 2005(2005) Smrkovecite. Handbook of Mineralogy. Mineralogical Society of America
Cite this entry
@misc{mineral2026,
  author    = {Mineral Index editorial board},
  title     = {Smrkovecite — Mineral Index},
  year      = {2026},
  url       = {https://mineralindex.org/minerals/smrkovecite-7299},
  note      = {Accessed 2026-05-11}
}
