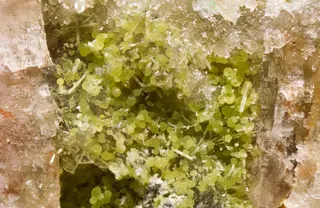

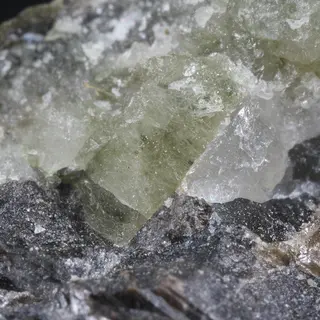

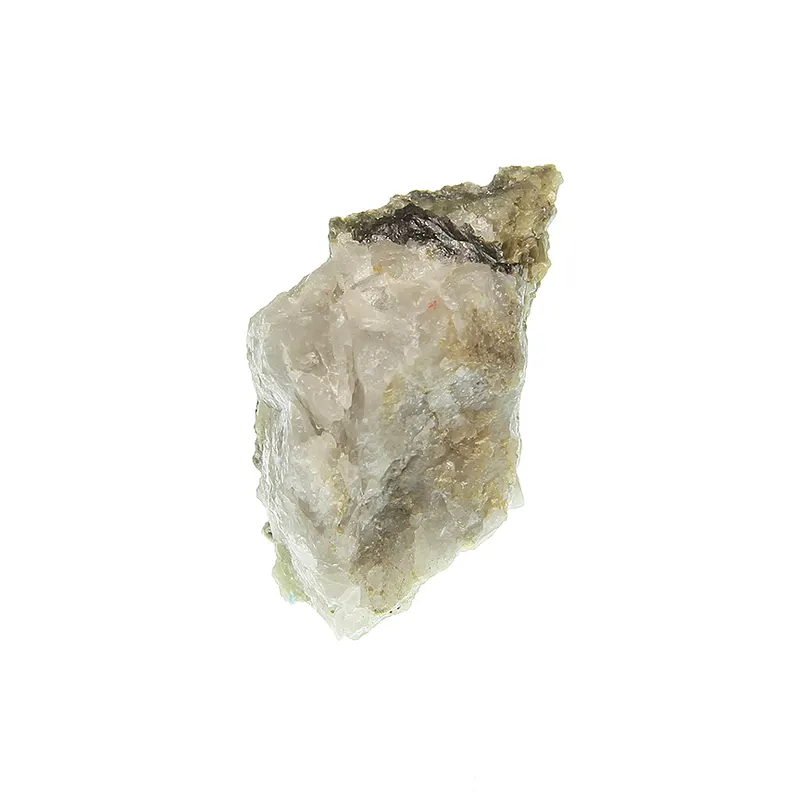

Atelestite

Bi2O(AsO4)(OH)
IMA status
  • Approved
  • Grandfathered
IMA symbol
Ale
Discovered
1832
Also known as
  • Atalesite
  • Atalezit
  • Atalezita
  • +6 more

Where it forms, where it's found

Geological setting

As a rare secondary mineral in the oxidized zone of bismuth- and arsenic-bearing mineral deposits.

Type locality
Neuhilfe Mine
  1. Neustädtel
  2. Schneeberg
  3. Erzgebirgskreis
  4. Saxony
  5. Germany
54recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789104.5 – 5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Resinous to Adamantine.
Transparency
Transparent · Translucent
Colour
Sulphur-yellow to yellowish-green · wax-yellow · yellow-brown

Light yellow to colourless in transmitted light.

Streak
(not reported)
Cleavage
Poor/Indistinct

On (001), indistinct.

Fracture
Sub-Conchoidal
Density
7.14 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 42 – 46° · 2V calc = 62°
Refractive index
2.14 – 2.18
Surface relief
Very high
Principal indices
nα 2.14 · nβ 2.15 · nγ 2.18
Dispersion
r < v, strong
Luminescence
None.
Michel-Lévy diagramhighlighted lineδ = 0.0400
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]400 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation400 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/c
Cell parameters
a = 10.88 Å · b = 7.42 Å · c = 6.98 Å
Cell angles
β = 107.2 °
Ratio a:b:c
1 : 0.682 : 0.642
Z
4
Morphology

Crystals generally minute, tabular (100), with a, g, d and q commonly prominent. q(313) somewhat rounded. Other faces smooth and brilliant. Also occurs as spherical or mammillary crystalline aggregates with smooth surfaces.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
83BiBismuthBismuth2208.980417.960
70.86%
8OOxygenOxygen615.99995.994
16.27%
33AsArsenicArsenic174.92274.922
12.70%
1HHydrogenHydrogen11.0081.008
0.17%
Total589.884100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Atalesite
  • Atalezit
  • Atalezita
  • Atalezite
  • Atelestiet
  • Atelestitt
  • Rhagit
  • Rhagita
  • Rhagite

In other languages

German
Atelestit · Rhagit
Italian
Atelestite

Classification

Strunz
10th ed.

8.BO.15

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BOWith only large cations, (OH, etc.):RO4 about 1:1Group
  • 8.BO.15AtelestiteSpecies
Dana
8th ed.

41.11.05.01

  • 41Anhydrous Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 41.11MiscellaneousType
  • 41.11.05— unnamed intermediate level —Group
  • 41.11.05.01AtelestiteSpecies
CIM

20.6.4

  • 20Arsenates (also arsenates with phosphate, but without other anions)Class
  • 20.6Arsenates of BiGroup
  • 20.6.4AtelestiteSpecies

Group, growth & confusion

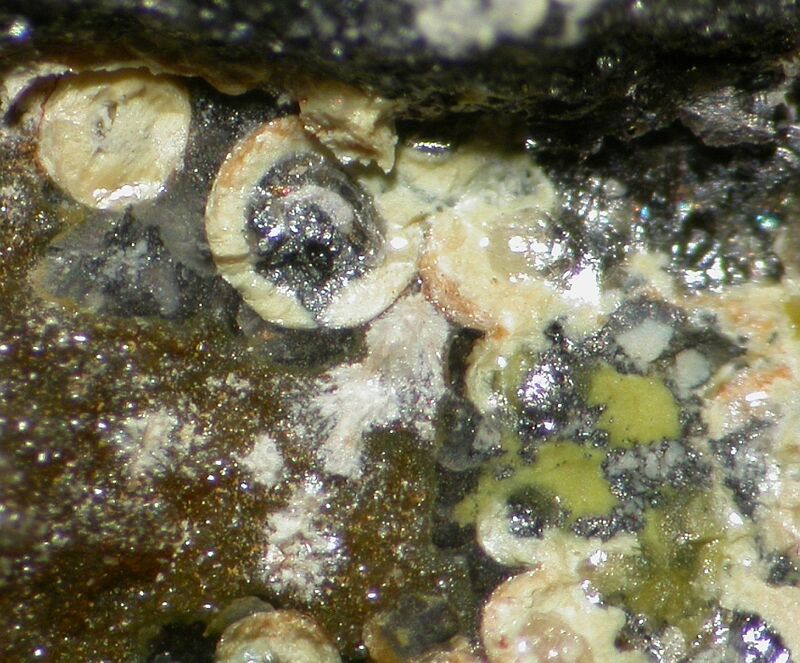

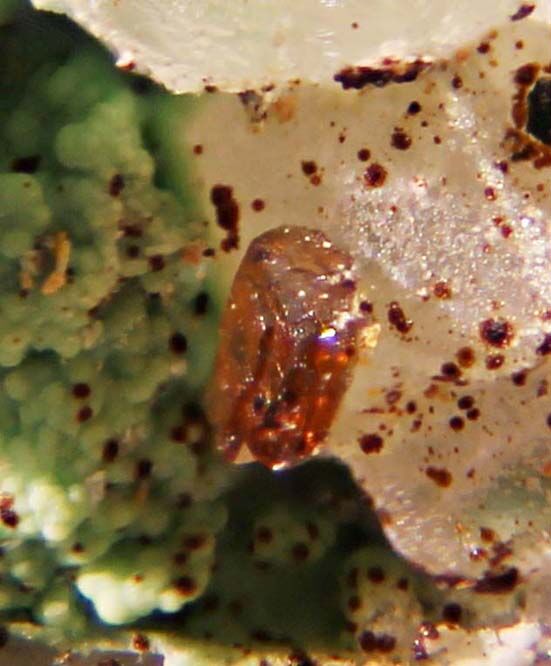

In the same group
2 members
Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1832Breithaupt, J.F.A. (1832) Atelestit. in Vollständige Charakteristik des Mineral-Systems, 2nd Ed., Arnoldische Buchhandlung (Dresden): 307-307.
  2. 1869Rath, G. (1869) Mineralogische Mittheilungen. Bestimmung der Krystallform des Atelestits. Annalen der Physik, Halle, Leipzig: 136: 405-437 (422-424).
  3. 1874Weisbach (1874) Neues Jahrbuch für Mineralogie, Geologie und Paleontologie, Heidelberg, Stuttgart: 302, 870 (as rhagite).
  4. 1874Winkler, C. (1874) Rhagit und roselith. Journal für praktische Chemie, Leipzig: 10: 190-192. (as rhagite)
  5. 1886Goldschmidt, Victor (1886) Index der Krystallformen der Mineralien Vol. 1. Springer Berlin Heidelberg. doi:10.1007/978-3-662-28591-6 DOI: 10.1007/978-3-662-28591-6
