Hibschite

Ca3Al2(SiO4)3-x(OH)4x
IMA symbol
Hbs
Discovered
1905
Also known as
  • Grossular-Hibschite Series
  • Hibschit
  • Hibschita
  • +1 more

Where it forms, where it's found

Type locality

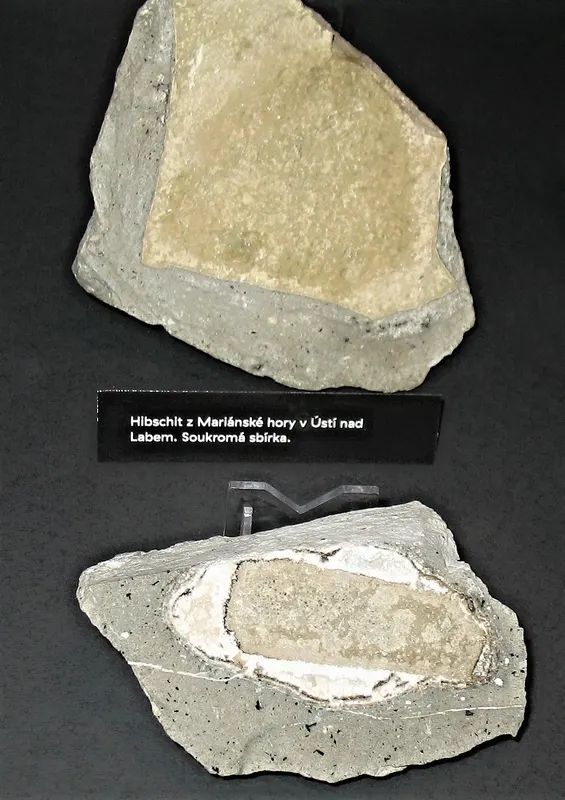

Mariánská Skála (Mariánská hora
  1. Marienberg)
  2. Ústí nad Labem
  3. Ústí nad Labem District
  4. Ústí nad Labem Region
  5. Czech Republic

50.6633°, 14.0542°

101recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Usually colourless · pale yellow · may have tints of grey · green to bluish green · also may be smoky grey to black.

Dark colour may be due to zonation with melanite.

Streak
White
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven · Sub-Conchoidal
Density
3.06 g/cm³

Optical

Optical type
Isotropic
Refractive index
1.67 – 1.75
Surface relief
High
Principal indices
nβ 1.67 – 1.750
Birefringence
May be anomalously birefringent.
UV response
Generally non-fluorescent. One locality (Mosjoen, Nordland, Norway) has distinct orange fluorescence SW UV.
Isotropy testPPL ↔ XPL diagnostic
PPL intrinsic colour; no change on stage rotation
XPL extinct at every orientation

Crystallography

Crystal system
Isometric
Space group
#225
Cell parameters
a = 12 Å
Z
8
Morphology

Crystals are rare, but may be dominantly octahedral. Occasionally dodecahedral.

Type-locality form

Colourless to pale yellow overgrowths on "titaniferous melanite" crystal.

Comment

a varies from 11.90 to 12.287

Crystal structure

Chemical composition

Impurities
  • Fe
  • Mn
  • Mg
  • S

Synonyms

  • Grossular-Hibschite Series
  • Hibschit
  • Hibschita
  • Plasolite

Classification

Dana
8th ed.

51.04.3d.01

  • 51Nesosilicates Insular Sio4 Groups OnlyClass
  • 51.04Insular SiO4 Groups Only with cations in [6] and >[6] coordinationType
  • 51.04.3d— unnamed intermediate level —Group
  • 51.04.3d.01HibschiteSpecies

Group, growth & confusion

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1983(1983) Neues Jahrbuch für Mineralogie, Monatshefte 1983, 251-258.
  2. 1984Passaglia, Elio, Rinaldi, Romano (1984) Katoite, a new member of the Ca3Al2(SiO4)3-Ca3Al2(OH)12 series and a new nomenclature for the hydrogrossular group of minerals. Bulletin de Minéralogie, 107 (5) 605-618 doi:10.3406/bulmi.1984.7804DOI: 10.3406/bulmi.1984.7804
  3. 1985Dunn, Pete J., Fleischer, Michael, Langley, Richard H., Shigley, James E., Zilczer, Janet A. (1985) New mineral names. American Mineralogist, 70 (7-8) 871-881
  4. 1989Lager, George A., Armbruster, Thomas, Rotella, Frank J., Rossman, George R. (1989) OH substitution in garnets: X-ray and neutron diffraction, infrared, and geometric-modeling studies. American Mineralogist, 74 (7-8) 840-851
  5. 1989(1989): European Journal of Mineralogy 1: 363.
