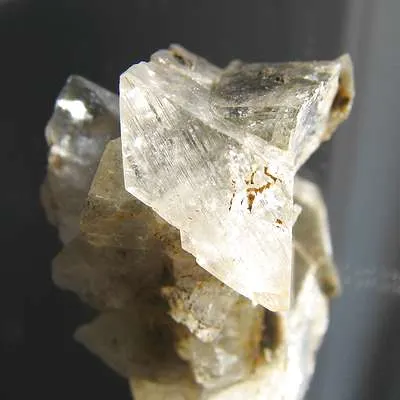

Hyalophane

(K,Ba)[Al(Si,Al)Si2O8]
IMA status
  • Grandfathered
  • Questionable
Discovered
1855
Also known as
  • Hyalophan
  • Jaloallofane

Where it forms, where it's found

Type locality
Lengenbach Quarry
  1. Fäld
  2. Binn
  3. Goms
  4. Valais
  5. Switzerland

46.3653°, 8.2205°

127recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106 – 6.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond

Optical

Optical type
Biaxial (-)
Refractive index
1.542 – 1.547
Surface relief
Moderate
Principal indices
nα 1.542 · nβ 1.545 · nγ 1.547
Dispersion
weak
Michel-Lévy diagramhighlighted lineδ = 0.0050
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]50 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation50 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 8.52 Å · b = 12.95 Å · c = 7.14 Å
Cell angles
β = 116 °
Ratio a:b:c
1 : 1.520 : 0.838
Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
56BaBariumBarium1137.327137.327
31.02%
8OOxygenOxygen815.999127.992
28.92%
14SiSiliconSilicon328.08584.255
19.04%
13AlAluminiumAluminium226.98253.964
12.19%
19KPotassiumPotassium139.09839.098
8.83%
Total442.636100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From Mindat formula

Impurities
  • Ti
  • Na
  • Fe
  • Mg
  • Ca
  • H20

Synonyms

  • Hyalophan
  • Jaloallofane

Classification

Dana
8th ed.

76.01.01.03

  • 76Tectosilicates Al-si FrameworkClass
  • 76.01Al-Si Framework with Al-Si frameworksType
  • 76.01.01K (Na,Ba) feldsparsGroup
  • 76.01.01.03HyalophaneSpecies
CIM

16.12.10

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.12Aluminosilicates of Sr, Ba and ZnGroup
  • 16.12.10HyalophaneSpecies

Group, growth & confusion

Often grow together
2 minerals

Literature, links & citation

Citations
  1. Acta Crystallographica: 33: 3073-3076.
  2. 1892Dana, Edward Salisbury; Dana, James Dwight (1892) A System of Mineralogy (6th ed.). John Wiley & Sons, Inc.
  3. 1968Gay, P.; Roy, N. N. (1968) The mineralogy of the potassium-barium feldspar series. III: Subsolidus relationships. Mineralogical Magazine and Journal of the Mineralogical Society, 36 (283). 914-932 doi:10.1180/minmag.1968.283.036.02 DOI: 10.1180/minmag.1968.283.036.02
  4. 1977De Pieri, R., Quareni, S., Hall, K. M. (1977) Refinement of the structures of low and high hyalophanes. Acta Crystallographica Section B Structural Crystallography and Crystal Chemistry, 33 (10) 3073-3076 doi:10.1107/s0567740877010280DOI: 10.1107/s0567740877010280
  5. 1981Phillips, W.R. and D.T. Griffen (1981) Optical Mineralogy, 360-363.
