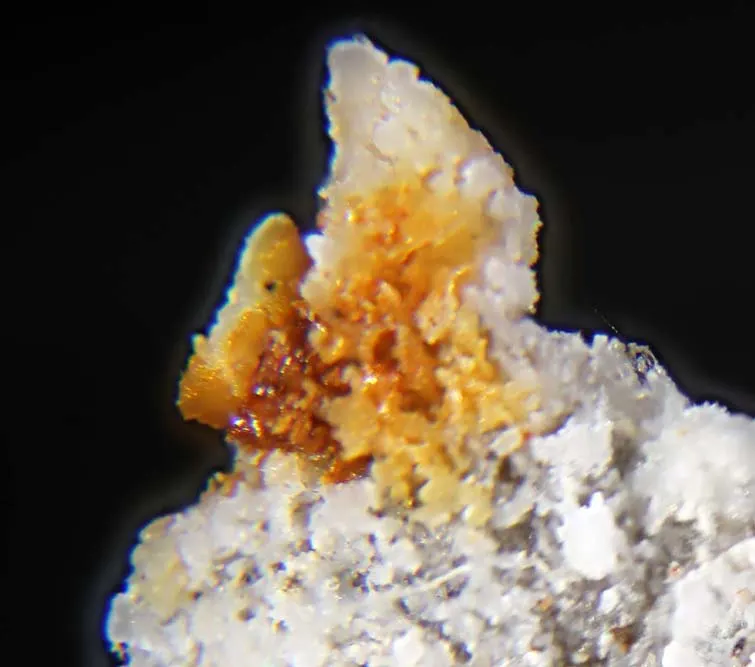

Hydrocalumite

Ca4Al2(OH)12(Cl,CO3,OH)2 · 4H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Hcl
Discovered
1934
Also known as
  • Hydrocalumiet
  • Hydrocalumita

Where it forms, where it's found

Type locality
Scawt Hill
  1. Larne
  2. County Antrim
  3. Northern Ireland
  4. UK

54.9105°, -5.9154°

37recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colourless to light green
Cleavage
Perfect

(001); a poor cleavage inclined at about 60° to (100).

Density
2.15 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 24° · 2V calc = 50°
Refractive index
1.535 – 1.557
Surface relief
Moderate
Principal indices
nα 1.535 · nβ 1.553 · nγ 1.557
Dispersion
r > v weak
Michel-Lévy diagramhighlighted lineδ = 0.0220
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]220 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation220 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P2/c
Cell parameters
a = 10.0234(3) Å · b = 11.5131(3) Å · c = 16.2989(5) Å
Cell angles
β = 104.205(3) °
Ratio a:b:c
1 : 1.149 : 1.626
Z
4
Morphology

Massive; tabular, pseudohexagonal crystals.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2415.999383.976
53.68%
20CaCalciumCalcium440.078160.312
22.41%
17ClChlorineChlorine235.45070.900
9.91%
13AlAluminiumAluminium226.98253.964
7.54%
6CCarbonCarbon212.01124.022
3.36%
1HHydrogenHydrogen221.00822.176
3.10%
Total715.350100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Hydrocalumiet
  • Hydrocalumita

In other languages

German
Hydrocalumit
Italian
Idrocalumite

Classification

Strunz
10th ed.

4.FL.10

  • 4OxidesClass
  • 4.FHydroxides (without V or U)Division
  • 4.FLHydroxides with H2O +- (OH); sheets of edge-sharing octahedraGroup
  • 4.FL.10HydrocalumiteSpecies
Dana
8th ed.

06.04.04.01

  • 06Hydroxides and Oxides Containing HydroxylClass
  • 06.04MiscellaneousType
  • 06.04.04— unnamed intermediate level —Group
  • 06.04.04.01HydrocalumiteSpecies
CIM

7.4.14

  • 7Oxides and HydroxidesClass
  • 7.4Oxides of Be, Mg and the alkaline earthsGroup
  • 7.4.14HydrocalumiteSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 1934Tilley, C. E. (1934) Hydrocalumite (4CaO.Al2O3.12H2O), a new mineral from Scawt Hill, Co. Antrim. Mineralogical Magazine and Journal of the Mineralogical Society, 23 (146) 607-615 doi:10.1180/minmag.1934.023.146.04 DOI: 10.1180/minmag.1934.023.146.04
  2. 1935Foshag, W.F. (1935) New mineral names. American Mineralogist: 20: 314-317.
  3. 1944Palache, Charles, Berman, Harry, Frondel, Clifford (1944) The System of Mineralogy (7th ed.) Vol. 1 - Elements, Sulfides, Sulfosalts, Oxides. John Wiley and Sons, New York.
  4. 1959BUTTLER, F. G., DENT GLASSER, L. S., TAYLOR, H. F. W. (1959) Studies on 4CaOAl2.O3.13H2O and the Related Natural Mineral Hydrocalumite. Journal of the American Ceramic Society, 42 (3). 121-126 doi:10.1111/j.1151-2916.1959.tb14078.xDOI: 10.1111/j.1151-2916.1959.tb14078.x
  5. 1963Grünhagen, H.; Mergoil, Juliette (1963) Découverte d'hydrocalumite et afwillite associées à l'ettringite dans les porcélanites de Boisséjour près Ceyrat (Puy-de-Dôme). Bulletin de Minéralogie, 86 (2). 149-157 doi:10.3406/bulmi.1963.8308DOI: 10.3406/bulmi.1963.8308
