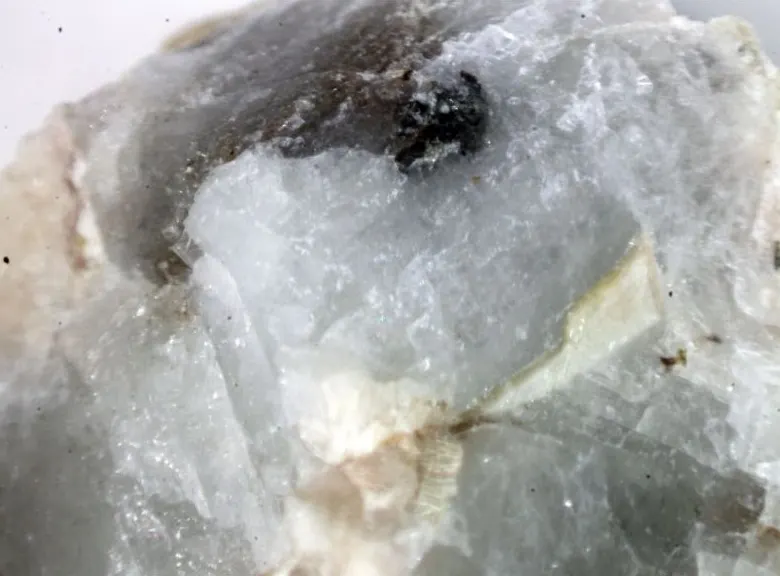

Hydroxycancrinite

(Na,Ca,K)8(Al6Si6O24)(OH,CO3)2 · 2H2O
IMA status
  • Approved
IMA symbol
Hccn
Discovered
1990
IMA approved
1990
Also known as
  • Hydroxycancriniet
  • Hydroxycancrinita
  • IMA1990-014

Where it forms, where it's found

Geological setting

In veins 1-5 cm wide in ultra-alkalic pegmatites.

Type locality
Karnasurt Mountain
  1. Lovozersky District
  2. Murmansk Oblast
  3. Russia

67.8808°, 34.6817°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Light blue to colourless
Streak
White
Tenacity
brittle
Cleavage
Perfect

(1010)

Fracture
Irregular/Uneven
Density
2.32 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.494 – 1.501
Surface relief
Low
Principal indices
nω 1.494 · nε 1.501
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.0070
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]70 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation70 nm
Order1st order
XPL colour

Crystallography

Crystal system
Hexagonal
Space group
#104
Cell parameters
a = 12.740(3) Å · c = 5.182(2) Å
Z
1
Type-locality form

Massive aggregates 10-15 µm across.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3415.999543.966
31.59%
20CaCalciumCalcium840.078320.624
18.62%
19KPotassiumPotassium839.098312.784
18.17%
11NaSodiumSodium822.990183.920
10.68%
14SiSiliconSilicon628.085168.510
9.79%
13AlAluminiumAluminium626.982161.892
9.40%
6CCarbonCarbon212.01124.022
1.40%
1HHydrogenHydrogen61.0086.048
0.35%
Total1721.766100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • K
  • Ca
  • Mg
  • Mn
  • Fe
  • C

Synonyms

  • Hydroxycancriniet
  • Hydroxycancrinita
  • IMA1990-014

In other languages

German
Hydroxycancrinit · IMA 1990-014
Italian
Hydroxycancrinite · Idrossicancrinite
Chinese
羟钙霞石

Classification

Strunz
10th ed.

9.FB.05

  • 9SilicatesClass
  • 9.FTektosilicates without zeolitic H2ODivision
  • 9.FBTektosilicates with additional anionsGroup
  • 9.FB.05HydroxycancriniteSpecies
Dana
8th ed.

76.02.05.08

  • 76Tectosilicates Al-si FrameworkClass
  • 76.02Al-Si Framework Feldspathoids and related speciesType
  • 76.02.05Cancrinite groupGroup
  • 76.02.05.08HydroxycancriniteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1992Khomyakov, A. P., Nadezhina, T. N., Rastsevtaeva, R. K., Pobedimskaya, E. A. (1992) Hydroxycancrinite Na8[Al6Si6O24](OH)2·2H2O: a new mineral. Zapiski Vserossijskogo Mineralogicheskogo Obshchestva, 121 (1) 100-105
  2. 1993Jambor, John L., Vanko, David A. (1993) New Mineral Names. American Mineralogist, 78 (11-12) 1314-1319
  3. 1997Mandarino, Joseph A. (1997) New Minerals 1990-1994. The Mineralogical Record Inc., Tuscon, Arizona. 220pp.
  4. 2001(2001) Hydroxycancrinite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2011Pekov, I. V., Olysych, L. V., Chukanov, N. V., Zubkova, N. V., Pushcharovsky, D. Y., Van, K. V., Giester, G., Tillmanns, E. (2011) Crystal chemistry of cancrinite-group minerals with an AB-type framework: A review and new data. I. Chemical and structural variations. The Canadian Mineralogist, 49 (5) 1129-1150 doi:10.3749/canmin.49.5.1129 DOI: 10.3749/canmin.49.5.1129
