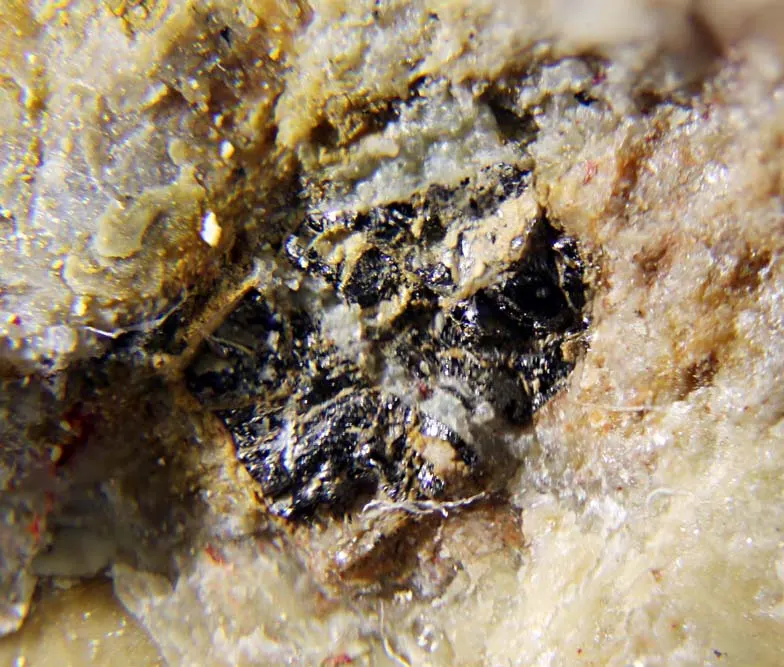

Hypercinnabar

HgS
IMA status
  • Approved
IMA symbol
Hcin
IMA approved
1978
Also known as
  • IMA1977-D

Where it forms, where it's found

Type locality
Mount Diablo Mine
  1. Mount Diablo (Mt Diablo)
  2. Clayton
  3. Contra Costa County
  4. California
  5. USA

37.8817°, -121.9128°

4recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
Black with purple cast
Streak
Dark black purple
Cleavage
None Observed
Fracture
Irregular/Uneven · Sub-Conchoidal
Density
7.43 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
2.61 – 2.85
Surface relief
Very high
Principal indices
nω 2.61 · nε 2.85
Optical colour
Greayish white (in air), brownish grey (in oil)
Anisotropism
Distinct (in oil)
Bireflectance
None
Tropism
Anisotropic
Michel-Lévy diagramhighlighted lineδ = 0.2400
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]2400 nm5th order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation2400 nm
Order5th order
XPL colour

Crystallography

Crystal system
Hexagonal
Cell parameters
a = 7.01(3) Å · c = 14.13(7) Å
Z
12
Comment

Space group not determined.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
80HgMercuryMercury1200.592200.592
86.22%
16SSulfurSulfur132.06032.060
13.78%
Total232.652100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1977-D

In other languages

French
Hypercinabre
German
Hypercinnabarit · IMA 77-D
Italian
hypercinnabar · Ipercinabro

Classification

Strunz
10th ed.

2.CD.15b

  • 2Sulfides and SulfosaltsClass
  • 2.CMetal Sulfides, M: S = 1: 1 (and similar)Division
  • 2.CDWith Sn, Pb, Hg, etc.Group
  • 2.CD.15bHypercinnabarSpecies
Dana
8th ed.

02.08.08.01

  • 02SulfidesClass
  • 02.08AmXp, with m:p = 1:1Type
  • 02.08.08— unnamed intermediate level —Group
  • 02.08.08.01HypercinnabarSpecies
CIM

3.5.2

  • 3Sulphides, Selenides, Tellurides, Arsenides and Bismuthides (except the arsenides, antimonides and bismuthides of Cu, Ag and Au, which are included in Section 1)Class
  • 3.5Sulphides etc. of Hg and TlGroup
  • 3.5.2HypercinnabarSpecies

Group, growth & confusion

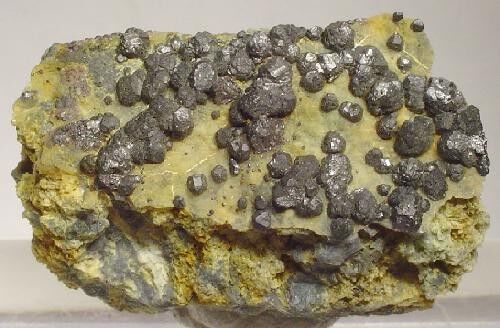

Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 1978Potter, Robert W. II, Barnes, H. L. (1978) Phase relations in the binary Hg-S. American Mineralogist, 63 (11-12) 1143-1152
  2. 2005(2005) Hypercinnabar. Handbook of Mineralogy. Mineralogical Society of America
