Isselite

Cu6(SO4)(OH)10(H2O)4 · H2O
IMA status
  • Approved
IMA symbol
Iss
IMA approved
2019
Also known as
  • Isseliet

Where it forms, where it's found

Type locality
Lagoscuro mine
  1. Case Lagoscuro
  2. Livellato
  3. Ceranesi
  4. Genoa
  5. Liguria
  6. Italy

44.4766°, 8.8598°

2recorded occurrences
Source · OpenStreetMap

Physical

Transparency
Transparent
Colour
Blue
Streak
Light blue
Tenacity
brittle
Cleavage
Distinct/Good

Good cleavage on (001) and (100).

Fracture
Irregular/Uneven
Density
3.00 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 63.6°
Refractive index
1.599 – 1.647
Surface relief
Moderate
Principal indices
nα 1.599 · nβ 1.633 · nγ 1.647
Pleochroism
Visible

X = light blue, Y = blue, Z = blue

Dispersion
moderate, with r > v.
Notes

Optical orientation: X = b, Y = c and Z = a. Absorption: X << Z < Y.

Michel-Lévy diagramhighlighted lineδ = 0.0480
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]480 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation480 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#34
Cell parameters
a = 6.807(1) Å · b = 5.897(1) Å · c = 20.654(4) Å
Ratio a:b:c
1 : 0.866 : 3.034
Z
6
Morphology

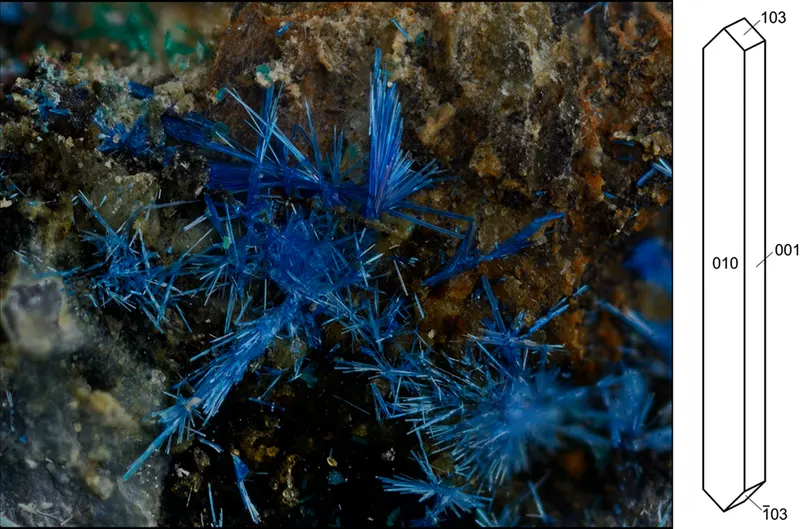

Acicular crystals, striated parallel to [100] and tabular on (001). Observed forms are (001), (010), (103) and (103).

Type-locality form

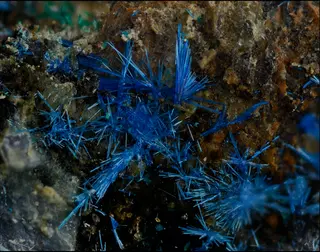

Sprays of blue acicular crystals, up to 0.1 mm long.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
29CuCopperCopper663.546381.276
51.70%
8OOxygenOxygen1915.999303.981
41.22%
16SSulfurSulfur132.06032.060
4.35%
1HHydrogenHydrogen201.00820.160
2.73%
Total737.477100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Isseliet

In other languages

German
IMA 2018-139 · Isselit

Classification

Strunz
10th ed.

7.DD.40

  • 7SulfatesClass
  • 7.DSulfates (selenates, etc.) with additional anions, with H2ODivision
  • 7.DDWith only medium-sized cations; sheets of edge-sharing octahedraGroup
  • 7.DD.40IsseliteSpecies

Group, growth & confusion

Often grow together
2 minerals

Literature, links & citation

Citations
  1. 2019Miyawaki, Ritsuro, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2019) New minerals and nomenclature modifications approved in 2019. CNMNC Newsletter No 48. Mineralogical Magazine, 83 (2) 315-317 doi:10.1180/mgm.2019.23DOI: 10.1180/mgm.2019.23
  2. 2020Biagioni, Cristian, Belmonte, Donato, Carbone, Cristina, Cabella, Roberto, Demitri, Nicola, Perchiazzi, Natale, Kampf, Anthony R., Bosi, Ferdinando (2020) Isselite, Cu6(SO4)(OH)10(H2O)4⋅H2O, a new mineral species from Eastern Liguria, Italy. Mineralogical Magazine, 84 (5) 653-661 doi:10.1180/mgm.2020.50 DOI: 10.1180/mgm.2020.50
  3. 2022(2022) Isselite. Handbook of Mineralogy. Mineralogical Society of America
