Jahnsite-(MnMnMg)

Mn2+Mn2+Mg2Fe3+2(PO4)4(OH)2 · 8H2O
IMA status
  • Approved
IMA symbol
Jah-MnMnMg
IMA approved
2018
Also known as
  • Jahnsiet-(MnMnMg)

Where it forms, where it's found

Type locality
Sapucaia mine
  1. Sapucaia do Norte
  2. Galiléia
  3. Minas Gerais
  4. Brazil

-18.9008°, -41.4844°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Yellow to honey-colored or greenish-yellow
Streak
Very pale yellow
Tenacity
brittle
Cleavage
Distinct/Good

(001)

Fracture
Irregular/Uneven
Density
2.625 g/cm³

Optical

Optical type
Biaxial (-) · 2V calc = 74°
Refractive index
1.616 – 1.656
Surface relief
Moderate
Principal indices
nα 1.616 · nβ 1.619 · nγ 1.656
UV response
None
Michel-Lévy diagramhighlighted lineδ = 0.0400
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]400 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation400 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P2/a
Cell parameters
a = 15.177(2) Å · b = 7.176(1) Å · c = 10.006(3) Å
Cell angles
β = 111.01(2) °
Ratio a:b:c
1 : 0.473 : 0.659
Z
2
Type-locality form

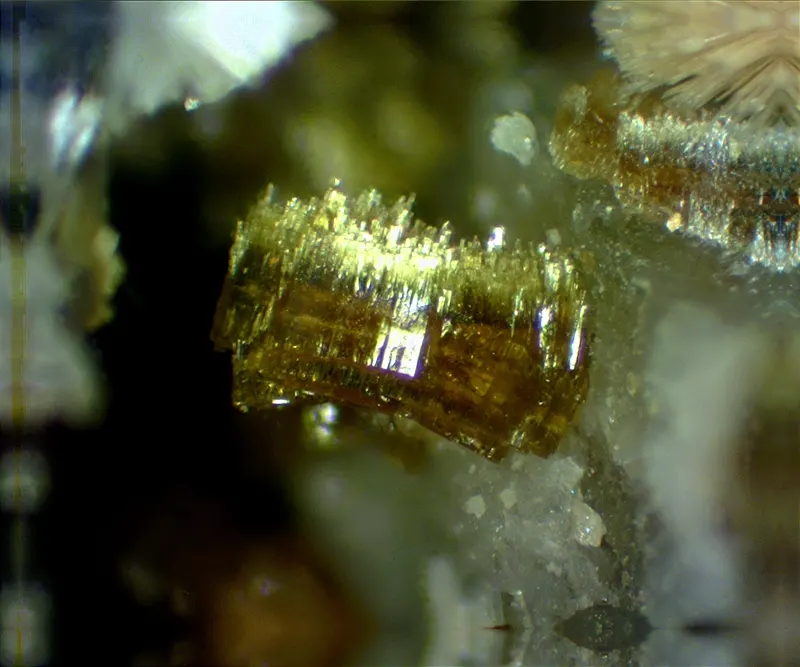

It forms prisms weakly elongated along a, flattened on [010], and twinned by reflection on (001) up to 200 μm in length.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2615.999415.974
50.23%
15PPhosphorusPhosphorus430.974123.896
14.96%
26FeIronIron255.845111.690
13.48%
25MnManganeseManganese254.938109.876
13.27%
12MgMagnesiumMagnesium224.30548.610
5.87%
1HHydrogenHydrogen181.00818.144
2.19%
Total828.190100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Jahnsiet-(MnMnMg)

In other languages

German
IMA 2017-118 · Jahnsit-(MnMnMg)
Italian
Jahnsite- · jahnsite-(MnMnMg)

Classification

Strunz
10th ed.

8.DH.15

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DHWith large and medium-sized cations, (OH, etc.):RO4 < 1:1Group
  • 8.DH.15Jahnsite-(MnMnMg)Species

Group, growth & confusion

Literature, links & citation

Citations
  1. 2012Baijot, M., Hatert, F., Philippo, S. (2012) Mineralogy and geochemistry of phosphates and silicates in the Sapucaia pegmatite, Minas Gerais, Brazil: Genetic implications. The Canadian Mineralogist, 50 (6) 1531-1554 doi:10.3749/canmin.50.6.1531DOI: 10.3749/canmin.50.6.1531
  2. 2018Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2018) CNMNC Newsletter No 43, New minerals and nomenclature modifications approved in 2018. Mineralogical Magazine, 82 (3) 779-785 doi:10.1180/mgm.2018.72DOI: 10.1180/mgm.2018.72
  3. 2019Vignola, Pietro, Hatert, Frédéric, Baijot, Maxime, Rotiroti, Nicola, Risplendente, Andrea, Varvello, Sergio (2019) Jahnsite-(MnMnMg), Mn2+Mn2+Mg2+2Fe3+2(PO4)4(OH)2·8H2O, a new phosphate mineral species from Sapucaia pegmatite, Sapucaia Do Norte, Galiléia, Minas Gerais, Brazil. The Canadian Mineralogist, 57 (3) 363-370 doi:10.3749/canmin.1800078DOI: 10.3749/canmin.1800078
  4. 2021(2021) Jahnsite-(MnMnMg). Handbook of Mineralogy. Mineralogical Society of America
