Jahnsite-(MnMnZn)

Mn2+Mn2+Zn2Fe3+2(PO4)4(OH)2 · 8H2O
IMA status
  • Approved
IMA symbol
Jah-MnMnZn
IMA approved
2018
Also known as
  • IMA2017-113
  • Jahnsiet-(MnMnZn)

Where it forms, where it's found

Type locality
Herdade dos Pendões Mine
  1. São Luís
  2. Odemira
  3. Beja
  4. Portugal

37.6425°, -8.6311°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
light golden brown
Streak
white
Tenacity
brittle
Cleavage
Distinct/Good

parallel to (001)

Fracture
Irregular/Uneven · Splintery
Density
2.89 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 1.662°
Refractive index
1.655 – 1.67
Surface relief
High
Principal indices
nα 1.655 · nβ 1.662 · nγ 1.67
Pleochroism
Visible

X nearly colourless, Y and Z beige;

Michel-Lévy diagramhighlighted lineδ = 0.0150
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]150 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation150 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P2/a
Cell parameters
a = 15.222(6) Å · b = 7.187(6) Å · c = 10.028(5) Å
Cell angles
β = 111.746(16) °
Ratio a:b:c
1 : 0.472 : 0.659
Z
2
Type-locality form

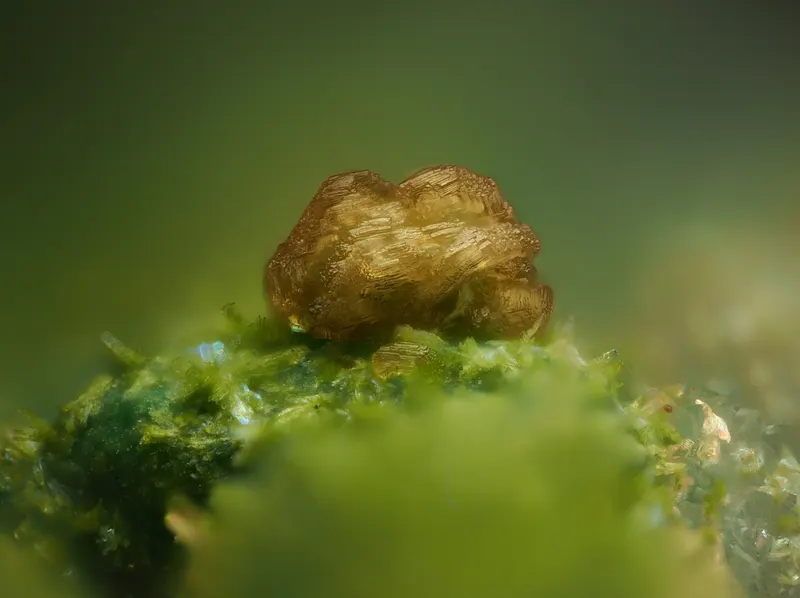

Sub-parallel bundles of light golden brown prisms up to 0.3 mm long.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2615.999415.974
45.70%
30ZnZincZinc265.380130.760
14.36%
15PPhosphorusPhosphorus430.974123.896
13.61%
26FeIronIron255.845111.690
12.27%
25MnManganeseManganese254.938109.876
12.07%
1HHydrogenHydrogen181.00818.144
1.99%
Total910.340100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2017-113
  • Jahnsiet-(MnMnZn)

In other languages

German
IMA 2017-113 · Jahnsit-(MnMnZn)
Italian
IMA2017-113 · Jahnsite- · jahnsite-(MnMnZn)

Classification

Strunz
10th ed.

8.DH.15

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DHWith large and medium-sized cations, (OH, etc.):RO4 < 1:1Group
  • 8.DH.15Jahnsite-(MnMnZn)Species

Group, growth & confusion

Literature, links & citation

Citations
  1. 2019Kampf, A. R., Alves, P., Kasatkin, A., & Škoda, R. (2019). Jahnsite-(MnMnZn), a new jahnsite-group mineral, and formal approval of the jahnsite group. European Journal of Mineralogy, 31(1), 167-172.
  2. 2021(2021) Jahnsite-(MnMnZn). Handbook of Mineralogy. Mineralogical Society of America
