Kircherite

[Na5Ca2K](Si6Al6O24)(SO4)2 · 0.33H2O
IMA status
  • Approved
IMA symbol
Kcr
IMA approved
2010
Also known as
  • IMA2009-084
  • Kircheriet

Where it forms, where it's found

Geological setting

Miarolitic cavities of a holocrystalline volcanic ejectum collected at Valle Biachella. Late-stage metasomatic processes related to the volcanic activity.

Type locality
Biachella Valley
  1. Sacrofano
  2. Metropolitan City of Rome Capital
  3. Lazio
  4. Italy

42.1292°, 12.4353°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colorless to light gray
Streak
White
Tenacity
brittle
Cleavage
Distinct/Good

{00.1}

Fracture
Irregular/Uneven
Density
2.42 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.502 – 1.51
Surface relief
Moderate
Principal indices
nω 1.510 · nε 1.502
Pleochroism
Non-pleochroic
UV response
Light pink under long-wave UV and deep red under short-wave UV.
Michel-Lévy diagramhighlighted lineδ = 0.0080
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]80 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation80 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
R3 2
Cell parameters
a = 12.8770(7) Å · c = 95.244(6) Å
Z
1
Parting
none
Type-locality form

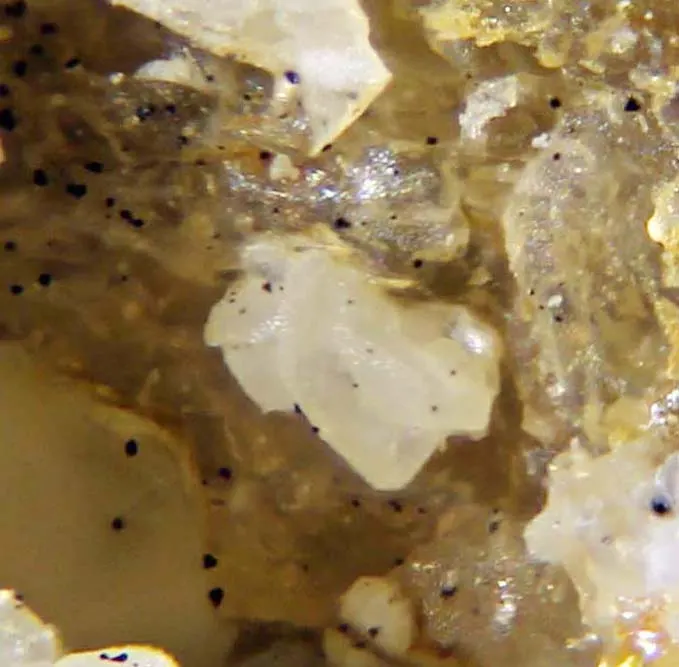

Parallel associations of hexagonal thin tabular shaped crystals.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen32.3315.999517.248
45.11%
14SiSiliconSilicon628.085168.510
14.70%
13AlAluminiumAluminium626.982161.892
14.12%
11NaSodiumSodium522.990114.950
10.02%
20CaCalciumCalcium240.07880.156
6.99%
16SSulfurSulfur232.06064.120
5.59%
19KPotassiumPotassium139.09839.098
3.41%
1HHydrogenHydrogen0.661.0080.665
0.06%
Total1146.639100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2009-084
  • Kircheriet

In other languages

German
IMA 2009-084 · Kircherit
Italian
kircherite

Classification

Strunz
10th ed.

9.FB.05

  • 9SilicatesClass
  • 9.FTektosilicates without zeolitic H2ODivision
  • 9.FBTektosilicates with additional anionsGroup
  • 9.FB.05KircheriteSpecies
Dana
8th ed.

76.02.09.26

  • 76Tectosilicates Al-si FrameworkClass
  • 76.02Al-Si Framework Feldspathoids and related speciesType
  • 76.02.09— unnamed intermediate level —Group
  • 76.02.09.26KircheriteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 2009Bellatreccia, F., Cámara, F., Della Ventura, G., Gunter, M.E., Cavallo, A., Sebastiani, m. (2009): Kircherite, a new cancrinite-sodalite group mineral from Sacrofano (Rome, Italy). HP-HT Laboratory of Experimental Volcanology and Geophysics, 2009 Annual Report, 2009, Report I 38.
  2. 2009Bellatreccia, F., Cámara, F., Della Ventura, G., Gunter, M.E., Cavallo, A., Sebastiani, M. (2009) Kircherite, a new cancrinite-sodalite group mineral from Sacrofano (Rome, Italy). HP-HT Laboratory of Experimental Volcanology and Geophysics, 2009 Annual Report 2009, 38-38.
  3. 2010Bellatreccia, F. et al. (2010): Kircherite, a new mineral of the cancrinitesodalite group with a 36-layer stacking sequence: occurrence and crystal structure. 20th General Meeting of the IMA (IMA2010), Budapest, Hungary, August 21-27, CD of Abstracts, p. 493.
  4. 2012Cámara, F., Bellatreccia, F., Ventura, G. D., Gunter, M. E., Sebastiani, M., & Cavallo, A. (2012). Kircherite, a new mineral of the cancrinite-sodalite group with a 36-layer stacking sequence: Occurrence and crystal structure. American Mineralogist, 97(8-9), 1494-1504.
  5. 2017(2017) Kircherite. Handbook of Mineralogy. Mineralogical Society of America
Cite this entry
@misc{mineral2026,
  author    = {Mineral Index editorial board},
  title     = {Kircherite — Mineral Index},
  year      = {2026},
  url       = {https://mineralindex.org/minerals/kircherite-39877},
  note      = {Accessed 2026-05-11}
}
