Koritnigite

Zn(AsO3OH) · H2O
IMA status
  • Approved
IMA symbol
Kor
Discovered
1978
IMA approved
1978
Also known as
  • IMA1978-008
  • Koritnigiet

Where it forms, where it's found

Geological setting

Oxidized zone of a polymetallic ore body.

Type locality
Tsumeb Mine (Ongopolo Mine)
  1. Tsumeb
  2. Oshikoto Region
  3. Namibia

-19.2270°, 17.7276°

12recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colorless to white
Streak
White
Tenacity
flexible
Cleavage
Perfect

(010) perfect; shows traces || [001] and [100]

Density
3.54 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 70° · 2V calc = 72°
Refractive index
1.632 – 1.693
Surface relief
High
Principal indices
nα 1.632 · nβ 1.652 · nγ 1.693
Birefringence
0.061
Pleochroism
Non-pleochroic
Dispersion
weak to distinct
Extinction
Z ∧ c = 22°; X = b.
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.0610
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]610 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation610 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
P-1
Cell parameters
a = 7.948 Å · b = 15.829 Å · c = 6.668 Å
Cell angles
α = 90.86 ° · β = 96.56 ° · γ = 90.05 °
Ratio a:b:c
1 : 1.992 : 0.839
Z
8
Morphology

Wide bladed to acicular.

Type-locality form

No euhedral crystals.

Comment

Neues Jahrbuch MA 138:316 (1980) structure.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen515.99979.995
35.82%
33AsArsenicArsenic174.92274.922
33.55%
30ZnZincZinc165.38065.380
29.28%
1HHydrogenHydrogen31.0083.024
1.35%
Total223.321100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1978-008
  • Koritnigiet

In other languages

German
IMA 1978-008 · Koritnigit
Italian
Koritnigite

Classification

Strunz
10th ed.

8.CB.20

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CBWith only medium-sized cations, RO4:H2O = 1:1Group
  • 8.CB.20KoritnigiteSpecies
Dana
8th ed.

39.01.04.01

  • 39Hydrated Acid Phosphates, Arsenates and VanadatesClass
  • 39.01A[HXO4]·xH2OType
  • 39.01.04— unnamed intermediate level —Group
  • 39.01.04.01KoritnigiteSpecies
CIM

20.3.3

  • 20Arsenates (also arsenates with phosphate, but without other anions)Class
  • 20.3Arsenates of Zn, Cd or HgGroup
  • 20.3.3KoritnigiteSpecies

Group, growth & confusion

In the same group
2 members

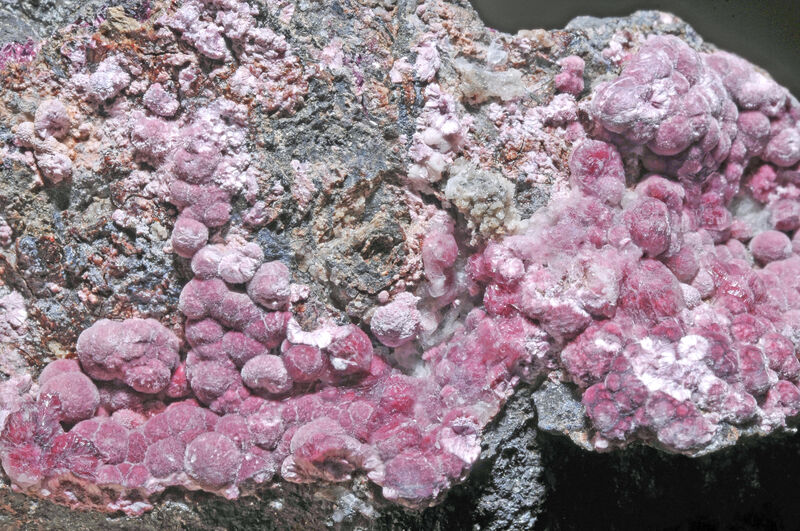

Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 1979Keller, P., Hess, H., Süsse, P., Schnorrer, G., Dunn, P.J. (1979) Koritnigit, Zn[H2O/OH/AsO3], ein neues Mineral aus Tsumeb, Südwestafrika. Tschermaks mineralogische und petrographische Mitteilungen: 26: 51-58.
  2. 1980Fleischer, M.; Mandarino, J.A.; Pabst, A. (1980) New mineral names. American Mineralogist, 65 (1-2). 205-210
  3. 1980Keller, P., Hess, H., Riffel, H. (1980) Die Kristallstruktur von Koritnigit, Zn[H2O|HOAsO3]. Neues Jahrbuch für Mineralogie, Abhandlungen, 138, 316-332.
  4. 1980Schnorrer-Köhler, G. (1980) Koritnigit und Helmutwinklerit - zwei neue Minerale von Tsumeb (SW-Afrika). Der Aufschluss 31, 43-49.
  5. 1983Der Aufschluss (1983) 34, 5-8.
