Langisite

CoAs
IMA status
  • Approved
IMA symbol
Lgi
Discovered
1969
Also known as
  • IMA1968-023
  • Langisiet

Where it forms, where it's found

Geological setting

In an arsenide-sulphide assemblage in a fault vein rich in silver.

Type locality
Langis Mine (Casey Cobalt
  1. Casey-Seneca)
  2. Casey Township
  3. Cobalt Area
  4. Cobalt-Gowganda region
  5. Timiskaming District
  6. Ontario
  7. Canada

47.5811°, -79.5806°

7recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789106 – 6.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Pink
Density
8.17 g/cm³

Optical

Pleochroism
Weak
Optical colour
pinkish-tan
Anisotropism
Medium, bluish-grey to light brown
Bireflectance
Very weak
Tropism
Anisotropic
Reflectance R%
(45.4,46.4) 470, (46.4,47.1) 546, (47.5,48.2) 589, (49.9,51.0) 650
Reflected-light panel
47.3 %anisotropic · dual curve
Specimen sRGB 246, 168, 92
White reference100 % reflector under same lamp
R₁ R₂
Mode
Bireflectance
Very weak
Anisotropism
Medium, bluish-grey to light brown
Reflected colour
pinkish-tan

Crystallography

Crystal system
Hexagonal
Space group
#104
Cell parameters
a = 3.538 Å · c = 5.127 Å
Z
2
Morphology

Minute irregular grains and lamellae.

Type-locality form

As irregular grains and lamellae in safflorite.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
33AsArsenicArsenic174.92274.922
55.97%
27CoCobaltCobalt158.93358.933
44.03%
Total133.855100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1968-023
  • Langisiet

In other languages

French
Langisite
German
IMA 1968-023 · Langisit
Italian
Langisite

Classification

Strunz
10th ed.

2.CC.05

  • 2Sulfides and SulfosaltsClass
  • 2.CMetal Sulfides, M: S = 1: 1 (and similar)Division
  • 2.CCWith Ni, Fe, Co, PGE, etc.Group
  • 2.CC.05LangisiteSpecies
Dana
8th ed.

02.08.11.09

  • 02SulfidesClass
  • 02.08AmXp, with m:p = 1:1Type

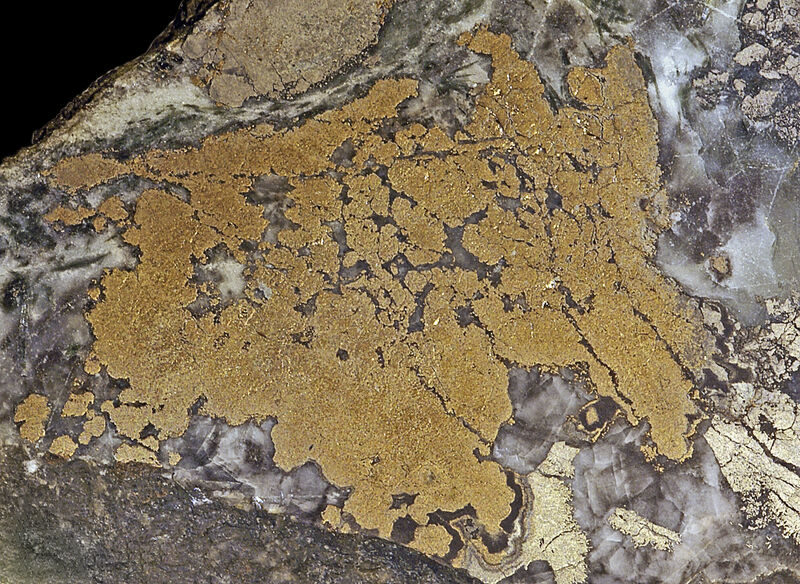

  • 02.08.11Nickeline Group (Hexagonal: P63/mmc)Group
  • 02.08.11.09LangisiteSpecies
CIM

3.11.33

  • 3Sulphides, Selenides, Tellurides, Arsenides and Bismuthides (except the arsenides, antimonides and bismuthides of Cu, Ag and Au, which are included in Section 1)Class
  • 3.11Sulphides etc. of NiGroup
  • 3.11.33LangisiteSpecies

Group, growth & confusion

In the same group
12 members
Often grow together
1 mineral
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1957Heyding, R. D.; Calvert, L. D. (1957) Arsenides of the transition metals: the arsenides of iron and cobalt. Canadian Journal of Chemistry, 35 (5). 449-457 doi:10.1139/v57-065DOI: 10.1139/v57-065
  2. 1969Petruk, W., Harris, D. C., Stewart, J. M. (1969) Langisite, a new mineral, and the rare minerals cobalt pentlandite, siegenite, parkerite, and bravoite from the Langis mine, Cobalt-Gowganda area, Ontario, Canada. The Canadian Mineralogist, 9 (5) 597-616
  3. 1971Petruk, W., Harris, D.C., Stewart, J.M. (1971) The silver-arsenide deposits of the Cobalt-Gowganda region, Ontario. Canadian Mineralogist, 11(1), 150-186.
  4. 1972Fleischer, M. (1972) New Mineral Names. American Mineralogist, 57 (11-12). 1909-1914
  5. 1984Fjellvåg, Helmer; Selte, Kari; Stave, Frank Endre; Maeda, Masunobu; Ohtaki, Hitoshi (1984) On the structural and magnetic properties of Co1-tNitAs and CoAs1-xSbx. Acta Chemica Scandinavica, 38. 687-691 doi:10.3891/acta.chem.scand.38a-0687DOI: 10.3891/acta.chem.scand.38a-0687
Cite this entry
@misc{mineral2026,
  author    = {Mineral Index editorial board},
  title     = {Langisite — Mineral Index},
  year      = {2026},
  url       = {https://mineralindex.org/minerals/langisite-2321},
  note      = {Accessed 2026-05-11}
}
