Liveingite

Pb20As24S56
IMA status
  • Approved
  • Grandfathered
IMA symbol
Liv
Discovered
1901
Also known as
  • Liveingiet
  • Rathit II
  • Rathite-II

Where it forms, where it's found

Geological setting

Hydrothermal

Type locality
Lengenbach Quarry
  1. Fäld
  2. Binn
  3. Goms
  4. Valais
  5. Switzerland

46.3653°, 8.2205°

5recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Lead gray
Streak
Chocolate-brown
Density
5.3 g/cm³

Optical

Optical colour
lead gray
Anisotropism
Distinct
Internal reflections
Deep red
Tropism
Anisotropic
Reflectance R%
(40.0,43.0) 400, (39.3,42.6) 420, (38.6,42.2) 440, (38.0,41.8) 460, (37.4,41.5) 480, (36.9,41.2) 500, (36.3,40.7) 520, (35.6,40.1) 540, (34.9,39.3) 560, (34.2,38.5) 580, (33.6,37.6) 600, (32.8,36.7) 620, (32.1,35.8) 640, (31.3,34.8) 660, (30.6,34.0) 680, (30.0,33.4) 700
Reflected-light panel
35.1 %anisotropic · dual curve
Specimen sRGB 205, 149, 87
White reference100 % reflector under same lamp
R₁ R₂
Mode
Anisotropism
Distinct
Reflected colour
lead gray
Internal reflections
Deep red

Crystallography

Crystal system
Monoclinic
Space group
P21
Cell parameters
a = 7.94 Å · b = 70.84 Å · c = 8.33 Å
Cell angles
β = 90.13 °
Ratio a:b:c
1 : 8.922 : 1.049
Z
4
Twinning

On (100). Irregular twin lamellae visible in polished section.

Type-locality form

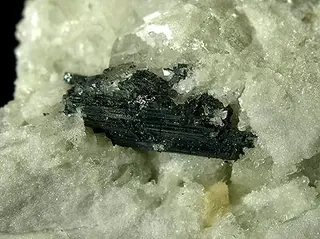

As crystals, elongated and striated along [001], to 5 cm.

Comment

Le Bihan (1961) gives the following unit-cell parameters: 8.43, 70.90, 7.91 Å, β 90.25°.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead20207.2004144.000
53.56%
33AsArsenicArsenic2474.9221798.128
23.24%
16SSulfurSulfur5632.0601795.360
23.20%
Total7737.488100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Liveingiet
  • Rathit II
  • Rathite-II

In other languages

German
Liveingit
Italian
liveingite

Classification

Strunz
10th ed.

2.HC.05c

  • 2Sulfides and SulfosaltsClass
  • 2.HSulfosalts of SnS archetypeDivision
  • 2.HCWith only PbGroup
  • 2.HC.05cLiveingiteSpecies
Dana
8th ed.

03.06.17.01

  • 03SulfosaltsClass
  • 03.062 < ø < 2.49Type
  • 03.06.17— unnamed intermediate level —Group
  • 03.06.17.01LiveingiteSpecies
CIM

5.6.3

  • 5Sulphosalts - Sulpharsenites and Sulphobismuthites (those containing Sn, Ge,or V are in Section 6)Class
  • 5.6Sulpharsenites etc. of Pb aloneGroup
  • 5.6.3LiveingiteSpecies

Group, growth & confusion

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1902Solly, R.H., Jackson, H. (1902) Liveingite, a new mineral from the Binnenthal. Proceedings of the Cambridge Philosophical Society: 11: 239-240.
  2. 1930Giuşcă, D. (1930) Die Erze der Lagerstätte vom Lengenbach im Binnental (Wallis). Schweiz. Mineralogische und Petrographische Mitteilungen: 10: 152-177.
  3. 1944Palache, Charles, Berman, Harry, Frondel, Clifford (1944) The System of Mineralogy (7th ed.) Vol. 1 - Elements, Sulfides, Sulfosalts, Oxides. John Wiley and Sons, New York.
  4. 1961Le Bihan, M. T. (1961) Structure de la rathite II. Comparaison entre les différentes structures connues de sulfures d'arsenic et de plomb. Acta Crystallographica, 14 (11) 1211-1212 doi:10.1107/s0365110x61003545DOI: 10.1107/s0365110x61003545
  5. 1967Nowacki, W. (1967) Sulfides and sulfosalts. XXXIX. Possible identity of liveingite with rathite-II. Neues Jahrbuch für Mineralogie, Monatshefte: 1967: 353-354 (in German).
