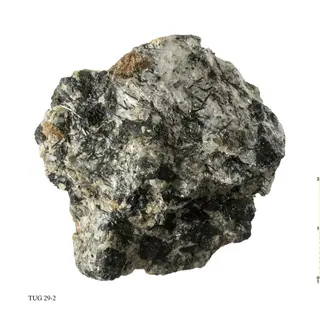

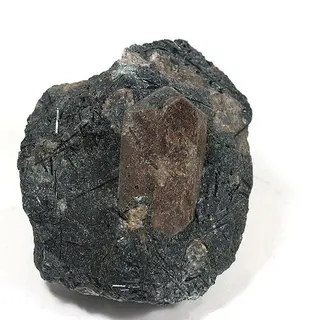

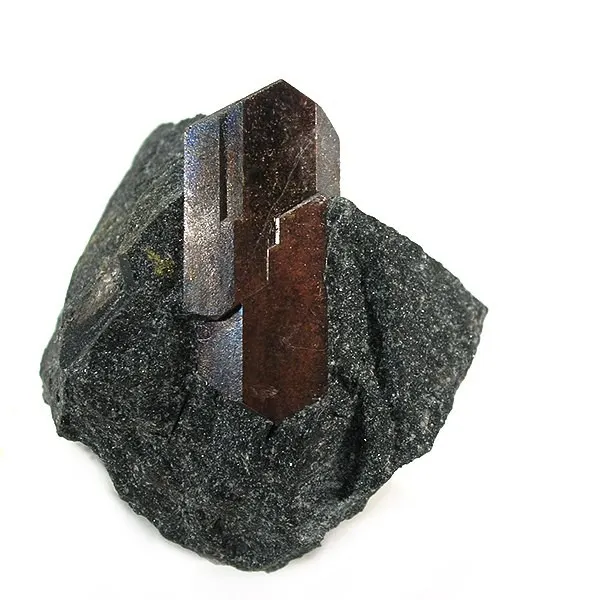

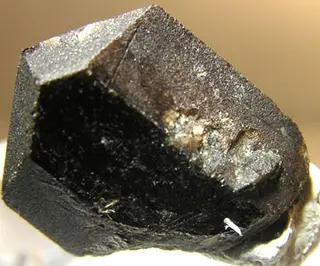

Lorenzenite

Na2Ti2O3(Si2O6)
IMA status
  • Approved
  • Grandfathered
IMA symbol
Lrz
Discovered
1897
Also known as
  • Lorenzeniet
  • Lorenzite
  • Ramsayit
  • +8 more

Where it forms, where it's found

Geological setting

Nepheline syenites and pegmatites

Type locality
Narssârssuk pegmatite
  1. Narsaarsuk Plateau
  2. Igaliku
  3. Kujalleq
  4. Greenland

61.0331°, -45.3778°

73recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Opaque
Colour
Pale purple-brown · pale pink to mauve · brown to black
Streak
White to pale brown
Cleavage
Distinct/Good

Distinct on (010)

Fracture
Irregular/Uneven
Density
3.42 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 38 – 41° · 2V calc = 34°
Refractive index
1.91 – 2.06
Surface relief
Very high
Principal indices
nα 1.91 – 1.95 · nβ 2.01 – 2.04 · nγ 2.03 – 2.06
Pleochroism
Weak

X=Y= pale reddish yellow, yellowish brown to light brown Z= pale yellow, brownish to dark brown

Dispersion
r > v distinct
Extinction
X = b; Y = a; Z = c.
UV response
Pale yellow to dull green in SW
Michel-Lévy diagramhighlighted lineδ = 0.1150
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1150 nm3rd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1150 nm
Order3rd order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#63
Cell parameters
a = 8.7128(10) Å · b = 5.2327(5) Å · c = 14.487(2) Å
Ratio a:b:c
1 : 0.601 : 1.663
Z
4
Morphology

Equant, bladed prismatic to needlelike

Comment

Cell parameters from Sundberg et al. (1987)

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen915.999143.991
42.12%
22TiTitaniumTitanium247.86795.734
28.00%
14SiSiliconSilicon228.08556.170
16.43%
11NaSodiumSodium222.99045.980
13.45%
Total341.875100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Zr
  • Al
  • Y
  • TR
  • La
  • Ce
  • Fe
  • Nb
  • Mn
  • Ca
  • Sr
  • F
  • H2O

Synonyms

  • Lorenzeniet
  • Lorenzite
  • Ramsayit
  • Ramsayita
  • Ramsayite
  • Ramzait
  • Ramzaita
  • Ramzaite
  • Unnamed (MSH UK-1)
  • Unnamed (MSH UK-16)
  • Unnamed (MSH UK-7)

In other languages

German
Lorenzenit
Italian
Lorenzenite
Chinese
矽鈉鈦礦
Russian
Лоренценит · Рамзаит

Classification

Strunz
10th ed.

9.DB.10

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DBInosilicates with 2-periodic single chains, Si2O6; Pyroxene-related mineralsGroup
  • 9.DB.10LorenzeniteSpecies
Dana
8th ed.

65.01.06.01

  • 65Inosilicates Single-width, Unbranched Chains, (w=1)Class
  • 65.01Single-Width Unbranched Chains, W=1 with chains P=2Type
  • 65.01.06Lorenzenite groupGroup
  • 65.01.06.01LorenzeniteSpecies
CIM

14.9.2

  • 14Silicates not Containing AluminumClass
  • 14.9Silicates of TiGroup
  • 14.9.2LorenzeniteSpecies

Group, growth & confusion

Often grow together
3 minerals

Literature, links & citation

Citations
  1. app. II, 65.
  2. 1898Flink, Gust. (1898) Berättelse om en Mineralogsik Resa i Syd-Grönland sommaren 1897. [Narrative of a Mineralogical Journey in South Greenland in the summer of 1897]. Meddelelser om Grønland, 14. 221-262 doi:10.7146/mog.v14.139846DOI: 10.7146/mog.v14.139846
  3. 1901Flink, G. (1901) Part I: On the Minerals from Narsarsuk on the Firth of Tunugdliarfik in Southern Greenland. Meddelelser om Grønland, 24. 7-180
  4. 1909Dana, Edward S., Ford, William E. (1909) A System of Mineralogy - Second Appendix to the Sixth Edition of Dana's System of Mineralogy. John Wiley & Sons.
  5. 1930Barth, T., Berman, H. (1930) Titanosilikate. lorenzenit und ramsayit. Chemie der Erde, 5, 40-41.
