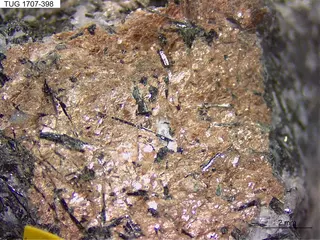

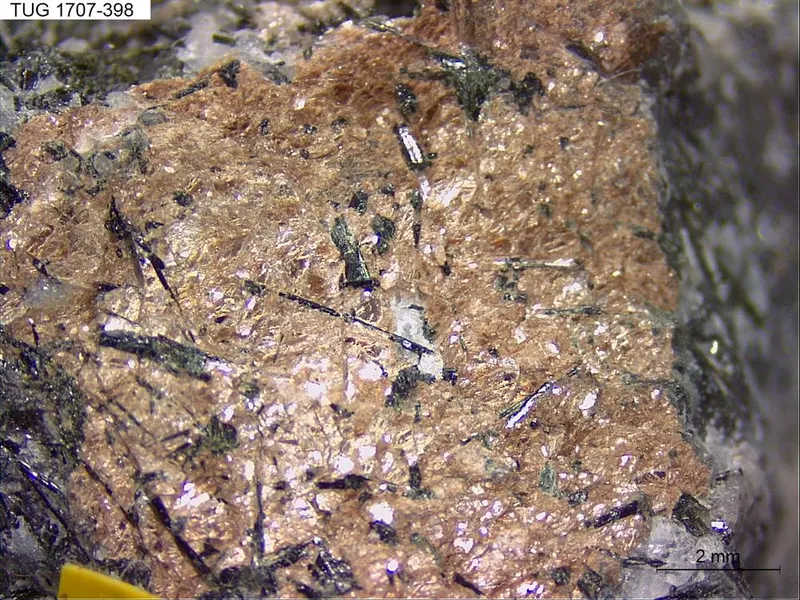

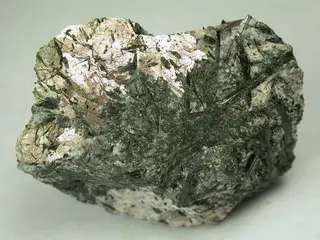

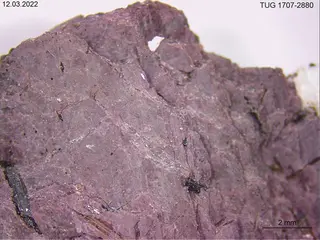

Murmanite

Na2Ti2Na2Ti2(Si2O7)2O4(H2O)4
IMA status
  • Approved
  • Grandfathered
IMA symbol
Mmn
Discovered
1923
Also known as
  • Mourmanit
  • Mourmanita
  • Mourmanite
  • +1 more

Where it forms, where it's found

Geological setting

Alkaline complex

Type locality
Chinglusuai River Valley
  1. Lovozersky District
  2. Murmansk Oblast
  3. Russia
21recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent · Opaque
Colour
Lilac to pink · alters to silvery white-yellow · brown to black.

cinnamon-brown to black when altered

Streak
Pink to red or brown
Tenacity
brittle
Cleavage
Perfect

(001)

Density
2.76 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 57 – 64° · 2V calc = 66 – 74°
Refractive index
1.682 – 1.839
Surface relief
High
Principal indices
nα 1.682 – 1.735 · nβ 1.765 – 1.770 · nγ 1.807 – 1.839
Pleochroism
Visible

X = light pink; Y = light brown; Z = pinkish brown to dark brown. Orientation X normal to (100).

Dispersion
r > v weak
Michel-Lévy diagramhighlighted lineδ = 0.1145
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1145 nm3rd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1145 nm
Order3rd order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#1
Cell parameters
a = 10.535(5) Å · b = 13.884(4) Å · c = 11.688(14) Å
Cell angles
α = 94.31(6) ° · β = 98.62(8) ° · γ = 89.81(3) °
Ratio a:b:c
1 : 1.318 : 1.109
Z
4
Morphology

well-formed crystals, to 2 cm. As flaky and lamellar segregations and radial and fine-grained aggregations

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2215.999351.978
46.57%
22TiTitaniumTitanium447.867191.468
25.33%
14SiSiliconSilicon428.085112.340
14.86%
11NaSodiumSodium422.99091.960
12.17%
1HHydrogenHydrogen81.0088.064
1.07%
Total755.810100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Zr
  • Fe
  • Ta
  • Mn
  • Mg
  • Ca
  • K
  • P

Synonyms

  • Mourmanit
  • Mourmanita
  • Mourmanite
  • Murmaniet

In other languages

German
Murmanit
Italian
Murmanite
Russian
Мурманит

Classification

Strunz
10th ed.

9.BE.27

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BESi2O7 groups, with additional anions; cations in octahedral [6] and greater coordinationGroup
  • 9.BE.27MurmaniteSpecies
Dana
8th ed.

56.02.07.02

  • 56Sorosilicates Si2o7 Groups, with Additional O, Oh, F and H2oClass
  • 56.02Si2O7 Groups and O, OH, F, and H2O with cations in [4] and/or >[4] coordinationType
  • 56.02.07Murmanite groupGroup
  • 56.02.07.02MurmaniteSpecies
CIM

17.8.2

  • 17Silicates Containing other AnionsClass
  • 17.8Silicates with niobate or tantalateGroup
  • 17.8.2MurmaniteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1930Gutkova, N. (1930) Sur un nouveau titano-silicate - la mourmanite de Lujawrurt. Doklady Akademii Nauk SSSR, seriya A: 27: 731-736.
  2. 1963Fleischer, Michael (1963) New Mineral Names. American Mineralogist, 48 (11-12) 1413-1421
  3. 1965Khalilov, A.D., Mamedov, K.S., Makarov, E.S., Pyanzina, L.A. (1965) Crystal structure of murmanite. Doklady Akademii Nauk SSSR: 161: 1409-1411.
  4. 1966Vlasov, K.A., Kuz'menko, M.V., Es'kova, E.M. (1966) The Lovozero alkali massif. Doklady Akademii Nauk SSSR: 347-351. (in English)
  5. 1986Karup-Møller, S. (1986) Murmanite from the Ilímaussaq alkaline complex, South Greenland. Neues Jahrbuch für Mineralogie - Abhandlungen: 155: 67-88.
