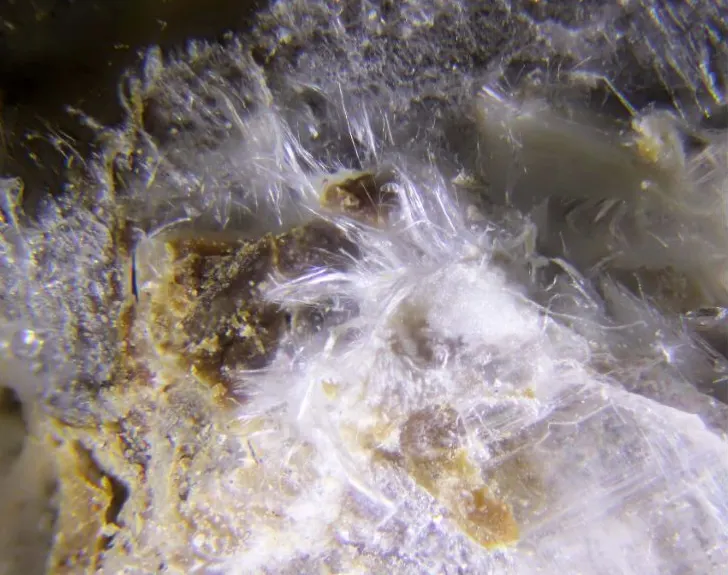

Loughlinite

Na2Mg3Si6O16 · 8H2O
IMA status
  • Approved
IMA symbol
Lou
Discovered
1960
Also known as
  • Loughliniet

Where it forms, where it's found

Geological setting

Originally found in dolomitic shale.

Type locality
Westvaco mine
  1. Green River Basin
  2. Sweetwater County
  3. Wyoming
  4. USA

41.6222°, -109.8113°

9recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789101/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
White
Streak
white
Tenacity
flexible
Fracture
Fibrous
Density
2.165 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 60° · 2V calc = 54°
Refractive index
1.5 – 1.525
Surface relief
Moderate
Principal indices
nα 1.500 · nβ 1.505 · nγ 1.525
Birefringence
0.025
Dispersion
relatively weak
Extinction
Parallel.
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.0250
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]250 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation250 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 14.66 Å · b = 26.71 Å · c = 5.26 Å
Ratio a:b:c
1 : 1.822 : 0.359
Z
4
Morphology

Fibrous aggregates, usually parallel.

Type-locality form

Fibrous, to 1 cm; massive

Comment

Space Group: Pncn:

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2415.999383.976
55.85%
14SiSiliconSilicon628.085168.510
24.51%
12MgMagnesiumMagnesium324.30572.915
10.60%
11NaSodiumSodium222.99045.980
6.69%
1HHydrogenHydrogen161.00816.128
2.35%
Total687.509100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Al
  • Fe

Synonyms

  • Loughliniet

In other languages

German
Loughlinit
Italian
Loughlinite

Classification

Strunz
10th ed.

9.EE.25

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EESingle tetrahedral nets of 6-membered rings connected by octahedral nets or octahedral bandsGroup
  • 9.EE.25LoughliniteSpecies
Dana
8th ed.

74.03.1b.03

  • 74Phyllosilicates Modulated LayersClass
  • 74.03Modulated Layers with joined stripsType
  • 74.03.1b— unnamed intermediate level —Group
  • 74.03.1b.03LoughliniteSpecies
CIM

14.4.12

  • 14Silicates not Containing AluminumClass
  • 14.4Silicates of MgGroup
  • 14.4.12LoughliniteSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 1960Fahey, J. J., Ross, Malcolm, Axelrod, J. M. (1960) Loughlinite, a new hydrous sodium magnesium silicate. American Mineralogist, 45 (3-4) 270-281
  2. 1961Fleischer, Michael (1961) New mineral names. American Mineralogist, 46 (3-4). 464-468
  3. 1962Biedl, A., Preisinger, A. (1962) Die Struktur des Loughlinit (Natrium-Sepiolith). Fortschritte der Mineralogie: 40: 50-51.
  4. 1962(1962) International Mineralogical Association: Commission on New Minerals and Mineral Names. Mineralogical Magazine and Journal of the Mineralogical Society, 33 (258) 260-263 doi:10.1180/minmag.1962.033.258.09 DOI: 10.1180/minmag.1962.033.258.09
  5. 1967Echle, Wolfram (1967) Loughlinit (Na-Sepiolith) und Analcim in neogenen Sedimenten Anatoliens. Contributions to Mineralogy and Petrology, 14 (2) 86-101 doi:10.1007/bf00377527DOI: 10.1007/bf00377527
