Magnesioneptunite

KNa2Li(Mg,Fe)2Ti2Si8O24
IMA status
  • Approved
IMA symbol
Mnpt
IMA approved
2009
Also known as
  • IMA2009-009
  • Magnesioneptuniet

Where it forms, where it's found

Geological setting

In a xenolith of altered sandstone (hornfels) located between skarnified carbonate xenoliths and ignimbrite.

Type locality
Xenolith no. 5
  1. Lakargi Mountain
  2. Upper Chegem volcanic caldera (Verkhnechegemskaya caldera)
  3. Chegemsky District
  4. Kabardino-Balkaria
  5. Russia
1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Dark brown to red-brown
Cleavage
Perfect

on (110)

Density
3.15 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 45° · 2V calc = 78°
Refractive index
1.697 – 1.725
Surface relief
High
Principal indices
nα 1.697 · nβ 1.708 · nγ 1.725
Pleochroism
Visible

X = light greenish brown to very light brown, Y= light brown, Z = brown

Michel-Lévy diagramhighlighted lineδ = 0.0280
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]280 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation280 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/c
Cell parameters
a = 16.3271(7) Å · b = 12.4788(4) Å · c = 9.9666(4) Å
Cell angles
β = 115.6519(5) °
Ratio a:b:c
1 : 0.764 : 0.610
Unit cell volume
1830.5 ų
Z
4
Type-locality form

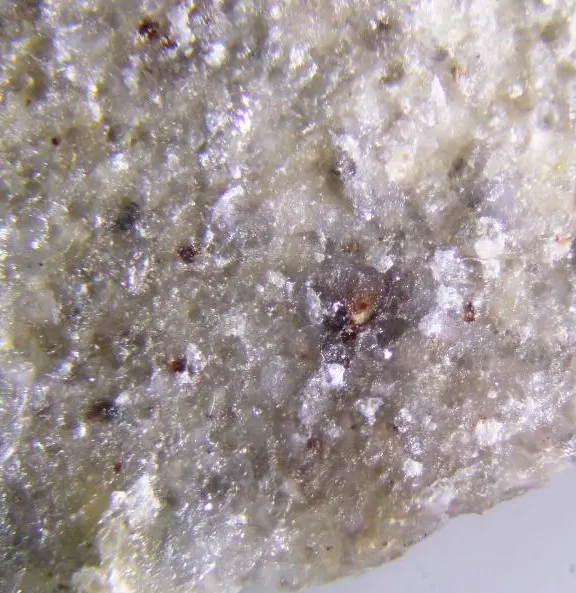

Nearly isometric grains and aggregates up to 0.1 mm in size in the cores of some grains of a Mg-rich variety of neptunite.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2415.999383.976
40.13%
14SiSiliconSilicon828.085224.680
23.48%
26FeIronIron255.845111.690
11.67%
22TiTitaniumTitanium247.86795.734
10.01%
12MgMagnesiumMagnesium224.30548.610
5.08%
11NaSodiumSodium222.99045.980
4.81%
19KPotassiumPotassium139.09839.098
4.09%
3LiLithiumLithium16.9406.940
0.73%
Total956.708100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2009-009
  • Magnesioneptuniet

In other languages

German
IMA 2009-009 · Magnesioneptunit
Italian
magnesioneptunite

Classification

Strunz
10th ed.

9.EH.05

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EHTransitional structures between phyllosilicate and other silicate unitsGroup
  • 9.EH.05MagnesioneptuniteSpecies
Dana
8th ed.

70.04.01.03

  • 70Inosilicates Column or Tube StructuresClass
  • 70.04Column or Tube Structures with linked chains forming cagesType
  • 70.04.01Neptunite groupGroup
  • 70.04.01.03MagnesioneptuniteSpecies

Group, growth & confusion

In the same group
4 members

Literature, links & citation

Citations
  1. 2010Karimova, O., Yakubovich, O., Zadov, A., Gazeev, V., Pertsev, N., Ivanova, A. (2010): The crystal structure of magnesioneptunite in the context of neptunite crystal chemistry. 26th European Crystallographic Meeting 29 August- 2 September 2010, Darmstadt, Germany, Abstract, 2010, MS16-P33.
  2. 2011Zadov, A.E., Gazeev, V.M., Karimova, O.V., Pertsev, K.N., Pekov, I.V., Galuskin, E.V., Galuskina, I.O., Gurbanov, A.G., Belakovsky, D.I., Borisovsky, S.E., Kartashev, P.M., Ivanova, A.G., Yakubovich, O.V. (2011): Magnesioneptunite KNa2Li(Mg,Fe)2Ti2Si8O24 - a new mineral of the neptunite group. Zapiski Rossiiskogo Mineralogicheskogo Obshchestva (Proceedings of the Russian Mineralogical Society), 140(1), 57-66 (in Russian). English translation: Geology of Ore Deposits, 53, 775-782.
  3. 2011Zadov, A. E., Gazeev, V. M., Karimova, O. V., Pertsev, N. N., Pekov, I. V., Galuskin, E. V., Galuskina, I. O., Gurbanov, A. G., Belakovsky, D. I., Borisovsky, S. E., Kartashov, P. M., Ivanova, A. G., Yakubovich, O. V. (2011) Magnesioneptunite, KNa2Li(Mg,Fe)2Ti2Si8O24, a new mineral species of the neptunite group. Geology of Ore Deposits, 53 (8) 775-782 doi:10.1134/s1075701511080186DOI: 10.1134/s1075701511080186
  4. 2012Karimova, O. V., Yakubovich, O. V., Zadov, A. E., Ivanova, A. G., Urusov, V. S. (2012) Crystal structure of magnesioneptunite. Crystallography Reports, 57 (4) 505-513 doi:10.1134/s1063774512020101DOI: 10.1134/s1063774512020101
  5. 2017(2017) Magnesioneptunite. Handbook of Mineralogy. Mineralogical Society of America
