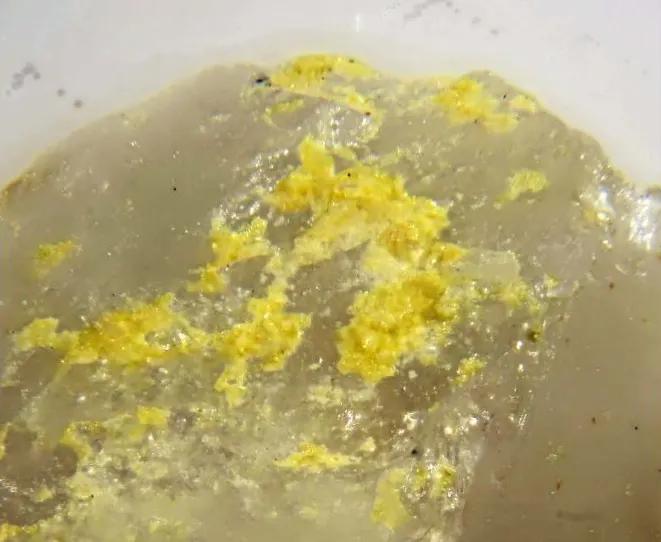

Mendozavilite-NaFe

[Na2(H2O)15Fe3+(H2O)6][Mo8P2Fe3+3O35(OH)2]
IMA status
  • Approved
IMA symbol
Mdz-NaFe
Discovered
1980
Also known as
  • IMA1982-009
  • Mendozaviliet-NaFe
  • Mendozavilit
  • +2 more

Where it forms, where it's found

Geological setting

Oxide zone of a pegmatite molybdenum deposit.

Type locality
San Judas Mine
  1. Cumobabi
  2. El Verde Mining District
  3. Cumpas Municipality
  4. Sonora
  5. Mexico

29.8694°, -109.9627°

4recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789101.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Empire yellow · orange · brown
Streak
Bright yellow
Density
3.85 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 5 – 15° · 2V calc = 62°
Refractive index
1.762 – 1.766
Surface relief
High
Principal indices
nα 1.762 · nβ 1.763 · nγ 1.766
Pleochroism
Weak

In pale yellows.

Dispersion
r > v, extreme
UV response
None
Notes

Absorption: Z > Y > X.

Michel-Lévy diagramhighlighted lineδ = 0.0040
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]40 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation40 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 18.82(12) Å · b = 11.03(14) Å · c = 15.18(12) Å
Cell angles
β = 129.8(3) °
Ratio a:b:c
1 : 0.586 : 0.807
Unit cell volume
2421 ų
Type-locality form

Crystals are small (~20 µm) but well-formed.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen5815.999927.942
44.80%
42MoMolybdenumMolybdenum895.950767.600
37.06%
26FeIronIron455.845223.380
10.79%
15PPhosphorusPhosphorus230.97461.948
2.99%
11NaSodiumSodium222.99045.980
2.22%
1HHydrogenHydrogen441.00844.352
2.14%
Total2071.202100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1982-009
  • Mendozaviliet-NaFe
  • Mendozavilit
  • Mendozavilita
  • Mendozavilite

In other languages

German
IMA 1982-009 · Mendozavilit-NaFe
Italian
Mendozavilite · Mendozavilite-NaFe

Classification

Strunz
10th ed.

7.GB.45

  • 7SulfatesClass
  • 7.GMolybdates, Wolframates and NiobatesDivision
  • 7.GBWith additional anions and/or H2OGroup
  • 7.GB.45Mendozavilite-NaFeSpecies
Dana
8th ed.

49.04.05.01

  • 49Hydrated Molybdates and TungstatesClass
  • 49.04Compound Molybdates and TungstatesType
  • 49.04.05— unnamed intermediate level —Group
  • 49.04.05.01Mendozavilite-NaFeSpecies
CIM

22.5.6

  • 22Phosphates, Arsenates or Vanadates with other AnionsClass
  • 22.5Phosphates, arsenates or vanadates with chromate, molybdate, niobate or tantalateGroup
  • 22.5.6Mendozavilite-NaFeSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 1986Williams, S.A. (1986) Mendozavilite and paramendozavilite, two new minerals from Cumobabi, Sonora. Boletín de Mineralogía:, 2. 13-19
  2. 1988Hawthorne, Frank C., Burke, Ernst A. J., Ercit, T. Scott, Grew, Edward S., Grice, Joel D., Jambor, John L., Puziewicz, Jacek, Roberts, Andrew C., Vanko, David A. (1988) New Mineral Names. American Mineralogist, 73 (1-2) 189-199
  3. 2011Williams, P. A., Hatert, F., Pasero, M., Mills, S. J. (2011) New minerals and nomenclature modifications approved in 2010, CNMNC Newsletter No 7. Mineralogical Magazine, 75 (1) 27-31 doi:10.1180/minmag.2011.075.1.27 DOI: 10.1180/minmag.2011.075.1.27
  4. 2012Kampf, A. R., Mills, S. J., Rumsey, M. S., Dini, M., Birch, W. D., Spratt, J., Pluth, J. J., Steele, I. M., Jenkins, R. A., Pinch, W. W. (2012) The heteropolymolybdate family: structural relations, nomenclature scheme and new species. Mineralogical Magazine, 76 (5) 1175-1207 doi:10.1180/minmag.2012.076.5.09DOI: 10.1180/minmag.2012.076.5.09
  5. 2021(2021) Mendozavilite-NaFe. Handbook of Mineralogy. Mineralogical Society of America
