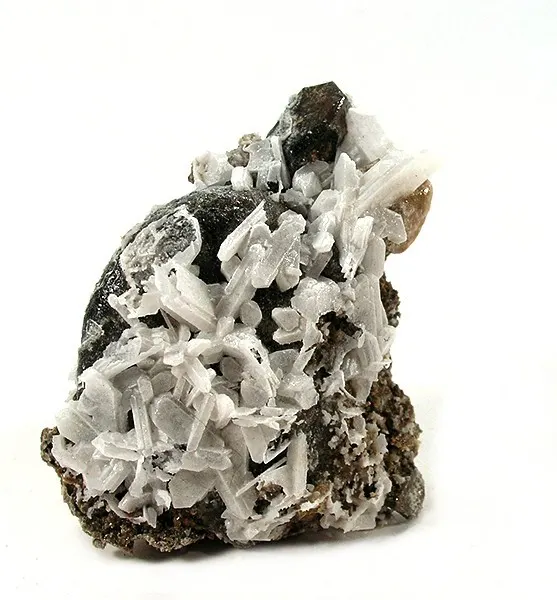

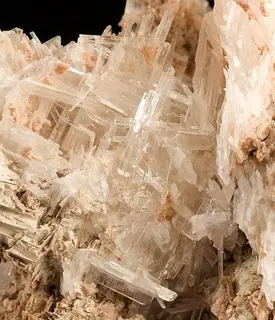

Meyerhofferite

CaB3O3(OH)5 · H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Mhf
Discovered
1914
Also known as
  • Meyerhofferiet

Where it forms, where it's found

Geological setting

A secondary borate mineral, formed as an alteration of inyoite.

Type locality
Monte Blanco Mine
  1. Monte Blanco
  2. Black Mountains
  3. Amargosa Range
  4. Inyo County
  5. California
  6. USA

36.3794°, -116.7678°

16recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colourless · white
Streak
White
Cleavage
Perfect

On (010) perfect; (100) and (110) in traces.

Density
2.12 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 78° · 2V calc = 78°
Refractive index
1.5 – 1.56
Surface relief
Moderate
Principal indices
nα 1.500 · nβ 1.535 · nγ 1.560
Dispersion
relatively weak
Extinction
X (165°,62°); Y (45°30′,47°); Z (-83°,55°) with c(0°,0°) and b<sup>∗</sup>(0°,90°) using (φ,ρ).
Michel-Lévy diagramhighlighted lineδ = 0.0600
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]600 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation600 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 6.632(1) Å · b = 8.337(1) Å · c = 6.4748(6) Å
Cell angles
α = 90.81(1) ° · β = 101.97(1) ° · γ = 86.76(1) °
Ratio a:b:c
1 : 1.257 : 0.976
Z
2
Morphology

Crystals elongated [001] and usually flattened (100). Fibrous. As pseudomorphs after inyoite. Forms include: Pinacoids: a(100), b(010), c(001) Positive prisms: k(370), l(120), A(350), j(450), m(110), q(210), n(520), s(310), B(510), r(810). Negative prisms: v(350), M(110), w(430), h(310). Positive domes: t(101), d{12.0.11}, e(706), f(605), g(504), i(705), x(302), z{12.0.1}. Negative dome: y(101). Pyramid: p(111).

Twinning

No twinning observed.

Type-locality form

Reticulated structures of white silky fibrous material. The crystals are prismatic and up to about 1 mm thick and 10 mm long.

Comment

Cell parameters are from Burns and Hawthorne (1993).

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen915.999143.991
64.41%
20CaCalciumCalcium140.07840.078
17.93%
5BBoronBoron310.81032.430
14.51%
1HHydrogenHydrogen71.0087.056
3.15%
Total223.555100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Meyerhofferiet

In other languages

French
meyerhofferite
German
Meyerhofferit
Italian
Meyerhofferite

Classification

Strunz
10th ed.

6.CA.30

  • 6BoratesClass
  • 6.CTriboratesDivision
  • 6.CANeso-triboratesGroup
  • 6.CA.30MeyerhofferiteSpecies
Dana
8th ed.

26.03.02.01

  • 26Hydrated Borates Containing Hydroxyl or HalogenClass
  • 26.03TriboratesType
  • 26.03.02— unnamed intermediate level —Group
  • 26.03.02.01MeyerhofferiteSpecies
CIM

9.3.17

  • 9BoratesClass
  • 9.3Borates of Ca and SrGroup
  • 9.3.17MeyerhofferiteSpecies

Group, growth & confusion

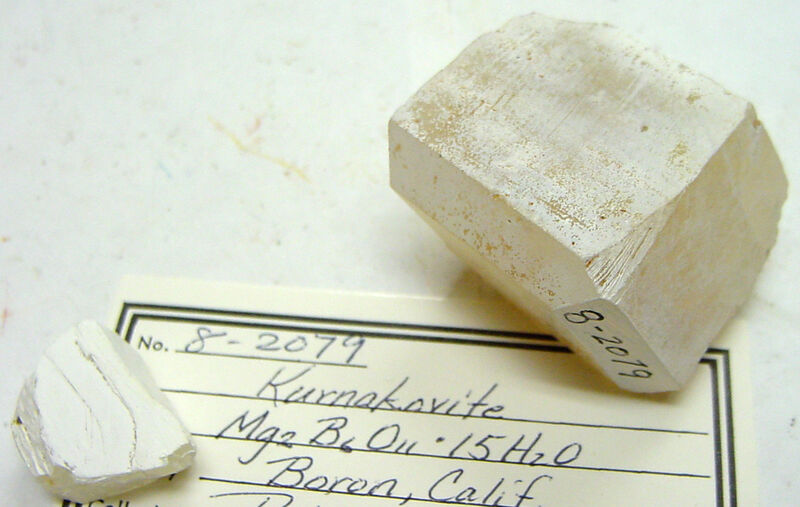

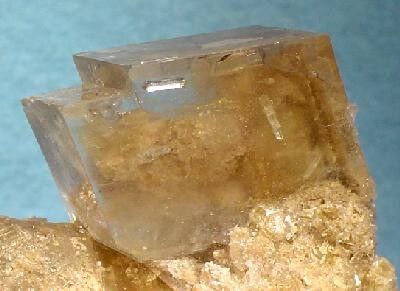

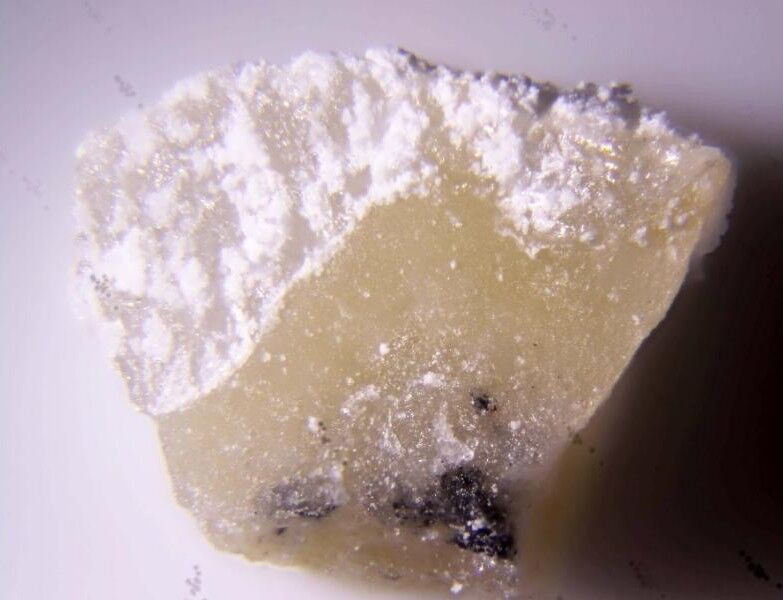

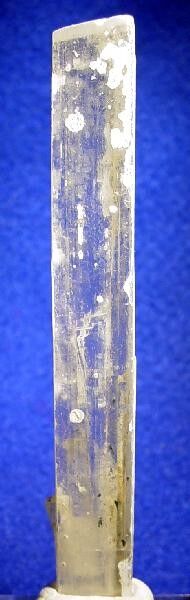

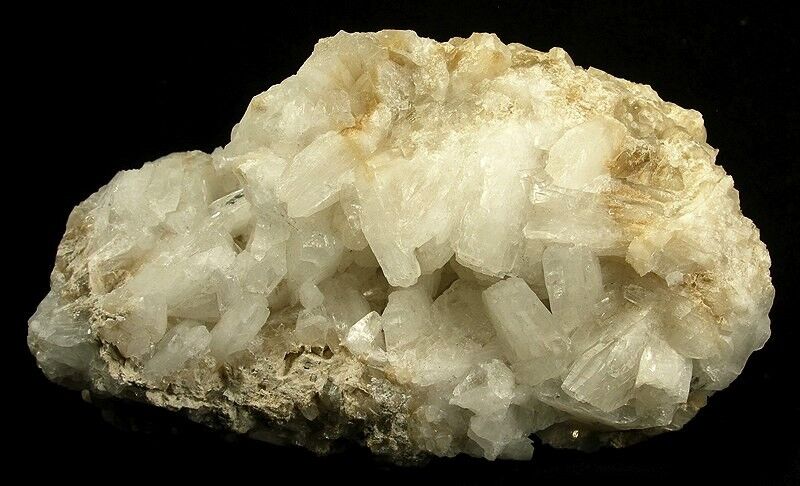

In the same group
5 members

Literature, links & citation

Citations
  1. 1914Schaller, W.T. (1914) Mineralogical notes. Koechlinite (bismuth molybdate), a new mineral from Schneeberg. Journal of the Washington Academy of Science: 4: 354-356 (355).
  2. 1916Schaller, Waldemar T. (1916) Inyoite and meyerhofferite, two new calcium borates. United States Geological Survey Bulletin 610 (Mineralogical Notes Series 3): 35-55. https://pubs.usgs.gov/bul/0610/report.pdf
  3. 1938Palache, Charles (1938) Crystallography of meyerhofferite. American Mineralogist, 23 (10) 644-648
  4. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
  5. 1953Christ, C. L. (1953) Studies of borate minerals (II) : X-ray crystallography of inyoite and meyerhofferite; X-ray and morphological crystallography of CaO·3B2O3·9H2O. American Mineralogist, 38 (11-12) 912-918
