Minyulite

KAl2(PO4)2F · 4H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Myu
Discovered
1933
Also known as
  • Minyuliet

Where it forms, where it's found

Geological setting

Weathered glauconitic phosphatic ironstone.

Type locality
Minyulo Well
  1. Dandaragan
  2. Dandaragan Shire
  3. Western Australia
  4. Australia

-30.6868°, 115.6618°

32recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Silky
Transparency
Transparent
Colour
Colourless · white · pale pink · pale green · pale yellow · colourless in transmitted light.
Streak
White
Tenacity
brittle
Density
2.47 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 70° · 2V calc = 82°
Refractive index
1.531 – 1.538
Surface relief
Moderate
Principal indices
nα 1.531 · nβ 1.534 · nγ 1.538
Dispersion
relatively weak
Michel-Lévy diagramhighlighted lineδ = 0.0070
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]70 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation70 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#28
Cell parameters
a = 9.34 Å · b = 9.74 Å · c = 5.52 Å
Ratio a:b:c
1 : 1.043 : 0.591

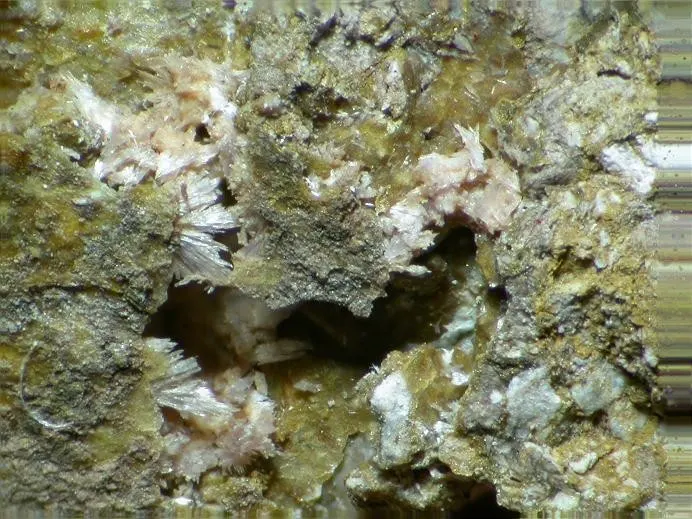

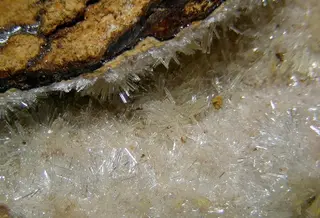

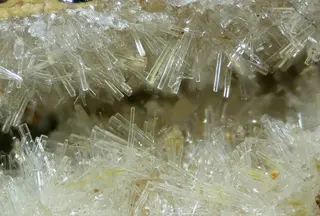

Morphology

Radiating fibrous to prismatic crystals, elongated [001] with (110) and (111) terminations. Commonly in subparallel growth or as spherules.

Type-locality form

Fibrous; closely resembling wavellite. Dense radiating groups of fine fibers.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1215.999191.988
51.32%
15PPhosphorusPhosphorus230.97461.948
16.56%
13AlAluminiumAluminium226.98253.964
14.43%
19KPotassiumPotassium139.09839.098
10.45%
9FFluorineFluorine118.99818.998
5.08%
1HHydrogenHydrogen81.0088.064
2.16%
Total374.060100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Minyuliet

In other languages

French
Minyulite
German
Minyulit
Spanish
Minyulita
Italian
minyulite

Classification

Strunz
10th ed.

8.DH.05

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DHWith large and medium-sized cations, (OH, etc.):RO4 < 1:1Group
  • 8.DH.05MinyuliteSpecies
Dana
8th ed.

42.11.05.01

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.11(AB)3(XO4)2Zq·xH2OType
  • 42.11.05— unnamed intermediate level —Group
  • 42.11.05.01MinyuliteSpecies
CIM

22.1.15

  • 22Phosphates, Arsenates or Vanadates with other AnionsClass
  • 22.1Phosphates, arsenates or vanadates with fluorideGroup
  • 22.1.15MinyuliteSpecies

Group, growth & confusion

Often grow together
2 minerals

Literature, links & citation

Citations
  1. 1933Simpson, E.S., Le Mesurier, C.R. (1933) Minyulite, a new phosphate mineral from Dandaragan, W.A.. Journal of the Royal Society of Western Australia: 19: 13-16.
  2. 1933Foshag, W.F. (1933) New mineral names. American Mineralogist: 18: 512-512.
  3. 1943Spencer, L. J., Bannister, F. A., Hey, M. H., Bennett, Hilda (1943) Minyulite (hydrous K-Al fluophosphate) from South Australia. Mineralogical Magazine and Journal of the Mineralogical Society, 26 (181) 309-314 doi:10.1180/minmag.1943.026.181.01 DOI: 10.1180/minmag.1943.026.181.01
  4. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
  5. 1973Murray, C.G. (1973) Fluellite and Minyulite from Wolffdene, near Beenleigh, Queensland - Geological Survey of Queensland, Government Mining Journal: 862: 271-274.
