Overite

CaMgAl(PO4)2(OH) · 4H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Ove
Discovered
1938
Also known as
  • Overiet

Where it forms, where it's found

Geological setting

Altered phosphate nodules in sedimentary rocks.

Complex granitic pegmatite.

Type locality
Clay Canyon
  1. Fairfield
  2. Sunshine Mining District
  3. Utah County
  4. Utah
  5. USA

40.2764°, -112.1604°

8recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Light apple-green to colourless · colourless in transmitted light.
Cleavage
Perfect

On (010), perfect; on (100), poor.

Density
2.53 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 75° · 2V calc = 88°
Refractive index
1.568 – 1.58
Surface relief
Moderate
Principal indices
nα 1.568 · nβ 1.574 · nγ 1.58
Dispersion
r > v strong
Michel-Lévy diagramhighlighted lineδ = 0.0120
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]120 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation120 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#61
Cell parameters
a = 14.723(14) Å · b = 18.746(16) Å · c = 7.107(4) Å
Ratio a:b:c
1 : 1.273 : 0.483
Z
8
Morphology

Crystals platy to lathlike, flattened on (010) and elongated along [001]. Forms exhibited include (010), (100), (110), (121), and (021). Commonly forms subparallel aggregates; massive.

Type-locality form

Pale green to colorless vitreous crystals in cavities in the variscite nodules.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1315.999207.987
56.16%
15PPhosphorusPhosphorus230.97461.948
16.73%
20CaCalciumCalcium140.07840.078
10.82%
13AlAluminiumAluminium126.98226.982
7.28%
12MgMagnesiumMagnesium124.30524.305
6.56%
1HHydrogenHydrogen91.0089.072
2.45%
Total370.372100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Overiet

In other languages

German
Overit
Italian
Overite

Classification

Strunz
10th ed.

8.DH.20

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DHWith large and medium-sized cations, (OH, etc.):RO4 < 1:1Group
  • 8.DH.20OveriteSpecies
Dana
8th ed.

42.11.01.01

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.11(AB)3(XO4)2Zq·xH2OType
  • 42.11.01Overite GroupGroup
  • 42.11.01.01OveriteSpecies
CIM

19.8.11

  • 19PhosphatesClass
  • 19.8Phosphates of Al and other metalsGroup
  • 19.8.11OveriteSpecies

Group, growth & confusion

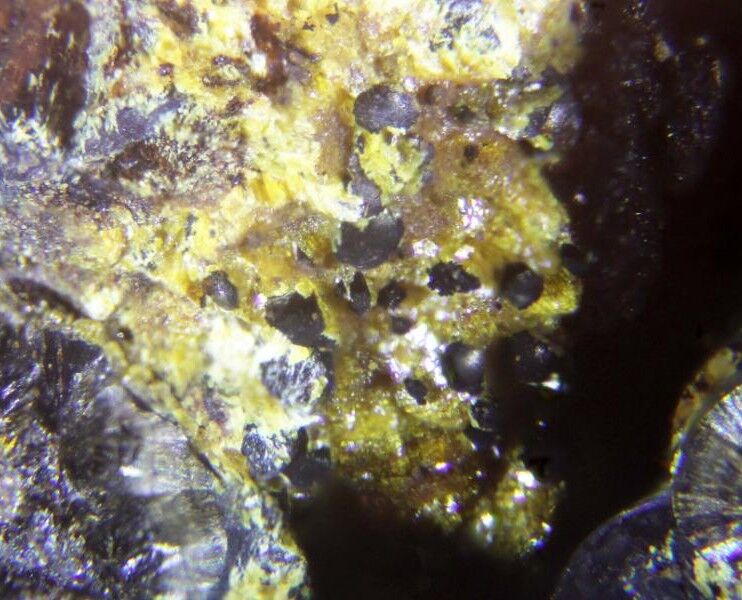

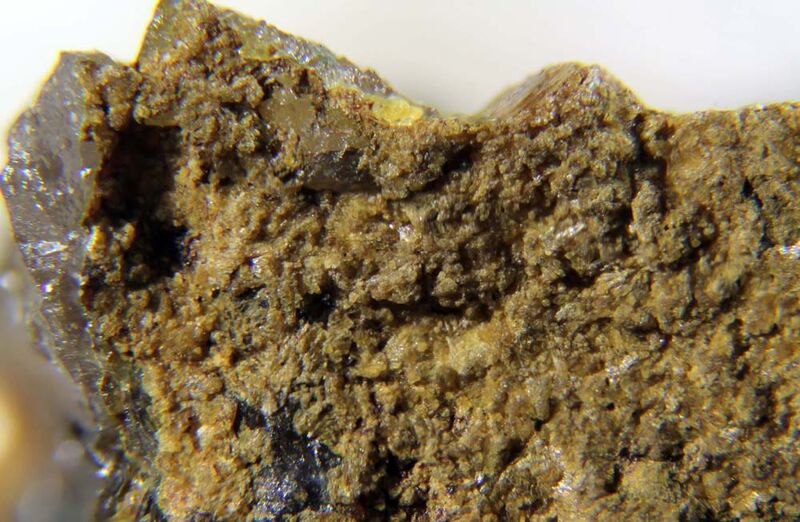

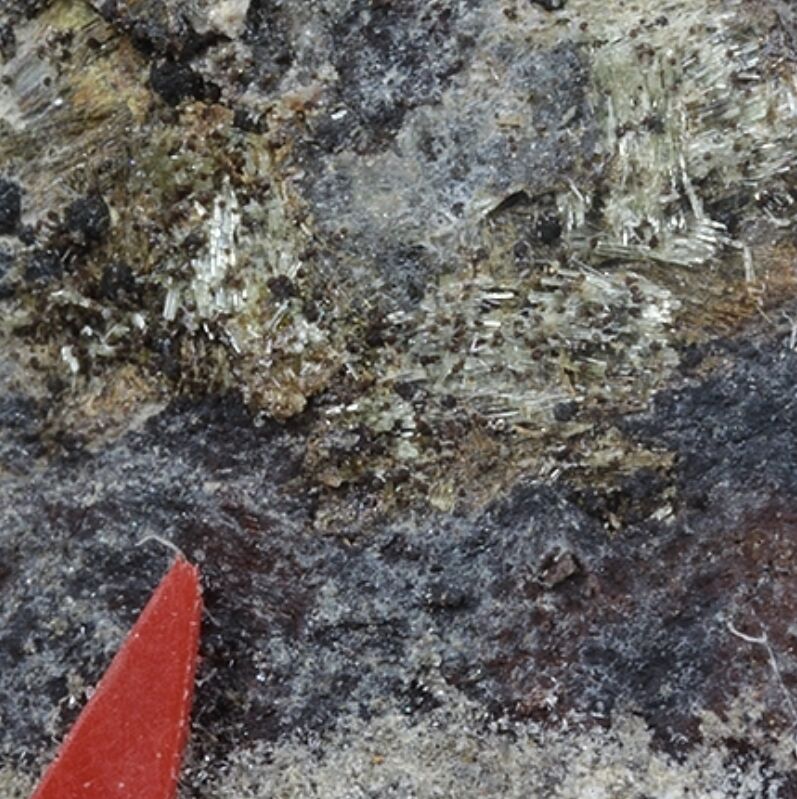

In the same group
3 members

Literature, links & citation

Citations
  1. 1930Larsen, Esper S., Shannon, Earl V. (1930) The minerals of the phosphate nodules from near Fairfield, Utah. American Mineralogist, 15 (8) 307-337
  2. 1940Larsen, Esper S., 3d, (1940) Overite and montgomeryite: two new minerals from Fairfield, Utah. American Mineralogist, 25 (5) 315-326
  3. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
  4. 1974Moore, Paul Brian, Ito, J. (1974) I. Jahnsite, segelerite, and robertsite, three new transition metal phosphate species. II. Redefinition of overite, an isotype of segelerite. III. Isotypy of robertsite, mitridatite, and arseniosiderite. American Mineralogist, 59 (1-2) 48-59
  5. 1977Moore, Paul B., Araki, Takaharu (1977) Overite, segelerite, and jahnsite: a study in combinatorial polymorphism. American Mineralogist, 62 (7-8) 692-702
