Segelerite

CaMgFe3+(PO4)2(OH) · 4H2O
IMA status
  • Approved
IMA symbol
Sgl
IMA approved
1973
Also known as
  • IMA1973-023
  • Segeleriet
  • Seglerit
  • +2 more

Where it forms, where it's found

Geological setting

Complex zoned pegmatite. Alteration of triphylite.

National Museum of Natural History (Smithsonian), Washington, D.C., USA, 127154.

Type locality
Tip Top Mine
  1. Fourmile
  2. Custer Mining District
  3. Custer County
  4. South Dakota
  5. USA

43.7156°, -103.6694°

3recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Green · chartreuse · colorless · pale yellow
Streak
White
Cleavage
Perfect

Perfect on the (010)

Density
2.67 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 45 – 70° · 2V calc = 84°
Refractive index
1.618 – 1.65
Surface relief
Moderate
Principal indices
nα 1.618 · nβ 1.635 · nγ 1.65
Pleochroism
Visible

X = Y = colorless; Z = yellow.

Dispersion
r > v
Notes

Orientation: X = b; Y = a; Z = c. Absorption: Z > X = Y.

Michel-Lévy diagramhighlighted lineδ = 0.0320
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]320 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation320 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#64
Cell parameters
a = 14.826(5) Å · b = 18.751(4) Å · c = 7.307(1) Å
Ratio a:b:c
1 : 1.265 : 0.493
Z
8
Morphology

Type material: Long prismatic, striated parallel to the prism which is [001]. Nearly square outline, with lustrous (100), (010), {11O} and (121).

Type-locality form

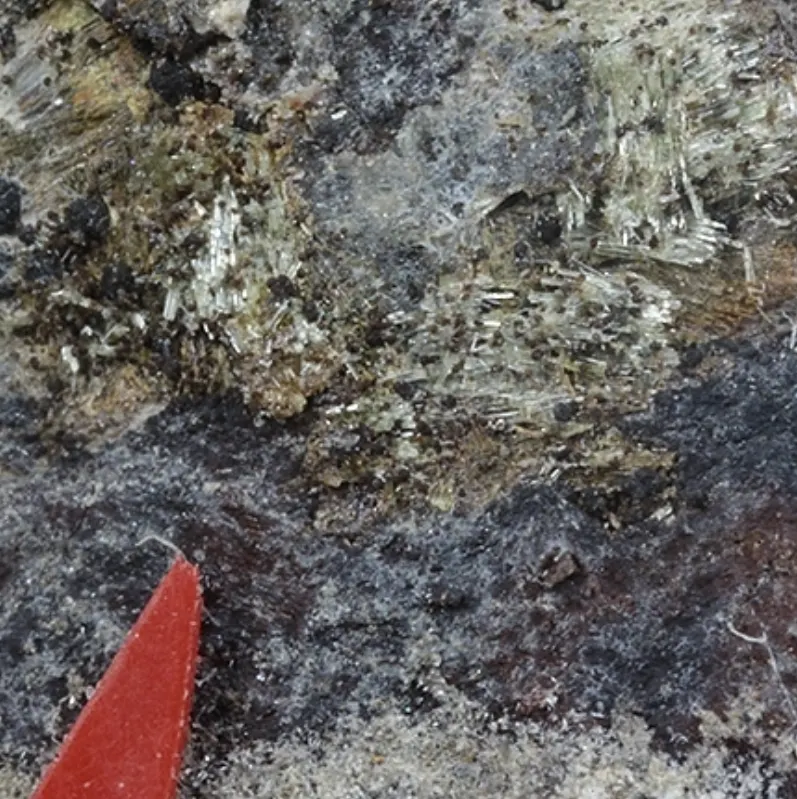

Striated prisms along joint fractures in dense ferrisicklerite-rockbridgeite. Crystals to 0.5 mm in length.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1315.999207.987
52.09%
15PPhosphorusPhosphorus230.97461.948
15.52%
26FeIronIron155.84555.845
13.99%
20CaCalciumCalcium140.07840.078
10.04%
12MgMagnesiumMagnesium124.30524.305
6.09%
1HHydrogenHydrogen91.0089.072
2.27%
Total399.235100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1973-023
  • Segeleriet
  • Seglerit
  • Seglerita
  • Seglerite

In other languages

French
segelerite
German
IMA 1973-023 · Segelerit
Spanish
Segelerita · Segelerite
Italian
Segelerite

Classification

Strunz
10th ed.

8.DH.20

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DHWith large and medium-sized cations, (OH, etc.):RO4 < 1:1Group
  • 8.DH.20SegeleriteSpecies
Dana
8th ed.

42.11.01.02

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.11(AB)3(XO4)2Zq·xH2OType
  • 42.11.01Overite GroupGroup
  • 42.11.01.02SegeleriteSpecies
CIM

19.14.21

  • 19PhosphatesClass
  • 19.14Phosphates of Fe and other metalsGroup
  • 19.14.21SegeleriteSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 1974Moore, Paul Brian, Ito, J. (1974) I. Jahnsite, segelerite, and robertsite, three new transition metal phosphate species. II. Redefinition of overite, an isotype of segelerite. III. Isotypy of robertsite, mitridatite, and arseniosiderite. American Mineralogist, 59 (1-2) 48-59
  2. 1977Moore, Paul B., Araki, Takaharu (1977) Overite, segelerite, and jahnsite: a study in combinatorial polymorphism. American Mineralogist, 62 (7-8) 692-702
  3. 2005(2005) Segelerite. Handbook of Mineralogy. Mineralogical Society of America
  4. 2019Grey, Ian E., Mumme, W. Gus, Downes, Peter J., Grguric, Benjamin A., Gable, Robert W. (2019) Segelerite from the Mount Deverell variscite deposit, Western Australia. Hydrogen bonding and relationship to jahnsite. European Journal of Mineralogy, 31 (3) 465-471 doi:10.1127/ejm/2019/0031-2829DOI: 10.1127/ejm/2019/0031-2829
