Potassic-jeanlouisite

K(NaCa)(Mg4Ti)Si8O22O2
IMA status
  • Approved
IMA symbol
Pjl
IMA approved
2018
Also known as
  • IMA2018-050
  • Potassic-jeanlouisiet

Where it forms, where it's found

Type locality
Zirkel Mesa
  1. Leucite Hills Mining District
  2. Sweetwater County
  3. Wyoming
  4. USA

41.7917°, -108.9256°

2recorded occurrences
Source · OpenStreetMap

Physical

Colour
Pale-yellow to colourless
Streak
White
Cleavage
Distinct/Good

(110)

Optical

Optical type
Biaxial (-) · 2V measured = 79° · 2V calc = 79.8°
Refractive index
1.674 – 1.698
Surface relief
High
Principal indices
nα 1.674 · nβ 1.688 · nγ 1.698
Pleochroism
Non-pleochroic
UV response
None
Notes

X˄a = 17deg (in β obtuse), Y||b, Z˄c = 3deg (in β acute)

Michel-Lévy diagramhighlighted lineδ = 0.0240
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]240 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation240 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 9.9372(10) Å · b = 18.010(2) Å · c = 5.2808(5) Å
Cell angles
β = 104.955(2) °
Ratio a:b:c
1 : 1.812 : 0.531
Unit cell volume
913.1 ų
Z
2
Type-locality form

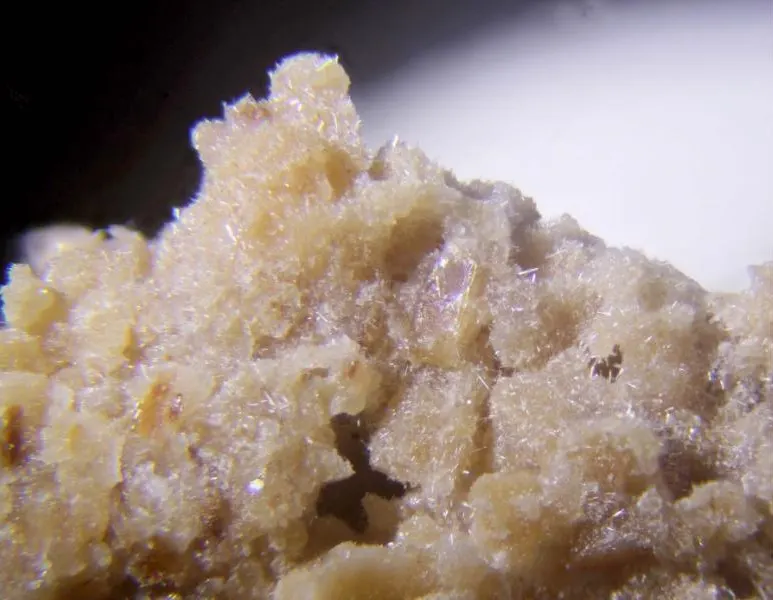

Pale yellow to colourless acicular crystals in small vugs

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2415.999383.976
44.86%
14SiSiliconSilicon828.085224.680
26.25%
12MgMagnesiumMagnesium424.30597.220
11.36%
22TiTitaniumTitanium147.86747.867
5.59%
20CaCalciumCalcium140.07840.078
4.68%
19KPotassiumPotassium139.09839.098
4.57%
11NaSodiumSodium122.99022.990
2.69%
Total855.909100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2018-050
  • Potassic-jeanlouisiet

In other languages

German
IMA 2018-050 · Kalium-Jeanlouisit
Italian
Potassic-jeanlouisite

Classification

Strunz
10th ed.

9.DE.25

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DEInosilicates with 2-periodic double chains, Si4O11; ClinoamphibolesGroup
  • 9.DE.25Potassic-jeanlouisiteSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 2018Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2018) CNMNC Newsletter 45, New minerals and nomenclature modifications approved in 2018. Mineralogical Magazine, 82 (5) 1225-1232 doi:10.1180/mgm.2018.160DOI: 10.1180/mgm.2018.160
  2. 2019Oberti, Roberta, Boiocchi, Massimo, Hawthorne, Frank C., Della Ventura, Giancarlo, Färber, Gunnar (2019) Potassic-jeanlouisite from Leucite Hill, Wyoming, USA, ideally K(NaCa)(Mg4Ti)Si8O22O2: the first species of oxo amphibole in the sodium–calcium subgroup. Mineralogical Magazine, 83 (4) 587-593 doi:10.1180/mgm.2019.38DOI: 10.1180/mgm.2019.38
  3. 2022(2022) Potassic-jeanlouisite. Handbook of Mineralogy. Mineralogical Society of America
