Pseudolaueite

Mn2+Fe3+2(PO4)2(OH)2 · 8H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Plae
Discovered
1956
Also known as
  • Pseudolaueiet

Where it forms, where it's found

Geological setting

Late stage crystallization of phosphates in a granite pegmatite

Late stage phosphate mineralization in granite pegmatite

Type locality
Hagendorf South Pegmatite
  1. Hagendorf
  2. Waidhaus
  3. Neustadt an der Waldnaab District
  4. Upper Palatinate
  5. Bavaria
  6. Germany

49.6503°, 12.4597°

14recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Orange-yellow to amber-yellow
Streak
White
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
2.463 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 80° · 2V calc = 80°
Refractive index
1.626 – 1.686
Surface relief
High
Principal indices
nα 1.626 · nβ 1.650 · nγ 1.686
Birefringence
0.060
Pleochroism
Weak

X = Y pale yellow, Z = yellow

Dispersion
weak
Extinction
Z=b, X^c = 2°, Y^a = 12°
UV response
Not fluorescent in UV
Michel-Lévy diagramhighlighted lineδ = 0.0600
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]600 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation600 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/a
Cell parameters
a = 9.59 Å · b = 7.42 Å · c = 10.16 Å
Cell angles
β = 104.43 °
Ratio a:b:c
1 : 0.774 : 1.059
Z
2
Morphology

Pseudohexagonal tablets, also nearly tabulat to slightly columnar

Type-locality form

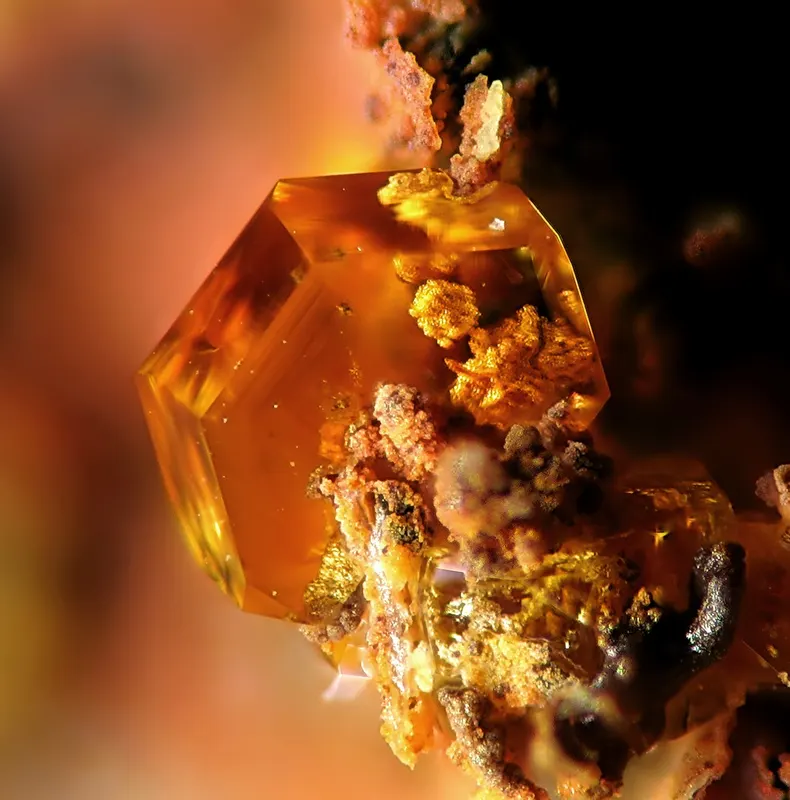

Amber-yellow pseudohexagonal plates.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1815.999287.982
53.86%
26FeIronIron255.845111.690
20.89%
15PPhosphorusPhosphorus230.97461.948
11.59%
25MnManganeseManganese154.93854.938
10.27%
1HHydrogenHydrogen181.00818.144
3.39%
Total534.702100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Pseudolaueiet

In other languages

German
Pseudolaueit
Italian
Pseudolaueite

Classification

Strunz
10th ed.

8.DC.30

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DCWith only medium-sized cations, (OH, etc.):RO4 = 1:1 and < 2:1Group
  • 8.DC.30PseudolaueiteSpecies
Dana
8th ed.

42.11.10.03

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.11(AB)3(XO4)2Zq·xH2OType
  • 42.11.10Laueite GroupGroup
  • 42.11.10.03PseudolaueiteSpecies
CIM

19.12.25

  • 19PhosphatesClass
  • 19.12Phosphates of MnGroup
  • 19.12.25PseudolaueiteSpecies

Group, growth & confusion

Often grow together
1 mineral
Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 1956Hamilton, Warren B., Neuerburg, George J. (1956) Olivine-sanidine trachybasalt from the Sierra Nevada, California. American Mineralogist, 41 (11-12) 851-873
  2. 1969Baur, Werner H. (1969) A comparison of the crystal structures of pseudolaueite and laueite. American Mineralogist, 54 (9-10) 1312-1323
  3. 1975Moore, P.B. (1975): Laueite, pseudolaueite, stewartite and metavauxite; a study in combinatorial polymorphism. Neues Jahrbuch für Mineralogie, Abhandlungen: 123: 148-159.
  4. 2000Aufschluss (2000): 51: 39-45.
  5. 2005(2005) Pseudolaueite. Handbook of Mineralogy. Mineralogical Society of America
