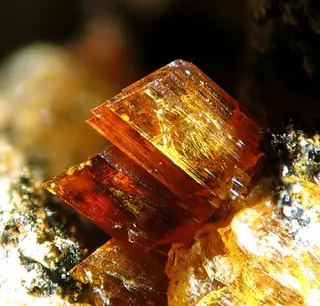

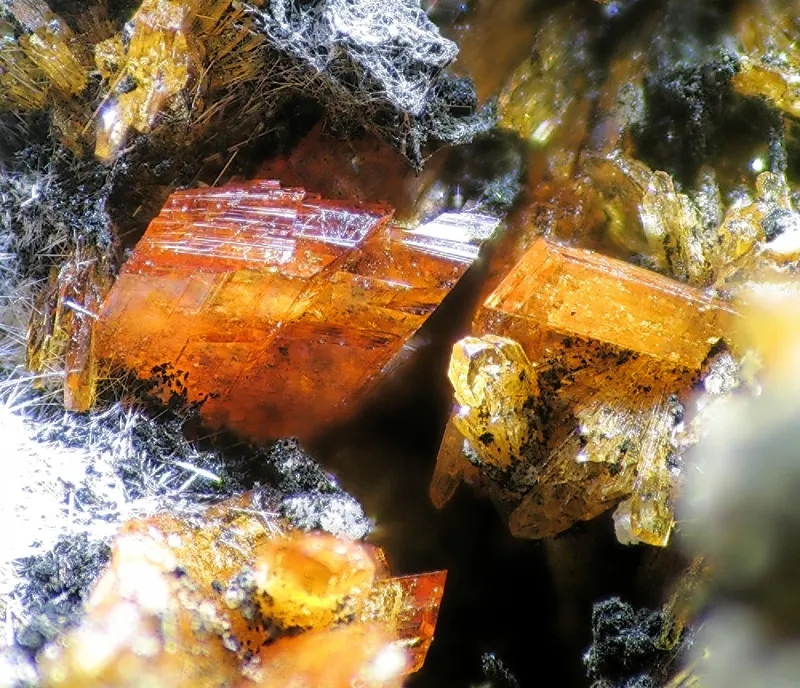

Laueite

Mn2+Fe3+2(PO4)2(OH)2 · 8H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Lae
Discovered
1954
Also known as
  • Laueiet

Where it forms, where it's found

Geological setting

Late stage hydrothermal mineral in oxidized triphylite bearing granitic pegmatites.

Type locality
Hagendorf South Pegmatite
  1. Hagendorf
  2. Waidhaus
  3. Neustadt an der Waldnaab District
  4. Upper Palatinate
  5. Bavaria
  6. Germany

49.6503°, 12.4597°

68recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Honey-brown · amber · yellow · dark yellow · yellow-orange · reddish orange
Streak
White
Tenacity
very brittle
Cleavage
Perfect

on (010)

Fracture
Irregular/Uneven · Sub-Conchoidal
Density
2.44 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 63 – 66° · 2V calc = 62°
Refractive index
1.588 – 1.682
Surface relief
Moderate
Principal indices
nα 1.588 – 1.603 · nβ 1.654 – 1.659 · nγ 1.68 – 1.682
Birefringence
0.075
Dispersion
r < v weak
UV response
Not fluorescent in UV
Michel-Lévy diagramhighlighted lineδ = 0.0750
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]750 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation750 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 5.28 Å · b = 10.66 Å · c = 7.14 Å
Cell angles
α = 107.91 ° · β = 110.98 ° · γ = 71.12 °
Ratio a:b:c
1 : 2.019 : 1.352
Z
1
Morphology

tabular prismatic crystals to 3mm, (100), (010), (001), (110), (110), (011) {011),

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1815.999287.982
53.86%
26FeIronIron255.845111.690
20.89%
15PPhosphorusPhosphorus230.97461.948
11.59%
25MnManganeseManganese154.93854.938
10.27%
1HHydrogenHydrogen181.00818.144
3.39%
Total534.702100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Laueiet

In other languages

German
Laueit
Spanish
Laueíta
Italian
laueite

Classification

Strunz
10th ed.

8.DC.30

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DCWith only medium-sized cations, (OH, etc.):RO4 = 1:1 and < 2:1Group
  • 8.DC.30LaueiteSpecies
Dana
8th ed.

42.11.10.01

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.11(AB)3(XO4)2Zq·xH2OType
  • 42.11.10Laueite GroupGroup
  • 42.11.10.01LaueiteSpecies
CIM

19.12.24

  • 19PhosphatesClass
  • 19.12Phosphates of MnGroup
  • 19.12.24LaueiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1954Fleischer, M. (1954) New mineral names. American Mineralogist, 39 (11-12). 1037-1040
  2. 1954Strunz, H. (1954) Laueit, MnFe3+2[OH|PO4]2·8H2O, ein neues Mineral. Die Naturwissenschaften, 41 (11). 256 doi:10.1007/bf00634947DOI: 10.1007/bf00634947
  3. 1965Moore, Paul B. (1965) The crystal structure of laueite, Mn2+Fe3+2(OH)2(PO4)2(H2O)6·2H2O. American Mineralogist, 50 (11-12) 1884-1892
  4. 1969Baur, Werner H. (1969) A comparison of the crystal structures of pseudolaueite and laueite. American Mineralogist, 54 (9-10) 1312-1323
  5. 1975Moore, P.B. (1975): Laueite, pseudolaueite, stewartite and metavauxite; a study in combinatorial polymorphism. Neues Jahrbuch für Mineralogie, Abhandlungen: 123: 148-159.
