Pumpellyite-(Al)

Ca2Al3(Si2O7)(SiO4)(OH,O)2 · H2O
IMA status
  • Approved
IMA symbol
Pmp-Al
IMA approved
2005
Also known as
  • IMA2005-016
  • Pumpellyiet-(Al)

Where it forms, where it's found

Geological setting

veins cutting retrograde metamorphosed sedimentary rocks

Type locality
La Flèche quarry
  1. Bertrix
  2. Luxembourg
  3. Wallonia
  4. Belgium

49.8756°, 5.2281°

12recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Emerald-green to white · sometimes with bluish tinges
Tenacity
brittle
Cleavage
Perfect

(100)

Density
3.41 g/cm³

Optical

Optical type
Biaxial (+) · 2V calc = 46°
Refractive index
1.678 – 1.691
Surface relief
High
Principal indices
nα 1.678 · nβ 1.680 · nγ 1.691
Michel-Lévy diagramhighlighted lineδ = 0.0130
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]130 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation130 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 8.818(2) Å · b = 5.898(2) Å · c = 19.126(6) Å
Cell angles
β = 97.26(3) °
Ratio a:b:c
1 : 0.669 : 2.169
Z
4
Morphology

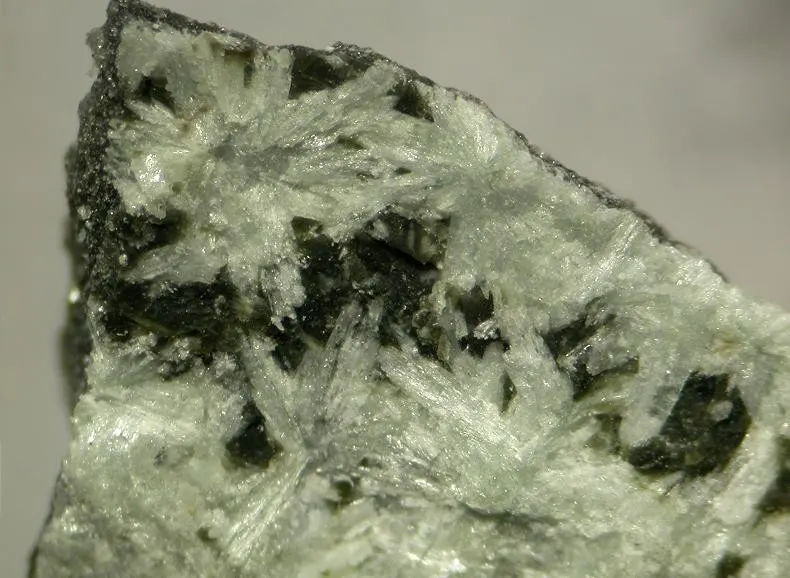

radial aggregates of acicular prismatic crystals to 5 mm

Comment

Non-standard space group A2/m.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1615.999255.984
50.65%
14SiSiliconSilicon328.08584.255
16.67%
13AlAluminiumAluminium326.98280.946
16.02%
20CaCalciumCalcium240.07880.156
15.86%
1HHydrogenHydrogen41.0084.032
0.80%
Total505.373100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2005-016
  • Pumpellyiet-(Al)

In other languages

German
IMA 2005-016 · Pumpellyit-(Al)
Italian
pumpellyite-(Al)

Classification

Strunz
10th ed.

9.BG.20

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BGSorosilicates with mixed SiO4 and Si2O7 groups; cations in octahedral [6] and greater coordinationGroup
  • 9.BG.20Pumpellyite-(Al)Species

Group, growth & confusion

Literature, links & citation

Citations
  1. 1973Passaglia, Elio, Gottardi, Glauco (1973) Crystal chemistry and nomenclature of pumpellyites and julgoldites. The Canadian Mineralogist, 12 (3) 219-223
  2. 1985Yoshiasa, Akira, Matsumoto, Takeo (1985) Crystal structure refinement and crystal chemistry of pumpellyite. American Mineralogist, 70 (9-10) 1011-1019
  3. 2006Nagashima, Mariko, Ishida, Takahiro, Akasaka, Masahide (2006) Distribution of Fe among octahedral sites and its effect on the crystal structure of pumpellyite. Physics and Chemistry of Minerals, 33 (3) 178-191 doi:10.1007/s00269-006-0066-1DOI: 10.1007/s00269-006-0066-1
  4. 2007Hatert, Frédéric, Pasero, Marco, Perchiazzi, Natale, Theye, Thomas (2007) Pumpellyite-(Al), a new mineral from Bertrix, Belgian Ardennes. European Journal of Mineralogy, 19 (2) 247-253 doi:10.1127/0935-1221/2007/0019-1720DOI: 10.1127/0935-1221/2007/0019-1720
  5. 2010Nagashima, Mariko, Akasaka, Masahide, Ikeda, Ko, Kyono, Atsushi, Makino, Kuniaki (2010) X-ray single-crystal and optical spectroscopic study of chromian pumpellyite from Sarany, Urals, Russia. Journal of Mineralogical and Petrological Sciences, 105 (4) 187-193 doi:10.2465/jmps.090717b DOI: 10.2465/jmps.090717b
