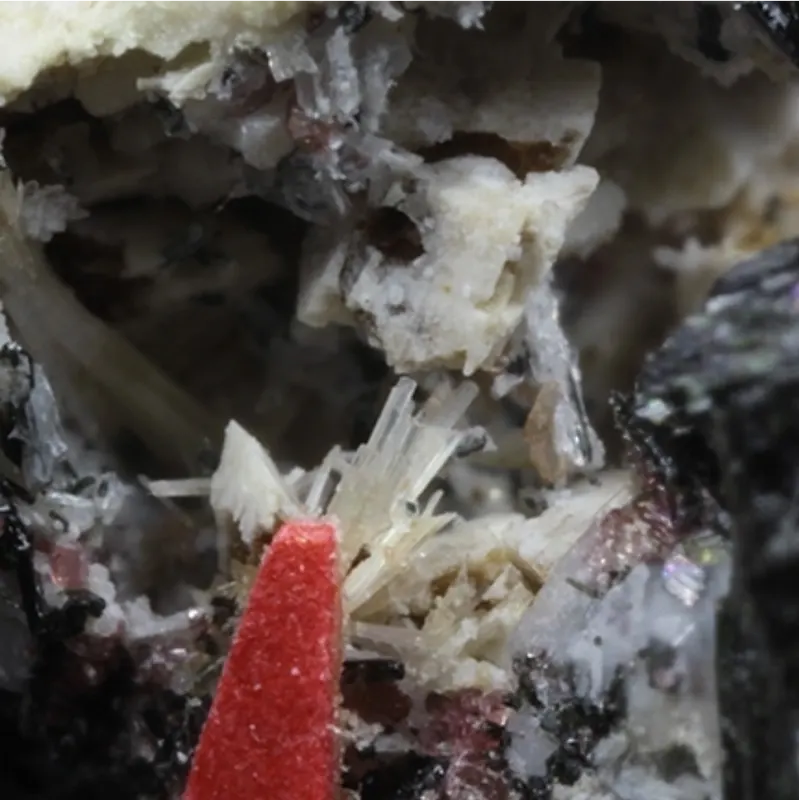

Pyatenkoite-(Y)

Na5YTiSi6O18 · 6H2O
IMA status
  • Approved
IMA symbol
Pyt-Y
Also known as
  • IMA1995-034
  • Pyatenkoiet-(Y)

Where it forms, where it's found

Geological setting

hyperagpaitic pegmatites

Type locality
Alluaiv Mountain
  1. Lovozersky District
  2. Murmansk Oblast
  3. Russia

67.8645°, 34.5124°

3recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104 – 5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent
Colour
Colourless
Streak
white
Cleavage
Distinct/Good

moderate (0112)

Density
2.68 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.607 – 1.612
Surface relief
Moderate
Principal indices
nω 1.612 · nε 1.607
Pleochroism
Non-pleochroic
Michel-Lévy diagramhighlighted lineδ = 0.0050
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]50 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation50 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#93
Cell parameters
a = 10.696(5) Å · c = 15.728(6) Å
Z
3
Type-locality form

well-formed rhombohedral crystals, typically 0.2–0.5 mm across

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2415.999383.976
47.04%
14SiSiliconSilicon628.085168.510
20.64%
11NaSodiumSodium522.990114.950
14.08%
39YYttriumYttrium188.90688.906
10.89%
22TiTitaniumTitanium147.86747.867
5.87%
1HHydrogenHydrogen121.00812.096
1.48%
Total816.305100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1995-034
  • Pyatenkoiet-(Y)

In other languages

German
IMA 1995-034 · Pyatenkoit-(Y)
Italian
Pyatenkoite- · Pyatenkoite-(Y)

Classification

Strunz
10th ed.

9.DM.10

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DMInosilicates with 6-periodic single chainsGroup
  • 9.DM.10Pyatenkoite-(Y)Species

Group, growth & confusion

In the same group

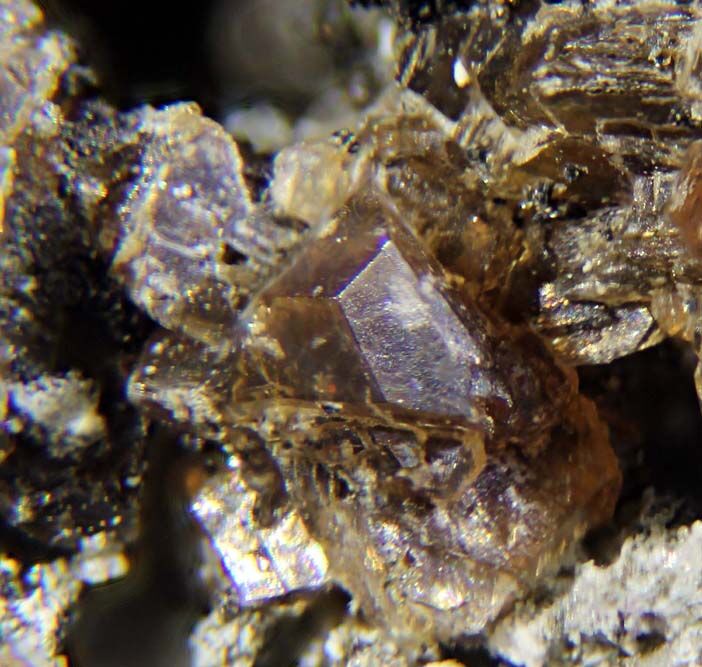

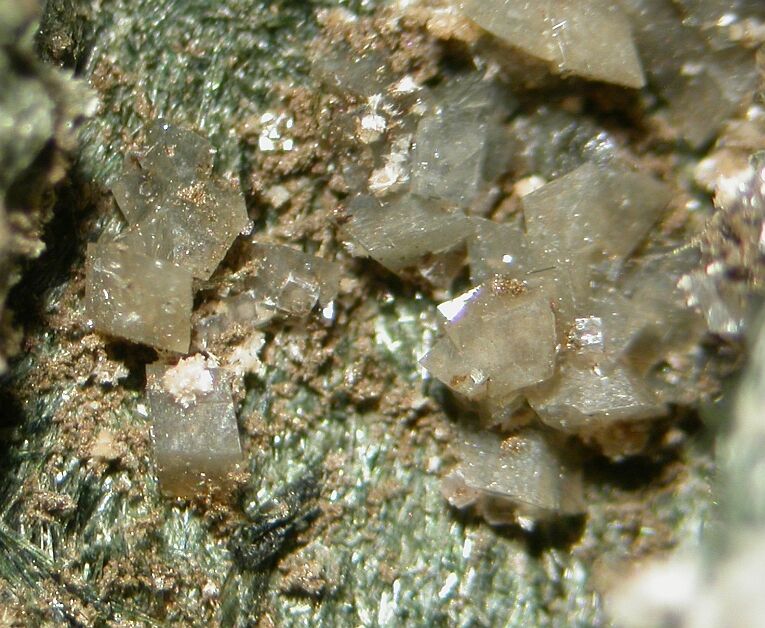

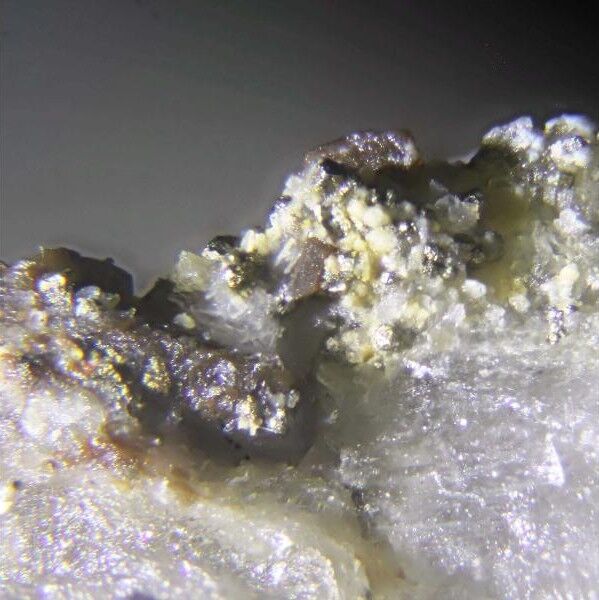

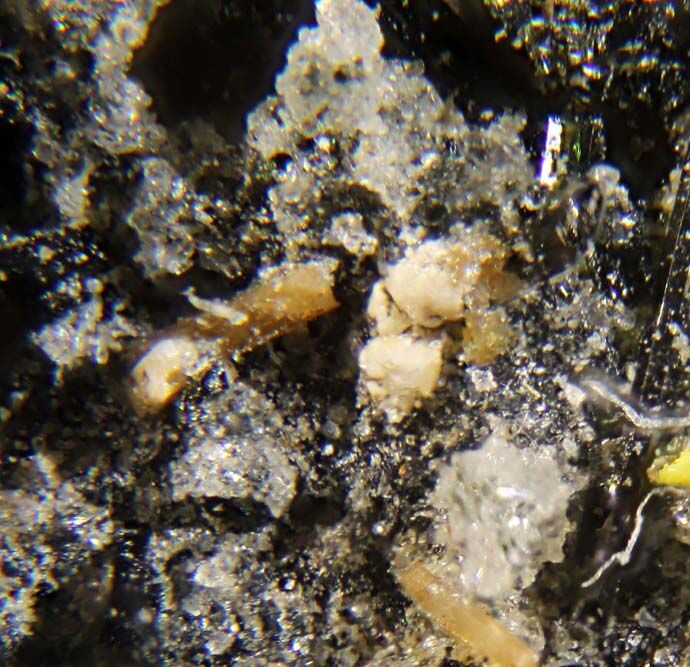

4 members

Literature, links & citation

Citations
  1. 1996Rastsvetaeva, R.K., Khomyakov, A.P. (1996) Pyatenkoite-(Y) Na5YTiSi6O18·6H2O, a new mineral of the hilairite group: crystal structure. Doklady Chemistry: 351: 283-286.
  2. 1996Khomyakov, A. P., Nechelyustov, G. N., Rastsetaeva, R. K. (1996) Pyatenkoite-(Y) Na5(Y,Dy,Gd)TiSi6O18·6H2O – a new mineral. Zapiski Vserossijskogo Mineralogicheskogo Obshchestva, 125 (4) 72-79
  3. 1997Mandarino, Joseph A. (1997) Abstracts of New Mineral Descriptions. The Mineralogical Record, 28 (3) 219-224
  4. 1997Jambor, J.L., Puziewicz, J., Roberts, A.C. (1997) New mineral names. American Mineralogist: 82: 620-624.
