Schizolite

NaCaMnSi3O8(OH)
IMA status
  • Approved
IMA symbol
Szl
IMA approved
2019
Also known as
  • IMA2013-067
  • Schizoliet

Where it forms, where it's found

Geological setting

Alkaline intrusions and manganese ore deposit.

Type locality
Tugtup Agtakôrfia
  1. Tunulliarfik Fjord
  2. Ilímaussaq complex
  3. Kujalleq
  4. Greenland

60.9303°, -45.9239°

14recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Pale red or pink to brownish
Tenacity
brittle
Fracture
Splintery
Density
3.09 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 71° · 2V calc = 40°
Refractive index
1.626 – 1.661
Surface relief
Moderate
Principal indices
nα 1.626 · nβ 1.630 · nγ 1.661
Pleochroism
Non-pleochroic
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.0350
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]350 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation350 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
P-1
Cell parameters
a = 7.7834(4) Å · b = 6.9373(4) Å · c = 6.8496(3) Å
Cell angles
α = 90.680(3) ° · β = 94.329(3) ° · γ = 102.854(3) °
Ratio a:b:c
1 : 0.891 : 0.880
Z
2
Type-locality form

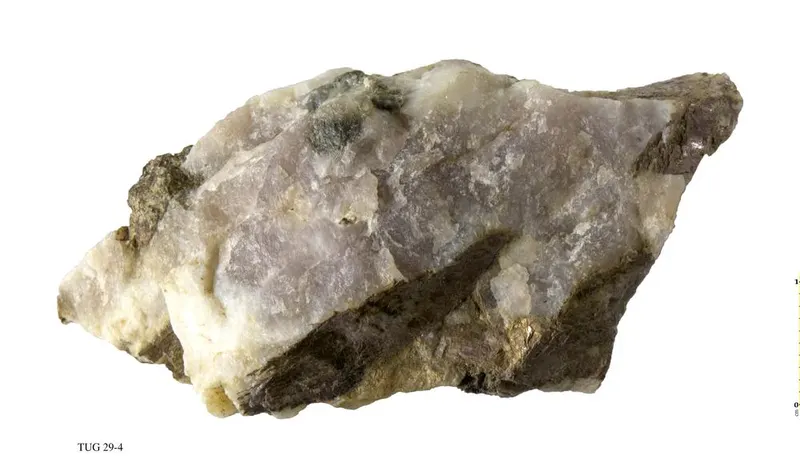

Pink blocky to somewhat bladed crystals.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen915.999143.991
41.47%
14SiSiliconSilicon328.08584.255
24.26%
25MnManganeseManganese154.93854.938
15.82%
20CaCalciumCalcium140.07840.078
11.54%
11NaSodiumSodium122.99022.990
6.62%
1HHydrogenHydrogen11.0081.008
0.29%
Total347.260100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2013-067
  • Schizoliet

In other languages

German
IMA 2013-067 · Schizolith
Spanish
Marshallsussmanita
Italian
marshallsussmanite

Classification

Strunz
10th ed.

9.DG.05

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DGInosilicates with 3-periodic single and multiple chainsGroup
  • 9.DG.05SchizoliteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1901Winther, Chr. (1901) Schizolite, a new mineral. Meddelelser om Grønland, 24. 196-203
  2. 1955Schaller, Waldemar T. (1955) The pectolite-schizolite-serandite series. American Mineralogist, 40 (11-12) 1022-1031
  3. 1978Ohashi, Yoshikazu, Finger, Larry W. (1978) The role of octahedral cations in pyroxenoid crystal chemistry. I. Bustamite, wollastonite, and the pectolite-schizolite-serandite series. American Mineralogist, 63 (3-4) 274-288
  4. 2013Williams, P. A., Hatert, F., Pasero, M., Mills, S. J. (2013) New minerals and nomenclature modifications approved in 2013. CNMNC Newsletter No 18. Mineralogical Magazine, 77 (8) 3249-3258 doi:10.1180/minmag.2013.077.8.15DOI: 10.1180/minmag.2013.077.8.15
  5. 2014Pohwat, Paul W. (2014) Connoisseur's Choice: Marshallsussmanite, Wessels mine, Kalahari Manganese Field, Northern Cape Province, South Africa. Rocks & Minerals, 89 (3) 258-260 doi:10.1080/00357529.2014.878184DOI: 10.1080/00357529.2014.878184
