Sharyginite

Ca3TiFe2O8
IMA status
  • Approved
IMA symbol
Syg
IMA approved
2017
Also known as
  • IMA2017-014
  • Sharyginiet

Where it forms, where it's found

Geological setting

Metacarbonate xenoliths in alkali basalt

Type locality
Caspar quarry
  1. Ettringen
  2. Vordereifel
  3. Mayen-Koblenz
  4. Rhineland-Palatinate
  5. Germany

50.3525°, 7.2335°

9recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Dark brown
Streak
Brown
Tenacity
brittle
Cleavage
Distinct/Good

Good on (010) and imperfect along (001) and (100).

Fracture
Irregular/Uneven
Density
3.943 g/cm³

Optical

Pleochroism
Weak

Grey to very light grey

Optical colour
Light grey
Anisotropism
Weak
Internal reflections
Yellowish-brown (rare)
Tropism
Anisotropic
Reflectance R%
(16.1, 15.5) 470, (14.9, 14.2) 546, (14.6, 14.1) 589, (14.5, 13.9) 650
Reflected-light panel
15.0 %anisotropic · dual curve
Specimen sRGB 142, 100, 56
White reference100 % reflector under same lamp
R₁ R₂
Mode
Anisotropism
Weak
Reflected colour
Light grey
Internal reflections
Yellowish-brown (rare)

Crystallography

Crystal system
Orthorhombic
Space group
#32
Cell parameters
a = 5.423(2) Å · b = 11.150(8) Å · c = 5.528(2) Å
Ratio a:b:c
1 : 2.056 : 1.019
Unit cell volume
334.3 ų
Z
2
Morphology

Pinacoids (100), (010) and (001). Crystals are flattened on (010).

Type-locality form

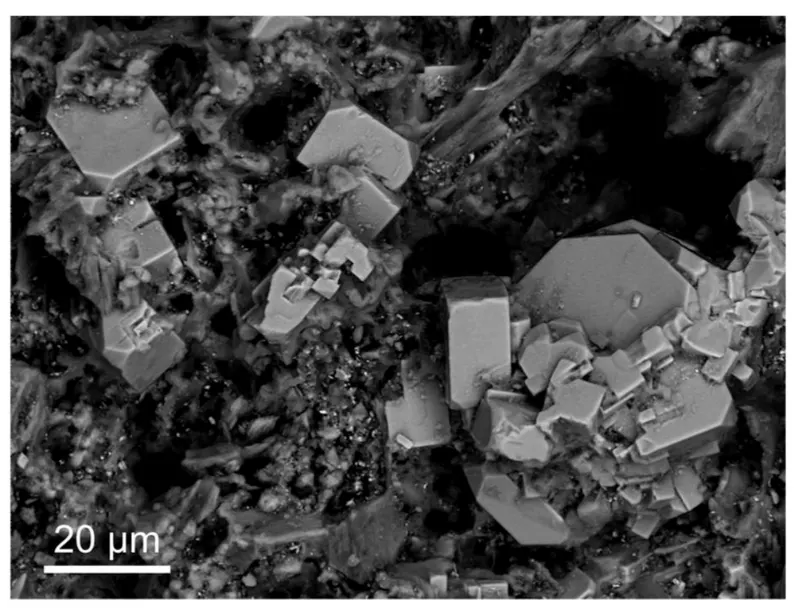

Flat crystals up to 100 µm in length.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen815.999127.992
31.39%
20CaCalciumCalcium340.078120.234
29.48%
26FeIronIron255.845111.690
27.39%
22TiTitaniumTitanium147.86747.867
11.74%
Total407.783100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2017-014
  • Sharyginiet

In other languages

German
IMA 2017-014 · Sharyginit
Italian
Sharyginite

Classification

Strunz
10th ed.

4.AC.10

  • 4OxidesClass
  • 4.AMetal: Oxygen = 2:1 and 1:1Division
  • 4.ACM:O = 1:1 (and up to 1:1.25); with large cations (+- smaller ones)Group
  • 4.AC.10SharyginiteSpecies

Group, growth & confusion

In the same group
4 members

Literature, links & citation

Citations
  1. 2017Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2017) New minerals and nomenclature modifications approved in 2017, CNMNC Newsletter No 37. Mineralogical Magazine, 81 (3) 737-742 doi:10.1180/minmag.2017.081.039DOI: 10.1180/minmag.2017.081.039
  2. 2018Juroszek, Rafał, Krüger, Hannes, Galuskina, Irina, Krüger, Biljana, Jeżak, Lidia, Ternes, Bernd, Wojdyla, Justyna, Krzykawski, Tomasz, Pautov, Leonid, Galuskin, Evgeny (2018) Sharyginite, Ca3TiFe2O8, A New Mineral from the Bellerberg Volcano, Germany. Minerals, 8 (7) 308 doi:10.3390/min8070308 DOI: 10.3390/min8070308
  3. 2020(2020) Sharyginite. Handbook of Mineralogy. Mineralogical Society of America
