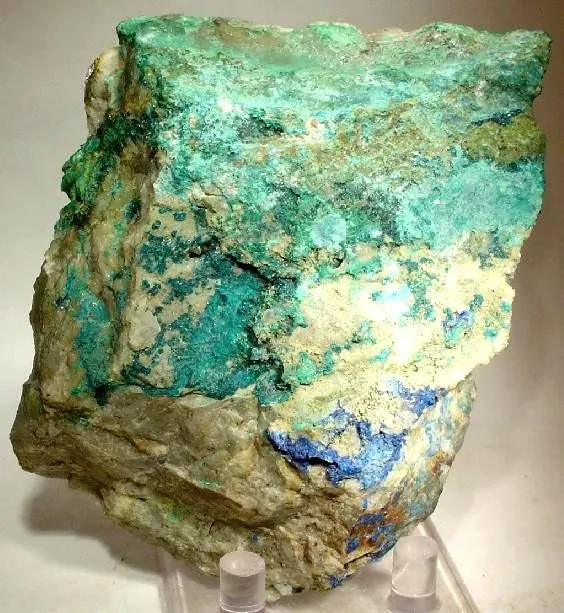

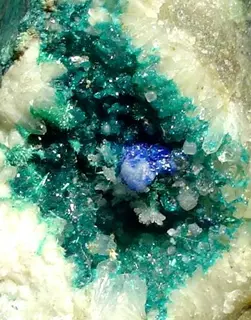

Spangolite

Cu6Al(SO4)(OH)12Cl · 3H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Spg
Discovered
1890
Also known as
  • Spangoliet

Where it forms, where it's found

Geological setting

Secondary mineral with other copper secondaries.

Oxidized zones of copper-bearing ore bodies.

117recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent · Translucent
Colour
Dark to emerald green · blue-green · light green in transmitted light.
Streak
Pale green
Tenacity
brittle
Cleavage
Perfect

On (0001), perfect. On (1011), (0111): distinct.

Fracture
Conchoidal
Density
3.135 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.627 – 1.687
Surface relief
High
Principal indices
nω 1.680 – 1.687 · nε 1.627 – 1.641
Pleochroism
Weak

Dichroic: O = Green E = Bluish green

Michel-Lévy diagramhighlighted lineδ = 0.0495
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]495 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation495 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#81
Cell parameters
a = 8.24 Å · c = 14.34 Å
Z
2
Morphology

Crystals frequently holohedral in aspect; either short prismatic [0001] or, more commonly, tabular (0001). Less commonly hemimorphic with large (0001) and tapering toward the antilogous pole. The prism and trigonal pyramid faces are horizontally striated with series of trigonal pyramids and prisms in oscillatory combination. The geometrically equivalent positive and negative trigonal pyramids are seemingly always equally developed, rendering a hexagonal appearance to the crystal.

Twinning

On (0001), rare, with the acute (antilogous) poles of the two individuals joined together.

Type-locality form

Equant to tabular barrel-shaped crystals.

Comment

Cell parameters are variable: a = 8.245-8.278 A, c = 14.32-14.53 A

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
29CuCopperCopper663.546381.276
47.79%
8OOxygenOxygen1915.999303.981
38.10%
17ClChlorineChlorine135.45035.450
4.44%
16SSulfurSulfur132.06032.060
4.02%
13AlAluminiumAluminium126.98226.982
3.38%
1HHydrogenHydrogen181.00818.144
2.27%
Total797.893100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Spangoliet

In other languages

German
Spangolith
Spanish
Spangolita
Italian
Spangolite

Classification

Strunz
10th ed.

7.DD.15

  • 7SulfatesClass
  • 7.DSulfates (selenates, etc.) with additional anions, with H2ODivision
  • 7.DDWith only medium-sized cations; sheets of edge-sharing octahedraGroup
  • 7.DD.15SpangoliteSpecies
Dana
8th ed.

31.01.05.01

  • 31Hydrated Sulfates Containing Hydroxyl or HalogenClass
  • 31.01(AB)m(XO4)pZq·xH2O, where m:p > 6:1Type
  • 31.01.05— unnamed intermediate level —Group
  • 31.01.05.01SpangoliteSpecies
CIM

26.8

  • 26Sulphates with HalideClass
  • 26.8— unnamed intermediate level —Group
  • 26.8SpangoliteSpecies

Group, growth & confusion

Often grow together
2 minerals

Literature, links & citation

Citations
  1. 1890Penfield, S.L. (1890) On spangolite, a new copper mineral. American Journal of Science, 3rd. series: 39: 370-378.
  2. 1892Dana, Edward Salisbury; Dana, James Dwight (1892) A System of Mineralogy (6th ed.). John Wiley & Sons, Inc.
  3. 1893Miers, H. A. (1893) Spangolite, a Remarkable Cornish Mineral. Nature, 48 (1244) 426-427 doi:10.1038/048426b0DOI: 10.1038/048426b0
  4. 1894Miers, H. A. (1894) Spangolite. Mineralogical Magazine and Journal of the Mineralogical Society, 10 (48) 273-277 doi:10.1180/minmag.1894.010.48.02 DOI: 10.1180/minmag.1894.010.48.02
  5. 1909Pelloux (1909) Ann. Mus. Civico Stor. Nat. Genova: 4: [3a]: 194.
