Steacyite

K0.3(Na,Ca)2ThSi8O20
IMA status
  • Approved
IMA symbol
Scy
Discovered
1981
IMA approved
1981
Also known as
  • IMA1981-E
  • Unnamed (MSH UK-4)

Where it forms, where it's found

Geological setting

In pegmatite veins in nepheline syenite.

Type locality
Poudrette quarry (De-Mix quarry
  1. Demix quarry
  2. Uni-Mix quarry
  3. Carrière Mont Saint-Hilaire
  4. MSH)
  5. Mont Saint-Hilaire
  6. La Vallée-du-Richelieu RCM
  7. Montérégie
  8. Québec
  9. Canada

45.5628°, -73.1417°

9recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent · Opaque
Colour
Gray · dark brown · green · beige
Cleavage
None Observed
Density
2.95 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.572 – 1.573
Surface relief
Moderate
Principal indices
nω 1.573 · nε 1.572
Michel-Lévy diagramhighlighted lineδ = 0.0010
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]10 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation10 nm
Order1st order
XPL colour

Crystallography

Crystal system
Tetragonal
Space group
P4/mcc
Cell parameters
a = 7.58 Å · c = 14.76 Å
Morphology

Prismatic habit, elongated along [001] and showing the forms (100) and (001) which may occasionally also display the form (110), is the most common. A more rare habit is a dipyramidal habit showing (100), {001) and (101).

Twinning

Cruciform, by 90° rotation about [010].

Type-locality form

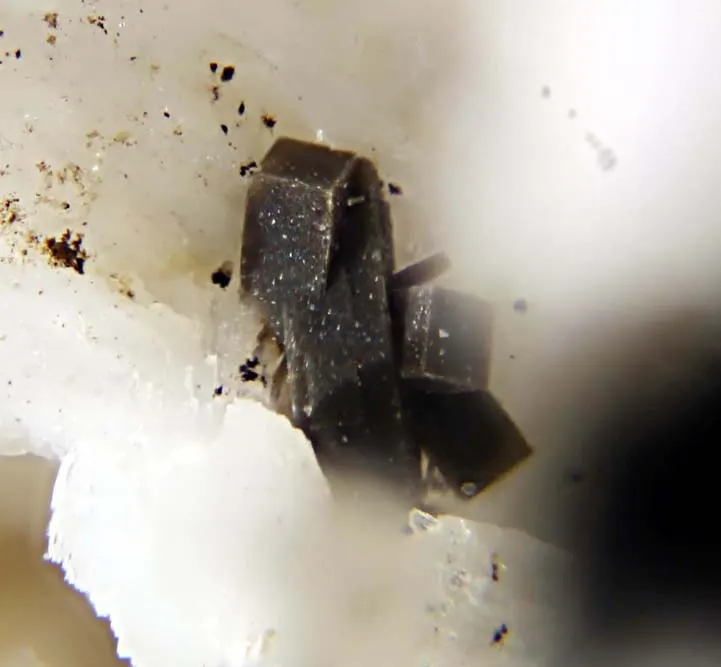

Elongated crystals to 2 mm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2015.999319.980
34.99%
90ThThoriumThorium1232.038232.038
25.37%
14SiSiliconSilicon828.085224.680
24.57%
20CaCalciumCalcium240.07880.156
8.76%
11NaSodiumSodium222.99045.980
5.03%
19KPotassiumPotassium0.339.09811.729
1.28%
Total914.563100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • As
  • Mn
  • Pb
  • F
  • P

Synonyms

  • IMA1981-E
  • Unnamed (MSH UK-4)

In other languages

German
IMA 81-E · Steacyit
Spanish
Steacyita
Italian
Steacyite
Chinese
斯硅钾钍钙石

Classification

Strunz
10th ed.

9.CH.10

  • 9SilicatesClass
  • 9.CCyclosilicatesDivision
  • 9.CH[Si4O12]8- 4-membered double ringsGroup
  • 9.CH.10SteacyiteSpecies
Dana
8th ed.

63.01.01.01

  • 63Cyclosilicates Condensed RingsClass
  • 63.01Condensed Rings (Steacyite group)Type
  • 63.01.01Steacyite GroupGroup
  • 63.01.01.01SteacyiteSpecies
CIM

14.16.15

  • 14Silicates not Containing AluminumClass
  • 14.16Silicates of UGroup
  • 14.16.15SteacyiteSpecies

Group, growth & confusion

In the same group
3 members
Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1973Chromy, B. (1973) The wee crystals. Earth Science: 1973: 227-278. [see http://www.mindat.org/mesg-6-367561.html]
  2. 1982Szymański, J. T., Owens, D. R., Roberts, A. C., Ansell, H. G., Chao, G. Y. (1982) A mineralogical study and crystal structure determination of nonmetamict ekanite ThCa2Si8O20. The Canadian Mineralogist, 20 (1) 65-75
  3. 1982Perrault, G., Szymański, J. T. (1982) Steacyite, a new name and a re-evaluation of the nomenclature of "ekanite"-group minerals. The Canadian Mineralogist, 20 (1) 59-63
  4. 2001(2001) Steacyite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2025Stachowicz, M.; Bagiński, B.; Harlov, D. E.; Jokubauskas, P.; Kotowski, J.; Matyszczak, W.; Dąbrowska, A.; Macdonald, R. (2025) Multidisciplinary study of thorium mobility: formation of turkestanite and steacyite analogues, and structural insights using an XRD-directed microcrystal preparation technique. Acta Crystallographica Section B Structural Science, Crystal Engineering and Materials, 81 (4). 418-426 doi:10.1107/s2052520625004822DOI: 10.1107/s2052520625004822
Cite this entry
@misc{mineral2026,
  author    = {Mineral Index editorial board},
  title     = {Steacyite — Mineral Index},
  year      = {2026},
  url       = {https://mineralindex.org/minerals/steacyite-3754},
  note      = {Accessed 2026-05-11}
}
